1-6 (No.HC034<Rev.001>)

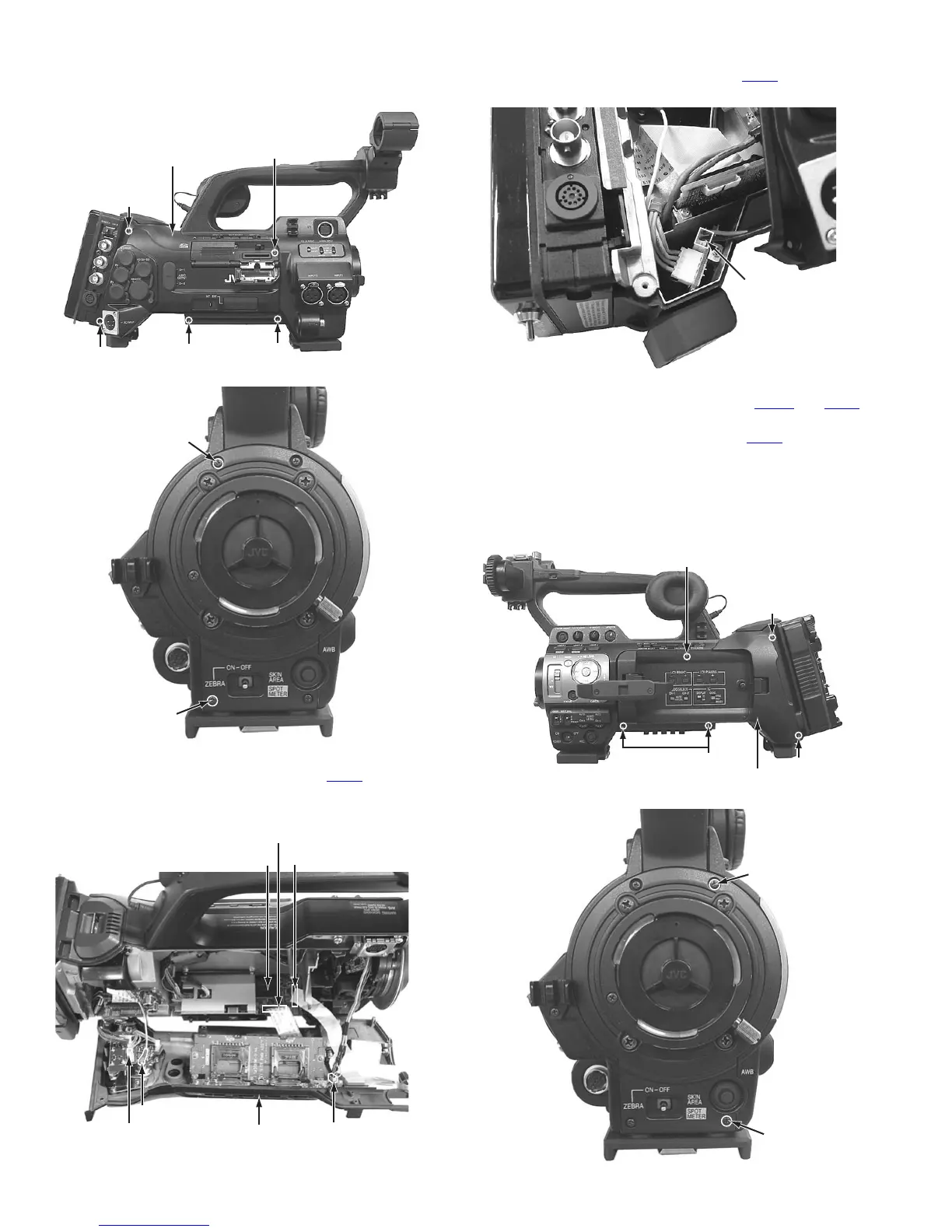

(3) Remove the two screws (S1), two screws (S11) and three
screws (S2) attaching the left side cover assembly.
Fig.4
Fig.5
(4) Disconnect the wire from the connector CN84
on the BNC
board.
(5) Disconnect the wire from the HD/SD terminal.
Fig.6
(6) Disconnect the wire from the connector CN93 on the ECAP
board.
Fig.7
(7) Disconnect the wires from the connectors CN34
and CN13
on the CODEC board.
(8) Disconnect the wire from the connector CN43
on the LINE
SEL board, then remove the left side cover assembly.
3.2.2 Removing the right side cover assembly (See figure
8, figure 9 and figure 10)
(1) Remove the five screws (S1) and two screws (S11) attach-
ing the right side cover assembly.
Fig.8
Fig.9
Left side cover assembly
(S2)
(S1)
(S2)
(S2)
(S1)
(S11)
(S11)
CODEC Board
Left side cover assembly
CN34
CN13
HD/SD Terminal
CN43
LINE SEL Board
CN84
BNC Board
CN93
ECAP Board
(S1)
(S1)
(S1)
(S1)
Right side cover assembly
(S11)
(S11)

JVC GY-HM790U Specifications

General

Sensor type	CCD
Total megapixels	- MP
Optical sensor size	1/3 \
Digital zoom	- x
Optical zoom	14 x
Image stabilizer	No
Focal length range	4.4 - 61.6 mm
Interchangeable lens	Yes
Focal length (35mm film equivalent)	32 - 448 mm
Camcorder media type	Memory card
Compatible memory cards	SDHC
Internal storage capacity	- GB
Built-in flash	-
Display diagonal	4.3 \
Display resolution	800 x 480 pixels
Display resolution (numeric)	410000 pixels
Viewfinder resolution	1226000 pixels
Viewfinder screen size	0.45 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 576i, 720p
Video formats supported	MPEG2
Maximum video resolution	1920 x 1080 pixels
Bitrate at maximum video resolution	35 Mbit/s
Maximum image resolution	- pixels
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	30 - 80 %

Weight and Dimensions

Weight	3.7 g
