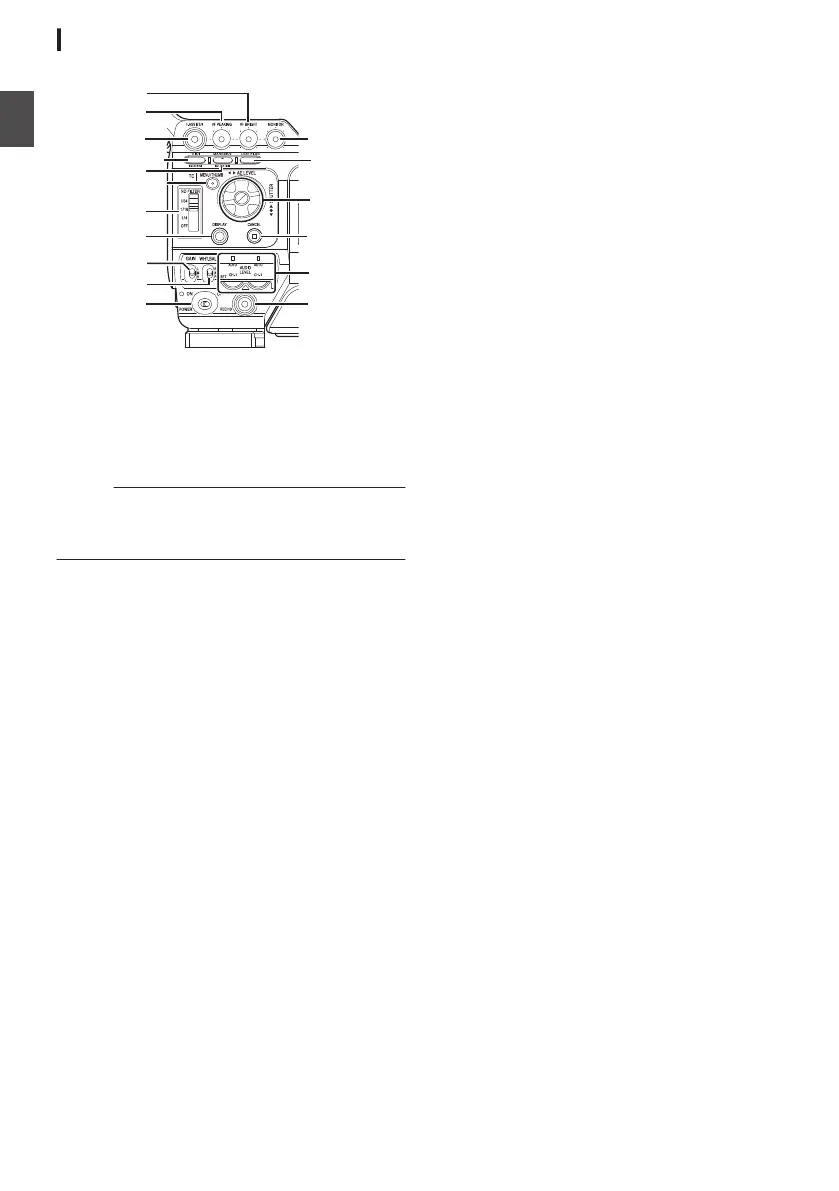

Side Control Panel
.
M
N
O
L
A
B
F
G
H
J
K
I
E
P
Q
D
C
A
[VF BRIGHT] Viewfinder Brightness
Adjustment Knob
(A P40 [Adjusting the Viewfinder] )
B
[VF PEAKING] Outline Adjustment Knob
(A P40 [Adjusting the Viewfinder] )
Memo :
0
This knob is disabled when Focus Assist is in
operation.
(A P55 [Focus Assist Function] )
C
[F.ASSIST/4] Focus Assist/User 4 Button
For switching the focus assist function ON or
OFF.
(A P55 [Focus Assist Function] )
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P42 [Assignment of Functions to User
Buttons] )
D
[OIS/1] Optical Image Stabilizer/User 1 Button
For switching the image stabilizer feature mode
ON or OFF. F
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P42 [Assignment of Functions to User
Buttons] )
E
[MARKER/2] Marker/User 2 Button
This button toggles ON/OFF the marker, safety
zone, and center mark displays.
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P154 [Marker and Safety Zone Displays] )
(A P42 [Assignment of Functions to User
Buttons] )
F
[MENU/THUMB] Menu/Thumbnail Button
0
Displays the menu screen during Camera
mode.
0
Switches between [Main Menu] and
[Favorites Menu] when the [MENU/
THUMB] button is pressed and held down
while the menu screen is displayed.
(A P103 [Basic Operations in Menu Screen] )
0
Displays the menu screen when the button
is pressed during thumbnail display in the
Media mode.
0
Stops playback and displays the thumbnail
screen when the button is pressed during
playback screen display in the Media mode.
G
[ND FILTER] ND Filter Switch
(A P62 [Setting the ND Filter] )
H
[DISPLAY] Display Button
0
Press the [DISPLAY] button to switch to the
display screen during normal screen display
(when the menu screen is not displayed).
(A P36 [Display Screen] )
0
Switches between [Main Menu] and
[Favorites Menu] when the [DISPLAY]
button is pressed while the menu screen is
displayed.
(A P103 [Basic Operations in Menu Screen] )
I
[GAIN L/M/H] Gain Level Switch
(A P59 [Setting the Gain] )
J
[WHT.BAL B/A/PRESET] White Balance
Switch
(A P63 [Adjusting the White Balance] )
K
[POWER ON/OFF] Power ON/OFF Switch and
Indicator Lamp
Turns ON/OFF the power. The indicator lamp
lights up in green when the power is on.
When the power is OFF, “POFF” appears on the
LCD monitor and viewfinder.
Wait for 5 seconds or more to turn on the power
again.
L
[REC/10] Record Trigger/User 10 Button
Starts/stops recording.
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P42 [Assignment of Functions to User
Buttons] )
M
[AUDIO LEVEL CH-1/CH-2]/[AUTO]CH-1/
CH-2 Recording Level Adjustment Knob/Auto
Indicator Lamp
(A P69 [Audio Recording] )
N
[CANCEL] Cancel Button
Cancels various settings and stops playback.
