11
EN
INTRODUCTION
PREPARATION
WATCHING TV
OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING
INFORMATION
English

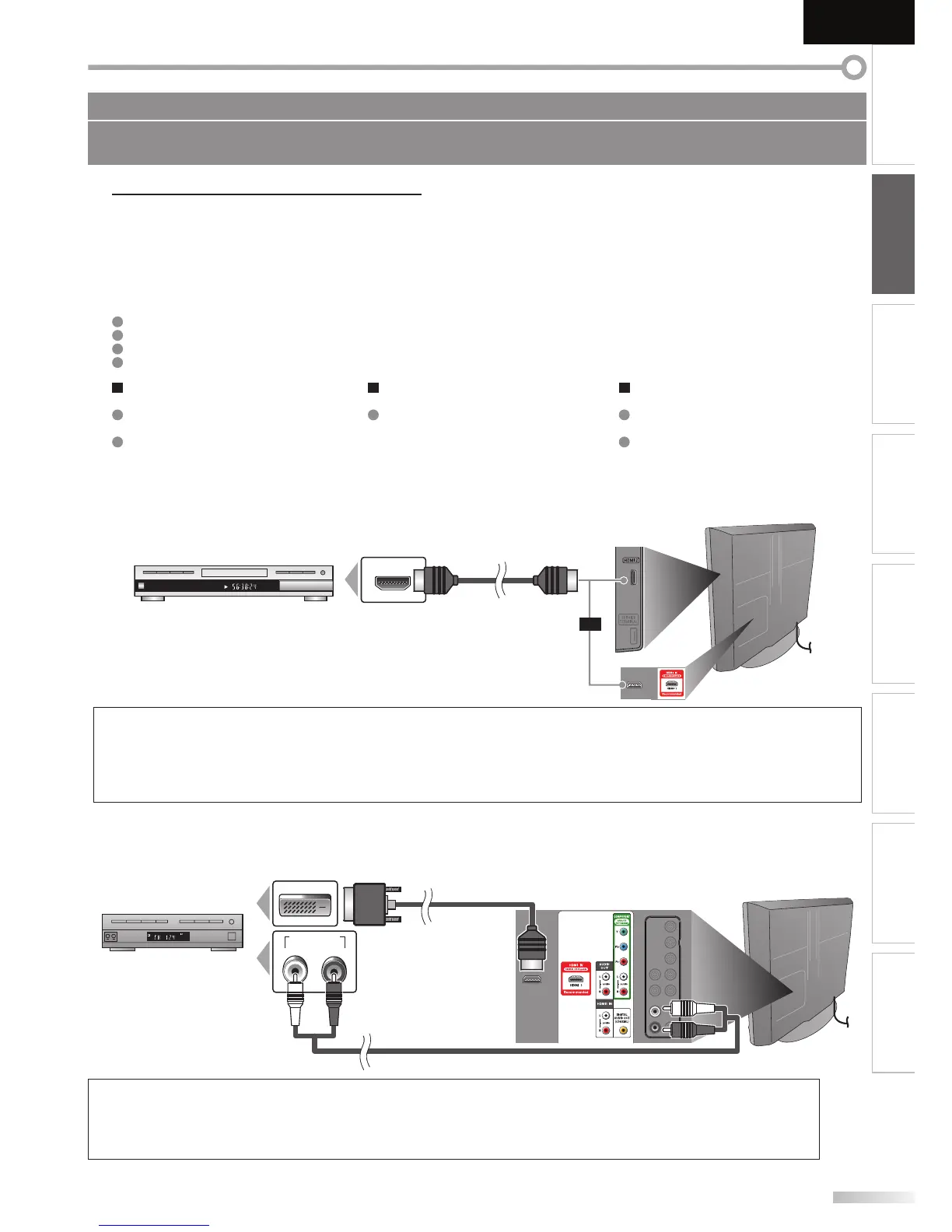

5 External Device Connection
[HDMI Connection]
HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high
definition video and multi-channel digital audio through a single cable.
HDMI CEC (Consumer Electronics Control) allows the TV to connect and control multiple HDMI CEC enabled devices
with a single remote. CEC (Consumer Electronics Control) is an optional protocol used in HDMI.
HDMI CEC on this TV is compliant with “High-Definition Multimedia Interface Specification”.
The TV does not support HDMI CEC functions that are not listed below.
The TV does not guarantee to support use of all HDMI CEC enabled devices.
Devices that are not enabled to HDMI CEC cannot be controlled with this TV.
Control the TV using the HDMI CEC
enabled device
Turn the TV on and switch to the video
source of the operating device.
Switch to the video source of the
operating device.
Control the HDMI CEC enabled device
using the TV
Turn off the operating device by pressing
the power button for three seconds or
more, and turning off the TV.
* Some device may not support this
function. For more details refer to the
device’s manual.
Send status of the TV to the HDMI CEC
enabled device
When switching the TV’s external input
or channel.
When switching the TV’s menu language.
* Information regarding behaviour of the
device when status is received, refer to
the external device’s manual.
HDMI OUT
CHAPT R 5
REPEAT -B
T TLE 5
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select “PCM” for the digital audio output of the device you connected or check the HDMI audio setting.
There may be no audio output if you select “Bitstream”, etc.
• This unit only accepts signals in compliance with EIA861.
[HDMI-DVI Connection]
Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.
S ER O
P M
DVI OUT
AUDIO OUT
RL
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
• HDMI-DVI connection requires separate RCA audio connections as well.
• Audio signals are converted from digital to analog for this connection.
• DVI does not display 480i image that is not in compliance with EIA/CEA-861/861B.
No supplied cables are used in this connection:
Please purchase the necessary cables at your local store.
High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.
To HDMI1
input jack only
HDMI-DVI
conversion cable
cable receiver or satellite box
with the DVI output jack
RCA audio cable
rear of this unit
HDMI cable
BD/DVD recorder
with the HDMI output jack
side or rear of this unit
or
e.g.)
e.g.)
To Next Page
