Page 6
English
+
–
+
–
RIGHT LEFT
1
2
1
2
FRONT SPEAKERS
RIGHT
1
RIGHT
1
RIGHT
1
LEFTRIGHT

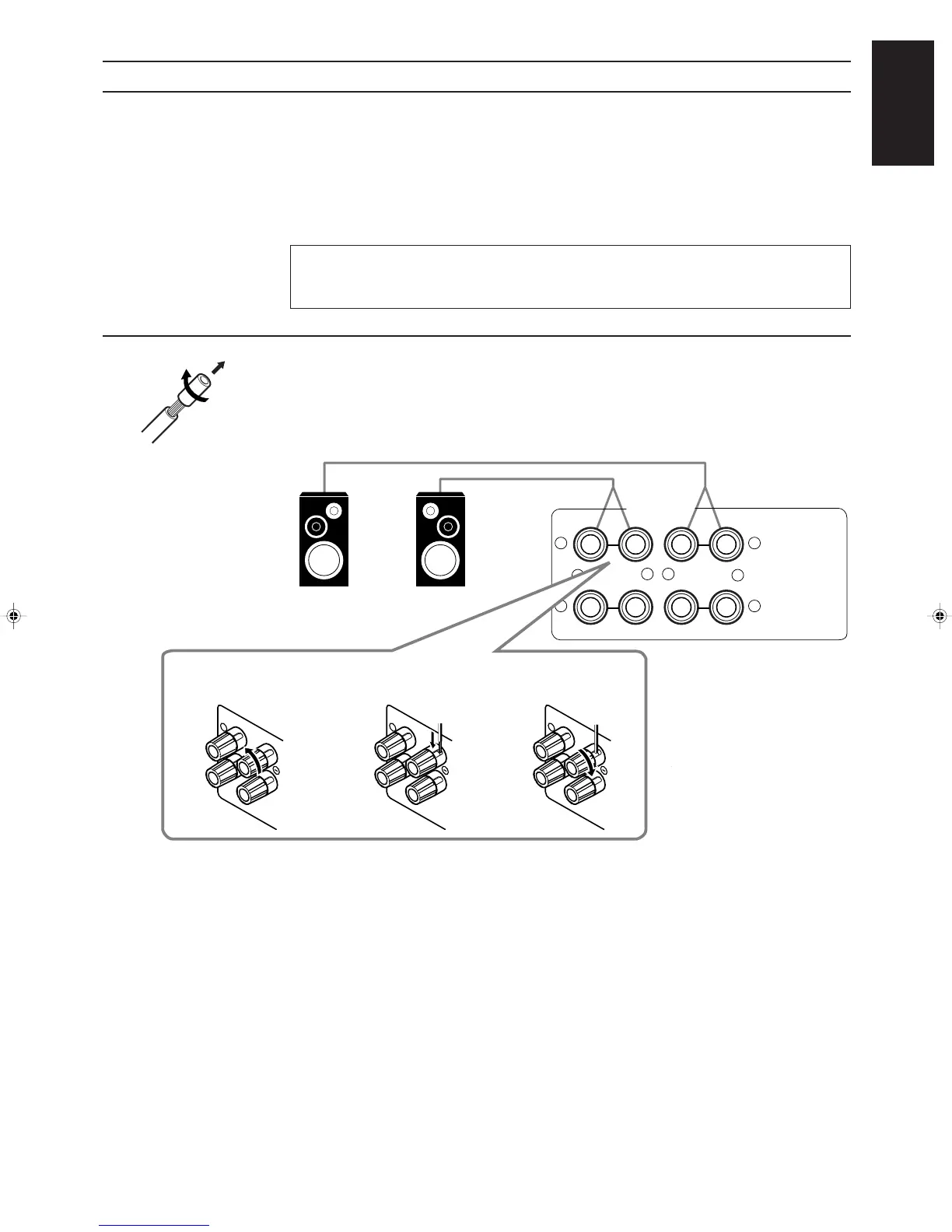

Connecting the Speakers
You can connect the following speakers:
• Two pairs of front speakers to produce normal stereo sound.
• One pair of rear speakers to enjoy the surround effect.
• One center speaker to produce more effective surround effect (to emphasize human voices).
• One subwoofer to enhance the bass.
For each speaker (except for subwoofer), connect the black (–) and red (+) terminals on the rear panel to the
black (–) and red (+) terminals marked on the speakers. For connecting a subwoofer, see page 7.
CAUTION:
When connecting speakers, use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
Connecting the front speakers
Cut, twist and remove the insulation at the end of each speaker signal cable first, and then, connect the front
speakers to the FRONT SPEAKERS terminals by using the cables.
You can connect two pairs of front speakers (one pair to the FRONT SPEAKERS 1 terminals, and another
pair to the FRONT SPEAKERS 2 terminals).
1 Turn the knob
counterclockwise.
2 Insert the speaker
signal cable.
3 Turn the knob
clockwise.
Left
Speaker
Right
Speaker
RX-730RBK(EF)0054-001A.En.01-28 97.7.25, 6:26 PM6
To Next Page
