Speaker Arrangements for Dolby Surround

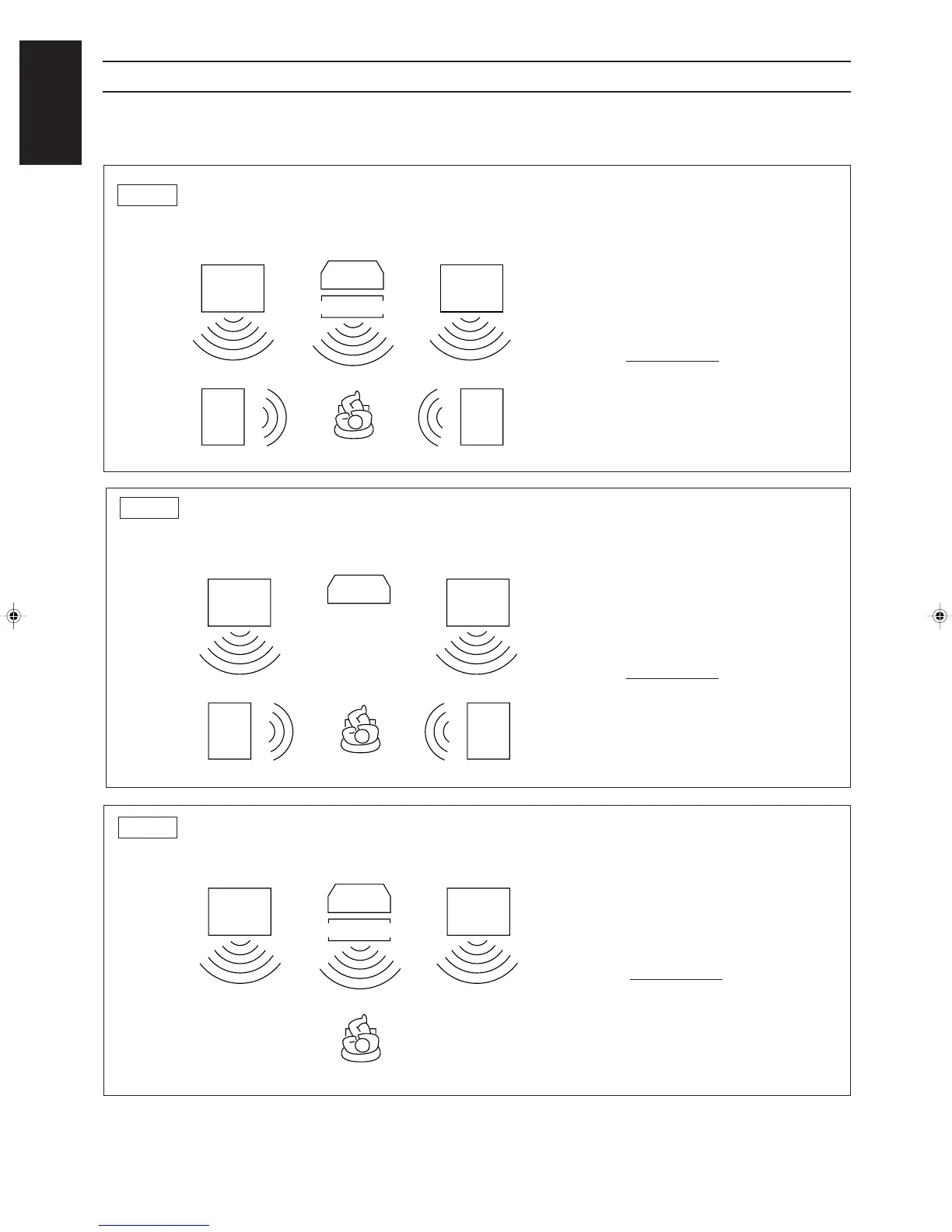

The following illustrations show how to obtain the optimum sound environment for various Dolby Surround
settings. Try to find the speaker direction and location to create the optimum sound field.
CASE 1 When you have added a center speaker and rear speakers
CASE 2 When you have added rear speakers (without a center speaker)
CASE 3 When you have added a center speaker (without rear speakers)
In this case:
1.Select “PROLOGIC.”
2.Select “NORMAL” or “WIDE”
for center mode.
See pages 32 to 35 for more details.
Front
speaker
Front
speaker
Rear
speaker
Rear
speaker
TV
Front
speaker
Front
speaker
Rear
speaker
Rear
speaker
TV
Center speaker
Front
speaker
Front
speaker
TV
Center speaker
In this case:
1.Select “PROLOGIC.”
2.Select “PHANTOM” for center
mode.
See pages 32 to 35 for more details.
In this case:
1.Select “3CHLOGIC.”
2.Select “NORMAL” or “WIDE”
for center mode.
See pages 32 to 35 for more details.
