Page 8
English
About the speaker impedance of the speakers
CAUTION:
When connecting speakers, use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
Notes:
• The required speaker impedance of the front speakers does not differ depending on whether both the
FRONT SPEAKERS
1
and FRONT SPEAKERS
2
terminals are used or only one of them is used.
• The required speaker impedance of the front speakers differs depending on whether or not a center and/
or rear speakers are connected at the same time. Since there are four possible speaker connections with
the receiver, check which one fits your case and use the speaker with the impedance described below.

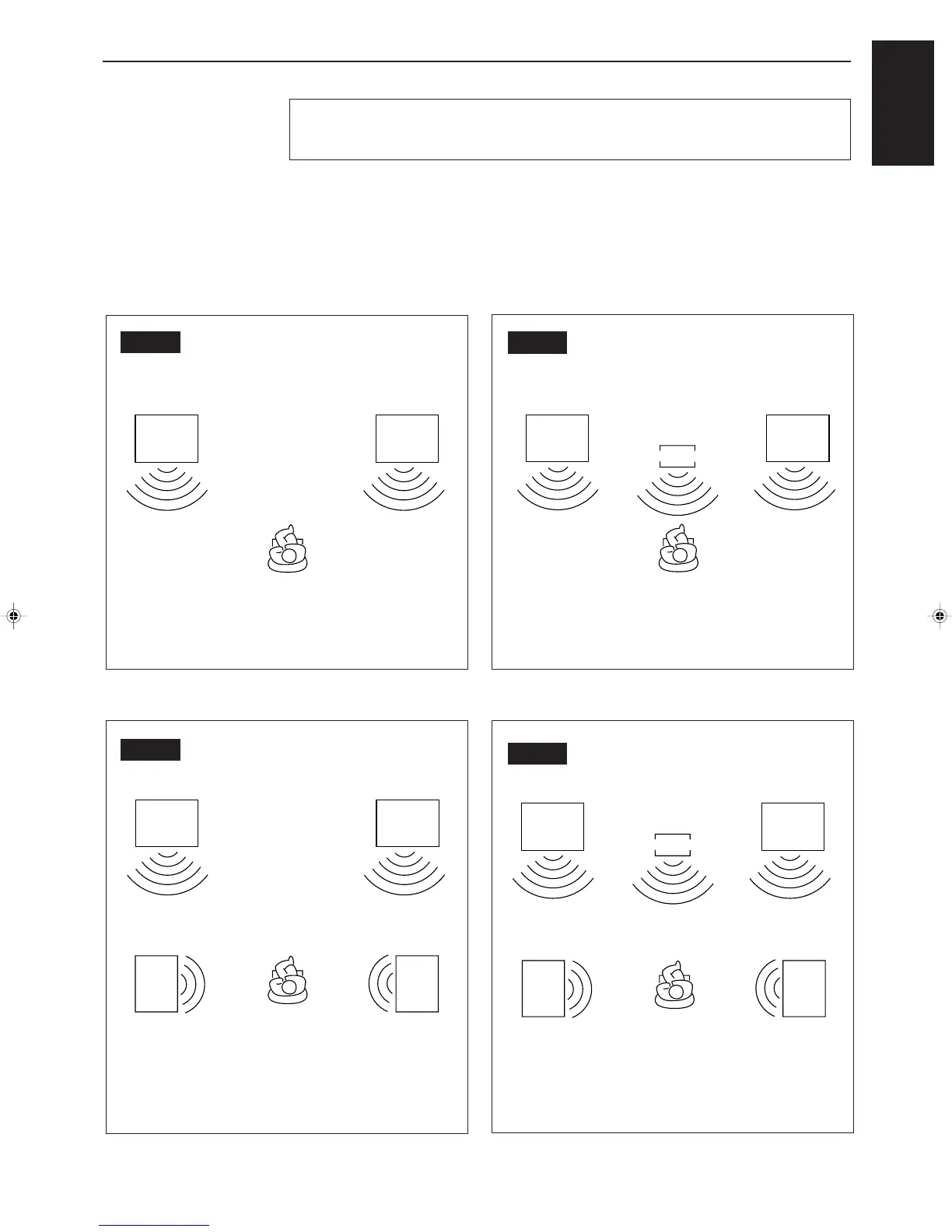

CASE 1 When you connect only front speakers
CASE 2 When you connect front speakers and a center
speaker
CASE 3 When you connect front and rear speakers
CASE 4 When you connect front and rear speakers as
well as a center speaker
Use the following speakers;
• Front speakers: 8 — 16 ohm impedance
• Rear speakers: 8 — 16 ohm impedance
• Center speaker: 8 — 16 ohm impedance
Use the following speakers;
• Front speakers: 8 — 16 ohm impedance
• Center speaker: 8 — 16 ohm impedance
Use front speakers with 4 — 16 ohm impedance.
Use the following speakers;
• Front speakers: 8 — 16 ohm impedance
• Rear speakers: 8 — 16 ohm impedance
Front
Speaker
Front
Speaker
Front
Speaker
Front
Speaker
Center Speaker
Front
Speaker
Front
Speaker
Rear
Speaker
Rear
Speaker
Front
Speaker
Front
Speaker
Center Speaker
Rear
Speaker
Rear
Speaker
RX-730RBK(EF)0054-001A.En.01-28 97.7.25, 6:26 PM8
