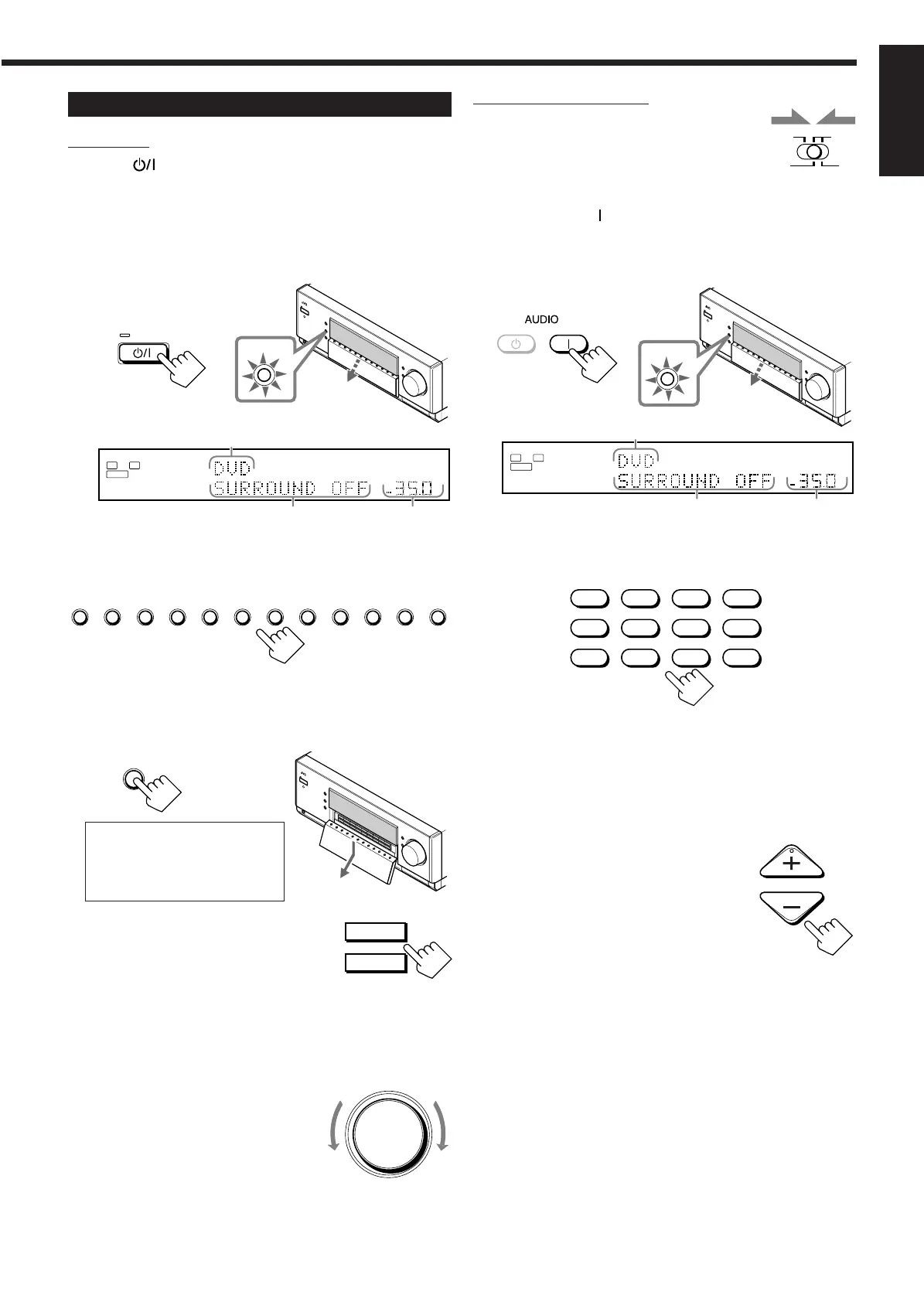

Basic Operating Procedure for Zone 1
On the unit:
1. Press (STANDBY/ON).
The STANDBY lamp goes off, and the ZONE 1 ON/OFF lamp
lights up.
The front door moves down so that the source selecting buttons
appear, and the buttons and controls on the unit work for the
Zone 1 operations.
• For more details, see “Turning the Power On and Off
(Standby)” on page 22.
2. Select and play a source.
The sound comes out of the Zone 1 speakers.
3. Press DOOR DOWN so that you can use the
other buttons inside the front door.
4. If no sound comes out of the front
speakers, press SPEAKERS 1
and/or SPEAKERS 2 which you
want to use.
The selected front speaker indicator(s) light(s) up on the display.
• For more details, see “Activating the Zone 1 Front Speakers”
on page 25.
5. Turn MASTER VOLUME to
adjust the volume level of the
sound through the Zone 1
speakers.
The volume
level appears.
The last Zone 1 source is activated.
To close the front door, press
DOOR UP once or twice.
The front door moves up in two
steps.
Down
From the remote control:
1. Set ZONE 1/ZONE 2 (LEARN/
TRANSMIT) selector to “ZONE 1.”
Now the buttons and controls on the remote
control work for the Zone 1 operations.
2. Press AUDIO (ON).
The STANDBY lamp goes off, and the ZONE 1 ON/OFF lamp
on the unit lights up. The front door moves down.
• For more details, see “Turning the Power On and Off
(Standby)” on page 22.
3. Select and play a source.
The sound comes out of the Zone 1 front speakers.
• If no sound comes out of the front speakers, press SPEAKERS 1
and/or SPEAKERS 2 on the unit (inside the front door).
The selected front speaker indicator(s) light(s) up on the
display. For more details, see “Activating the Zone 1 Front
Speakers” on page 25.
4. Press VOLUME +/– to adjust the
volume level of the sound through
the Zone 1 speakers.
