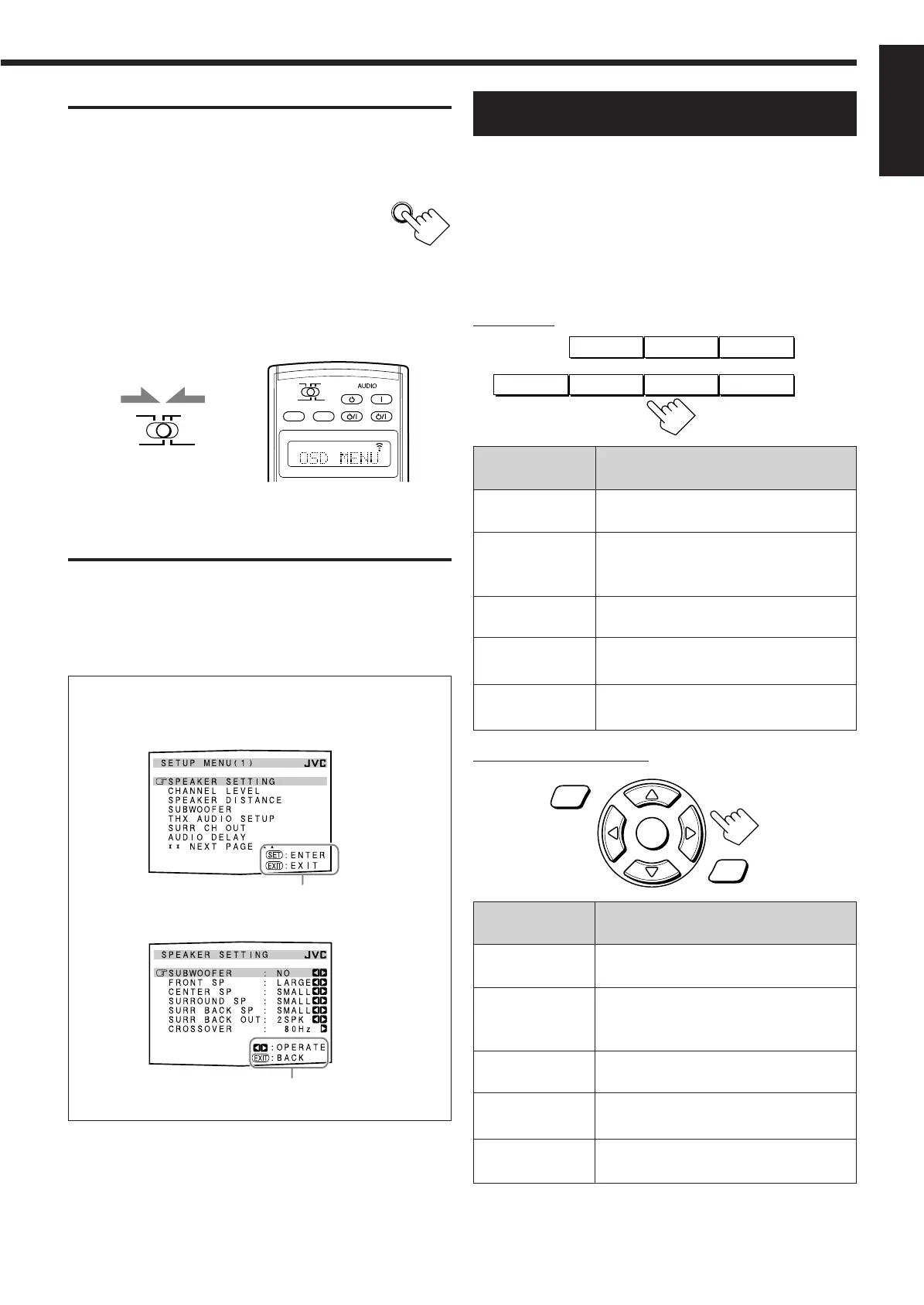

Operation through On-Screen Display
Menus
To do the basic settings for this receiver, you can utilize the on-
screen display menus in order to finish important settings easily
while viewing these menus.
Menu operation buttons
• When no operation is done for about 1 minute, the on-screen menu
(as well as the indications in the unit’s main display) will
disappear.
On the unit:
From the remote control:
IMPORTANT:
Check the following before or while using the buttons and controls.
For Zone 1 operations:
The ZONE 1 ON/OFF lamp on the unit is lit.
• When using the unit:
– “ZONE 2” is not shown in the main display.
– Press DOOR DOWN to use the buttons inside the
front door.
To close the front door, press DOOR UP.
• When using the remote control:
– Set the ZONE 1/ZONE 2 (LEARN/TRANSMIT) selector to “ZONE 1.”
– Check the indication shown on the remote’s display when you
press a button—this indicates the remote control operation mode
together with multi-room operation mode (either ZONE 1 or
ZONE 2) for a while.
The buttons for operating the menus are shown on the screen.
You can operate the menu with these buttons.
DOOR
DOWN
Ex. When you press SETUP MENU with
ZONE 1/ZONE 2 (LEARN/TRANSMIT) selector
set to “ZONE 1.”
ZONE 2
TRANSMITLEARN
ZONE 1
ON/OFF ON/OFF
STANDBY/ON STANDBY/ON
STANDBY
TV/CATV/DBS VCR 1
ON
ZONE 2
TRANSMITLEARN
ZONE 1
ZONE 2
ZONE 1
ZONE 1
Usable buttons
Usable buttons
Button
SETUP MENU
To do
display or erase the Setup Menu.
select a submenu on the Setup Menu or an
item on a submenu (downwards or
upwards).
move to the selected submenu screen.
select the desired setting on a submenu.
exit from menu operations or return to the
previous menu.
SET
LEFT/RIGHT
EXIT
DOWN/UP
RIGHT
/ PRESET5
EXIT
/ FM MODE
LEFT
/ PRESET∞
UP
/ TUNING5
SET
/ MEMORY
DOWN
/ TUNING∞
SETUP MENU
(inside the front door)
SET
SETUP
MENU
EXIT
Button
SETUP MENU
To do
display or erase the Setup Menu.
select a submenu on the Setup Menu or an
item on a submenu (downwards or
upwards).
move to the selected submenu screen.
select the desired setting on a submenu.
exit from menu operations or return to the
previous menu.
SET
@ / #
EXIT
fi / %
