JVC RX-DP20VBK User Manual

5
English

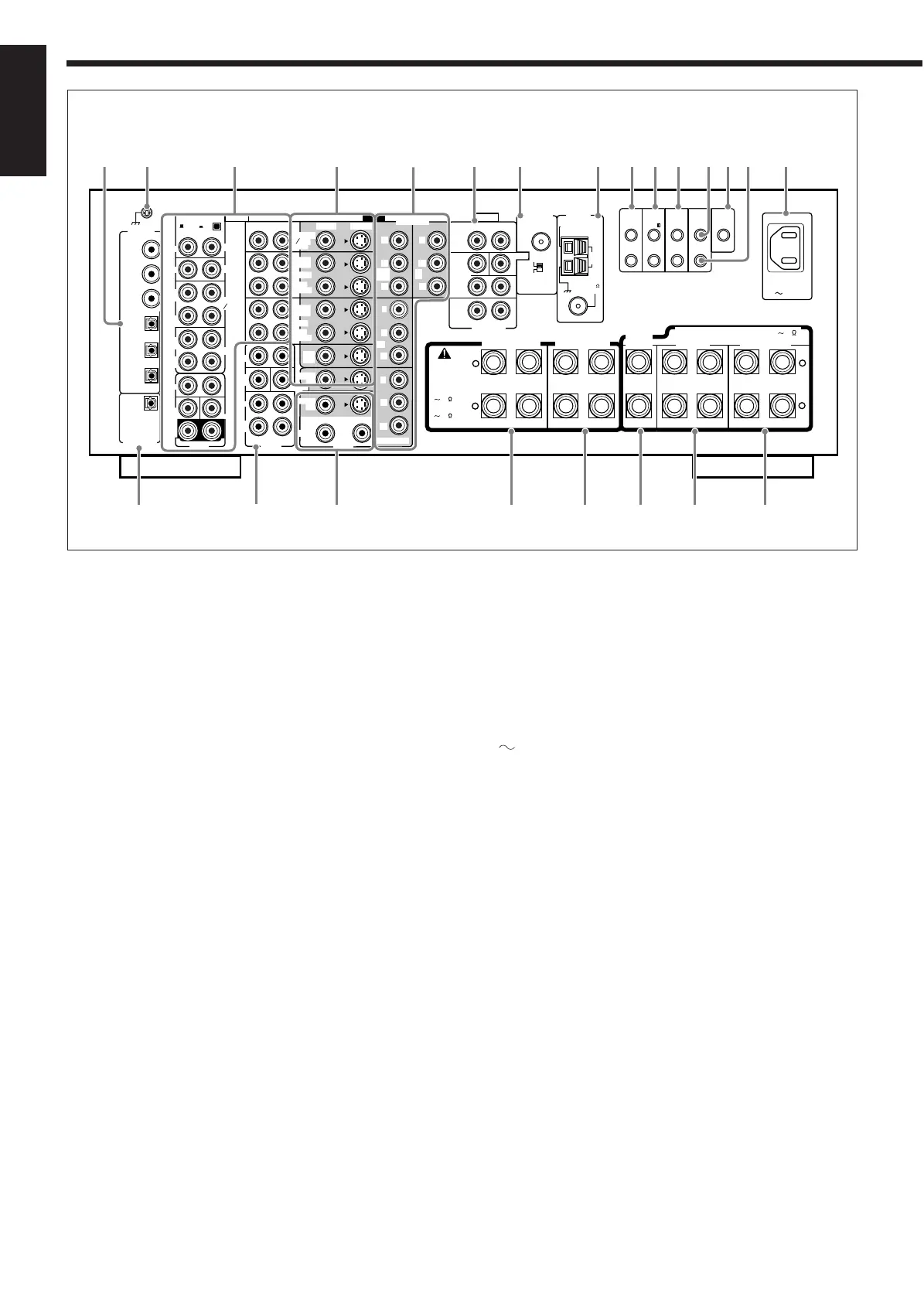

Rear Panel
9 COMPU LINK-4 (SYNCHRO) terminals (61, 63)
p AV COMPU LINK-III terminals (68)
q TEXT COMPU LINK terminals (63)
w IR OUT terminal (18, 68)
e CTRL OUT +12V terminal
• This terminal is only for service use.
r IR IN terminal
• This terminal is only for service use.
t
AC IN socket (18)
y DIGITAL OUT terminal (16)
u PREOUT jacks (10)
• FRONT, SUBWOOFER, CENTER, SURR, SURR BACK
i ZONE 2 audio/video output jacks (19)
• Audio output: PREOUT
• Video output: MONITOR OUT (S-video/composite video)
o FRONT 1 SPEAKERS terminals (9)
; FRONT 2/ZONE 2 SPEAKERS terminals (9, 19)
a CENTER SPEAKER terminals (9)
s SURROUND SPEAKERS terminals (9)
d SURROUND BACK SPEAKERS terminals (9)
1 DIGITAL IN terminals (16)
• Coaxial: 1 (DVD), 2 (CD), 3 (TV/DBS)
• Optical: 4 (CDR), 5 (MD), 6 (VCR 1)
2 Earth (ground) terminal (11)
3 Audio input/output jacks (13–15)
• Input: PHONO IN, CD IN, TAPE/MD IN, CDR IN
TV SOUND/DBS IN, VCR 1 IN, VCR 2 IN, DVD IN (5.1 ch)
• Output: TAPE/MD OUT, CDR OUT
VCR 1 OUT, VCR 2 OUT
4 S-video/composite video input/output jacks (13–15)
• Input: TV SOUND/DBS IN, VCR 1 IN, VCR 2 IN, DVD IN
• Output: VCR 1 OUT, VCR 2 OUT, MONITOR OUT
5 Component video input/output jacks (13–15)
• Input: 1 IN (DVD), 2 IN, 3 IN
• Output: MONITOR OUT
6 EXT 7.1CH IN (audio input) jacks (12)
7 RF REMOTE ANTENNA terminal and BAND 1/2 selector
(17)
8 FM/AM ANTENNA terminals (7, 8)
EXT 7.1CH IN
R
L
RIGHT
LEFT
SURR
BACK
SUB
WOOFER
SURR
FRONT
CENTER
ANTENNA
RF REMOTE
RIGHT
MM
LEFT
PHONO
CD
CDR
TAPE
MD
OUT
(REC)
IN
(PLAY)
OUT
(REC)
FRONT
CENTER
L
R
IN
(PLAY)
SUB
WOOFER
VIDEO
RIGHT LEFT
DVD
IN
TV SOUND
DBS
IN
OUT
(REC)
IN
(PLAY)
VCR 1
L
R
VCR 2
S-VIDEO
VIDEO
Y
P B
P R
1 IN
(DVD)
Y
P B
P R
3 IN
Y
P B
P R
MONITOR OUT
Y
P B
P R
2
IN
PREOUT
SURR
BACK
SUB
WOOFER
SURR
FRONT
IN
(PLAY)
OUT
(REC)
COMPONENT
AUDIO AUDIO
ZONE 2
SURR
(REAR)
MC
DIGITAL IN
1 (DVD)
2 (CD)
3 (TV
/DBS)
4 (CDR)
5 (MD)
6 (VCR 1)
PCM
/ DOLBY DIGITAL
/ DTS
DIGITAL OUT
CENTER
BAND1
BAND2
FM 75
COAXIAL
ANTENNA
AM
EXT
AM
LOOP
RIGHT
LEFT
+
–
+
–
CAUTION :
SPEAKER
IMPEDANCE
FRONT 1 SPEAKERS
FRONT 2 /
ZONE 2 SPEAKERS
RIGHT
LEFT
CENTER
SPEAKER
RIGHT
LEFT
RIGHT
LEFT
SURROUND BACK
SPEAKERS
SURROUND
SPEAKERS
816
FRONT 1 AND 2
/ ZONE 2:
416
FRONT 1 OR 2:
COMPU
LINK-4
(SYNCHRO)
AV
COMPU
LINK-
TEXT
COMPU
LINK
IR
OUT
IR
IN
CTRL
OUT
+12V
10mA MAX
AC IN
LR
MONITOR
OUT
PREOUT
MONITOR
OUT
DVD IN
IN
IN
23 456789pqert
yui o;asd
w1
816
CAUTION : SPEAKER IMPEDANCE
EN01-18_RX-DP20VBK[C]f 03.6.12, 2:09 PM5
