PR-23 instrucon manual

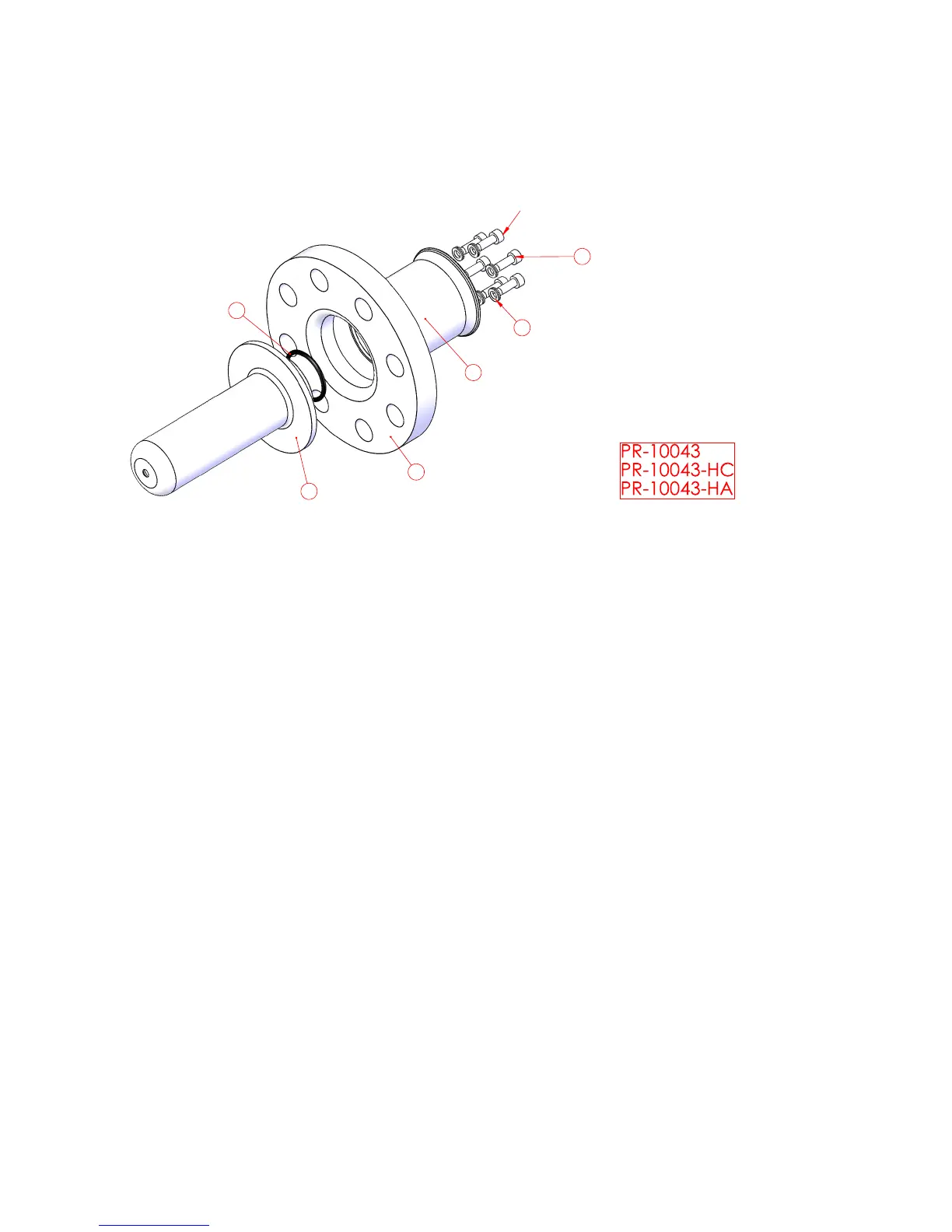

9.7.4 PR-23-RP head parts list
PR-10043
PR-10043-HC
PR-10043-HA
1
3
2
4
5
Torque 6Nm (4,4 lbs/ft)
6
REV. DESCRIPTION DATE APPR.
A 30.3.2012 HS+
B Code changed, PR-numbers added 6.6.2012 HS+
Material
PR-23-RP head assembly
1:2
Scale
B 2050
Revision
ISO 2768 FINE
14.01.2011 HS
30.03.2012 HS
kg
MAN
General tolerances
Mass
Drawing description
Drawing number
Drawn
Appr.
Item Pcs. Part No. Descripon
1.1 1 PR-23-RP head
1.2 1 PR-23-RP head Hastelloy C
1.3 1 PR-23-RP head Alloy 20
2 1 PR-23-RP outer head
Item Pcs. Part No. Descripon
3 1 2” ANSI 300 flange
4 1 PR-10049 O-ring 50x3 FPM
5 6 M6x16 DIN912 A4
6 6 M6 Nord lock washer
