PR-23 instrucon manual
3.3.3 Connecng the Indicang transmier
            
             
            
POWER
INDICATOR
LIGHT
FRONT
PANEL
SCREW

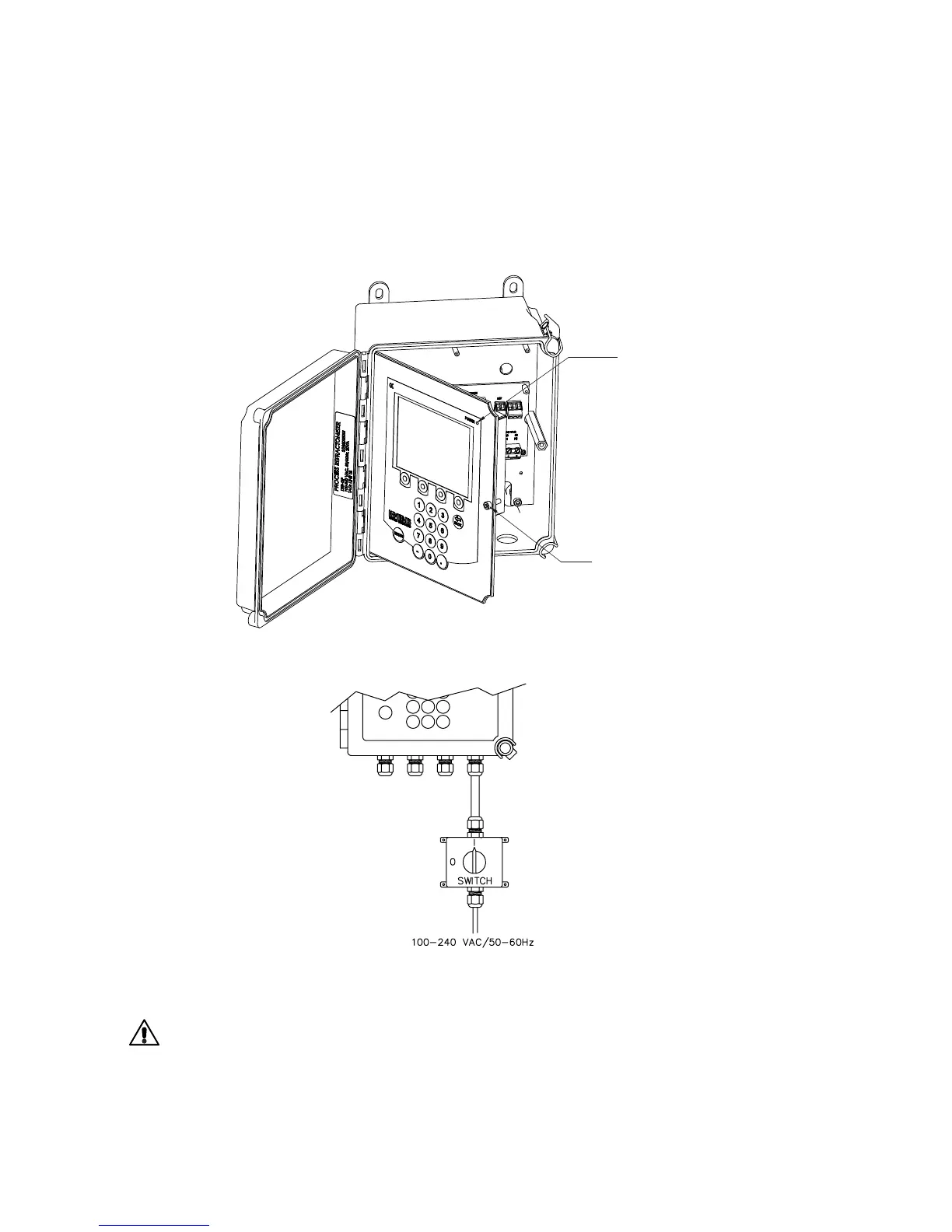

Figure 3.5 Opening the Front panel of the Indicang transmier
Figure 3.6 The recommended external power switch, K-Patents
part nr PR-10900. The rangs of the switch are 10A/230V.
             
               
