K-Patents PR-23-GP User Manual

2 Inline refractometer sensor
5
2 Inline refractometer sensor
2.1 Sensor descripon
             
              
               
               
              
              
              
         

  
         
(A) Prism
(B) Gasket
(C) Core module
(D) Disc spring
(E) CCD element
(F) Temperature probe
(G) Cooling fins
(K) Thermal isolator
(L) Light source
Sensor
processor
card
(H)

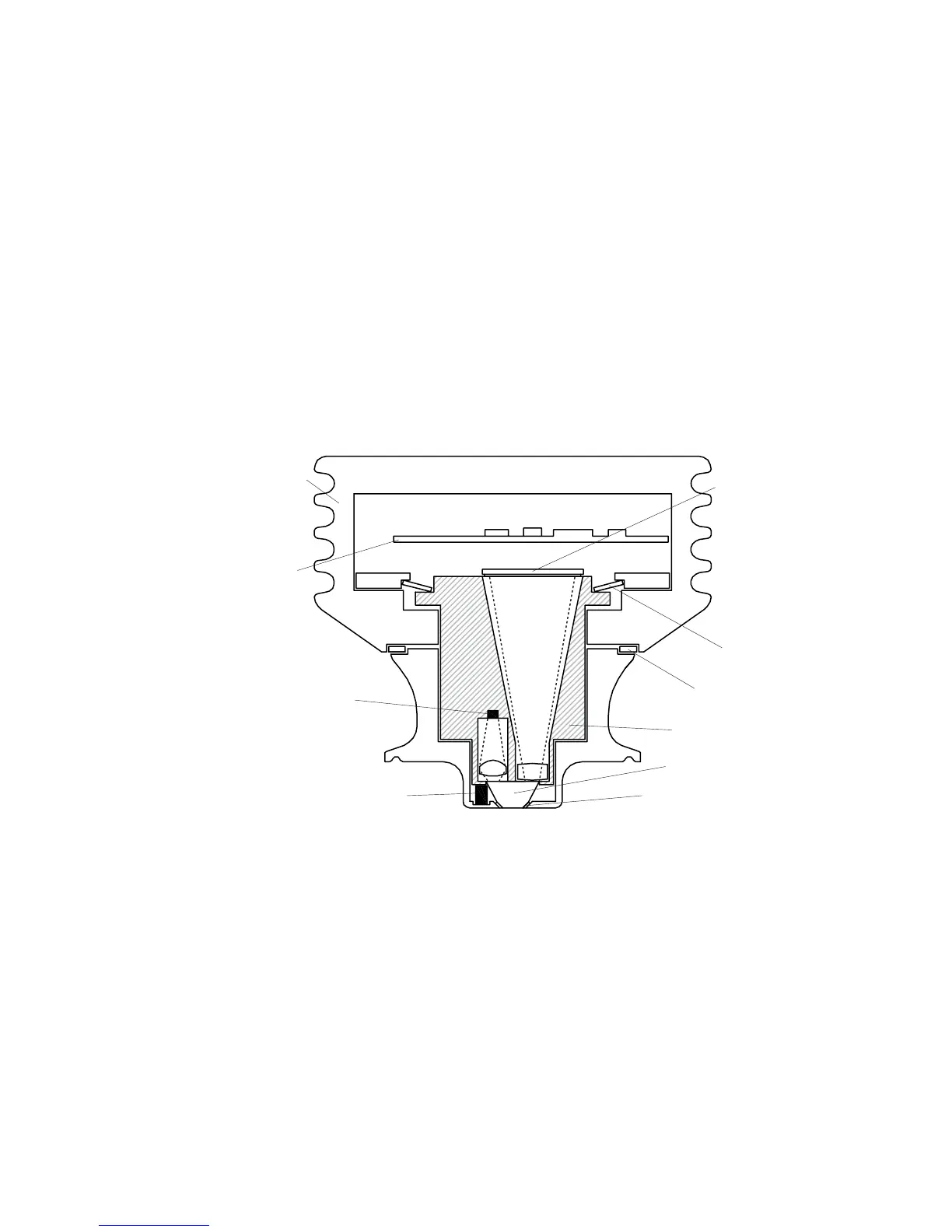

Figure 2.1 PR-23 sensor structure
