9.7.7 PR-23-RP prism wash system
               
              
          
           
                
            

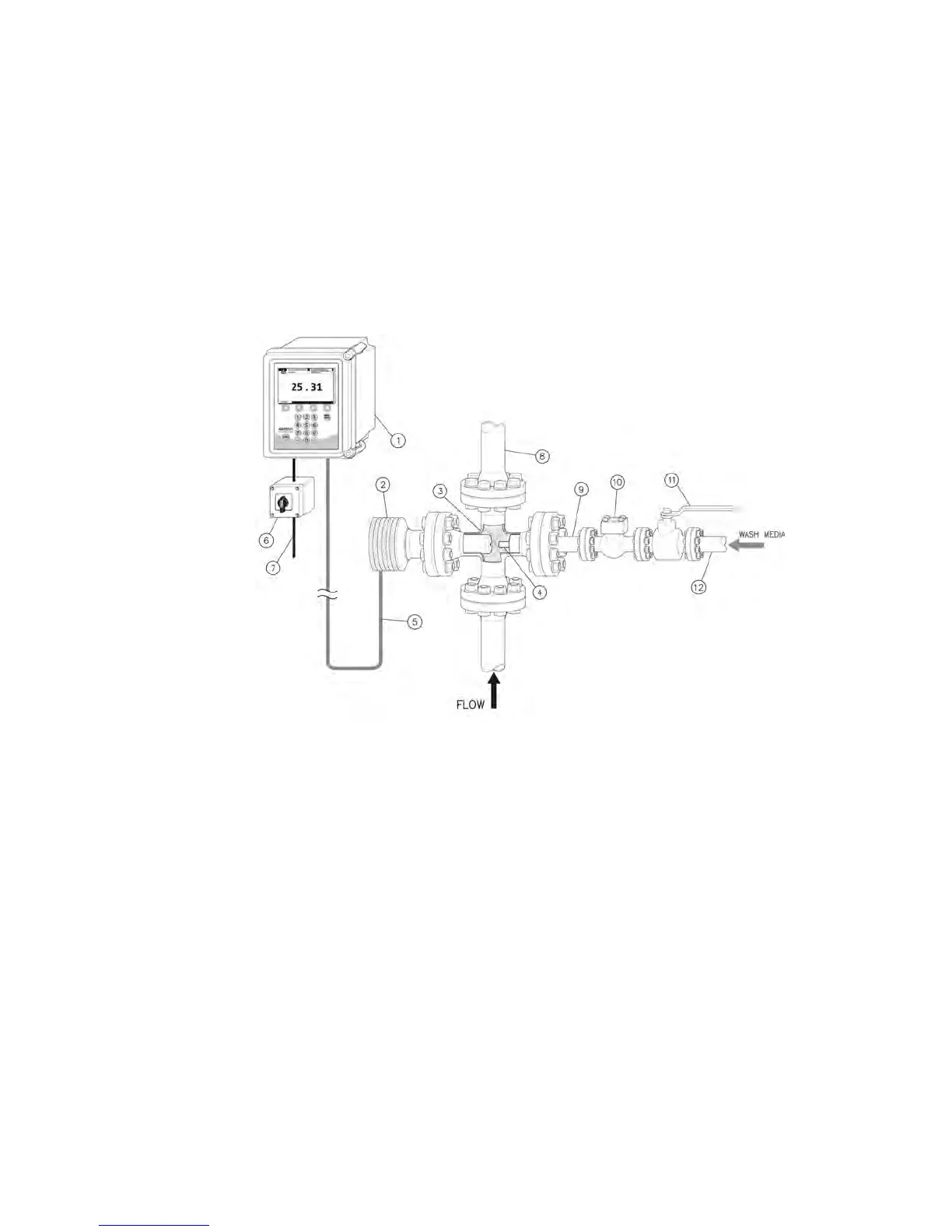

Figure 9.25 A prism wash system for PR-23-RP
Item. Descripon Supplied by Pcs.
1 Indicang transmier DTR K-Patents 1
2 Sensor PR-23-RP K-Patents 1
3 CFC-RP-M20 flow cell K-Patents 1
4 2’’ ANSI 300 CFC wash nozzle K-Patents 1
5 Cable between DTR and sensor K-P/Customer 1
6 Main switch PR-10900 Customer/K-P 1
Item. Descripon Supplied by Pcs.
7 Power supply 100-240 VAC/50-60Hz Customer 1
8 Process pipe Customer 1
9 2’’ ANSI 300 to 1/2”ANSI 300 adapter Customer 1
10 Check valve ANSI 1/2” Customer 1
11 1/2’’ ANSI 300 Valve Customer 1
12 Wash supply 1/2” Customer 1
