K-Patents PR-23-GP User Manual

4 Prism wash systems
25
4.2.3 Prism wash nozzles
            
            
              
        
Flowcell -H10 or -H15
A B part nr
steam 64.75 4.0 PR-3365
water 75 2.5 PR-3369
pressurized water 75 1.5 PR-3368
Flowcell -H20 or -H25
A B part nr
steam 72.15 4.0 PR-3375
water 97 2.5 PR-3379
pressurized water 97 1.5 PR-3378
Flowcell -H30
A B part nr
steam 100 4.0 PR-3383
water 100 2.5 PR-3384
pressurized water 100 1.5 PR-3385
Flowcell -H40
A B part nr
steam 128.2 4.0 PR-3380
water 128.2 2.5 PR-3381
pressurized water 128.2 1.5 PR-3382
0.8
Mark
Rev.
Rev. by Date
Appr.
Title/Name, designation
Scale General tolerances
Part no.
Drawing no.
Join
File
Dimensions, model no. Standard
Quantity
Drawing description
Drawing number
Drawn
Appr.
A
B
756/C
756.drw
SFS 4011 FINE
1 1 :
30.8.2004 HS
30.8.2004 HS
AFC nozzles
Material
AISI316L
C MRP nrot muuttuneet

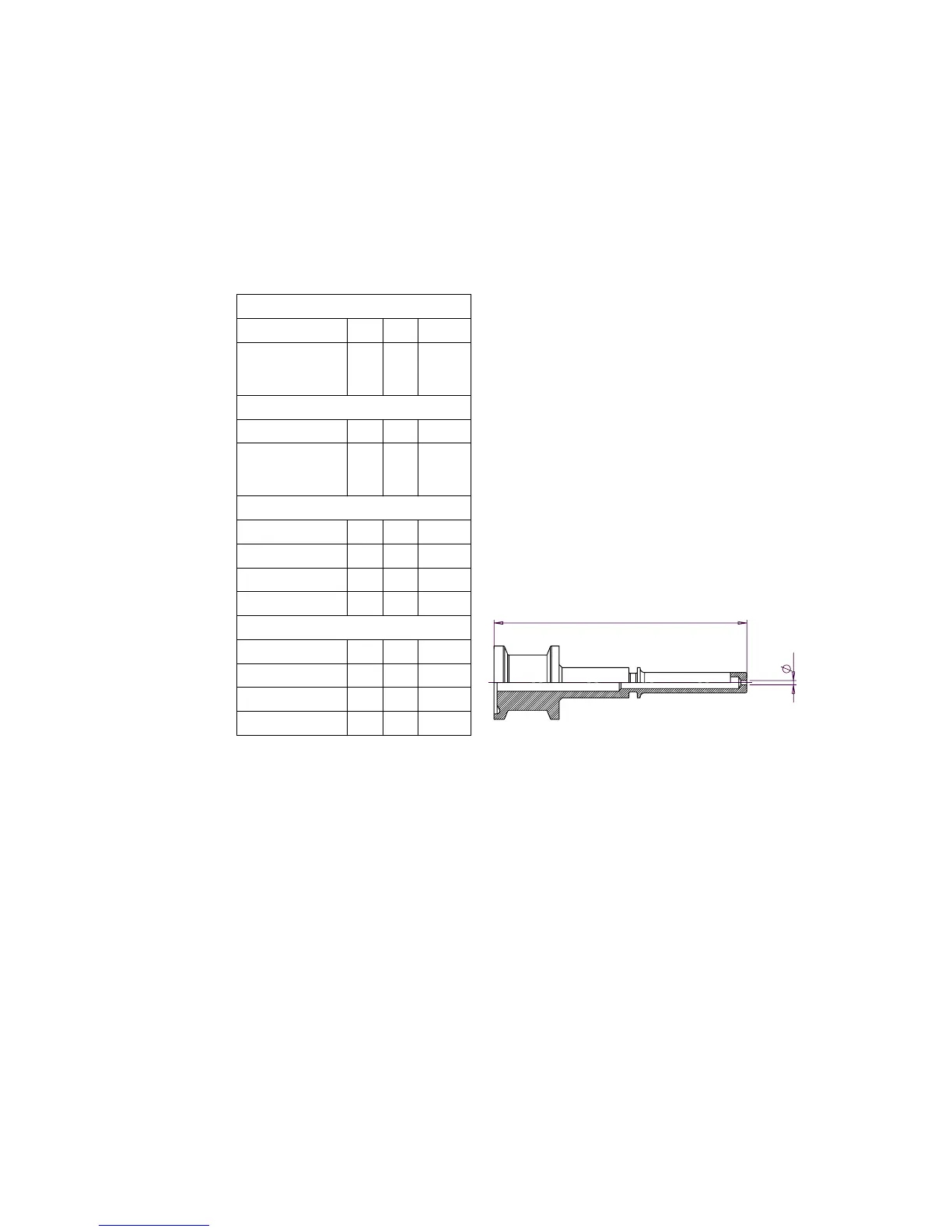

Figure 4.7 Wash nozzles for flowcell AFC-HSS-XXX-XX-NC
                 
         
           
     
            
            
 
