K-Patents PR-23-GP - PR-23-AP Parts List

86
PR-23 instrucon manual

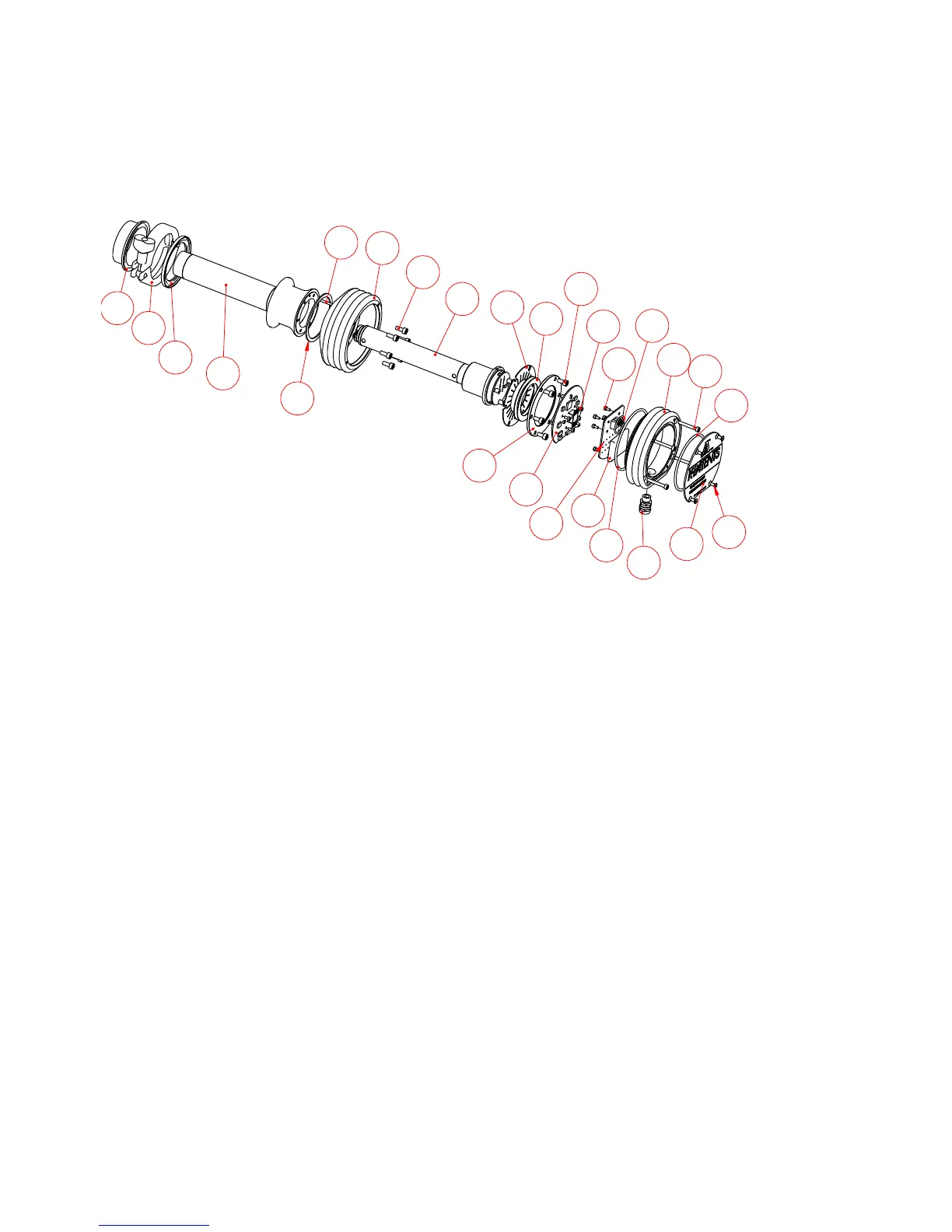

9.4.4 PR-23-AP parts list
1
2
3
4
5
6
7
8
24
9
10
11
8
12
13
13
14
15
16
17
18
23
19
20
21
22
Item Pcs. Part No. Descripon
1 1 PR-9205 2.5” sanitary ferrule
1 1 VFMA-23-PSS MT4 DN25/1T APV tank boom flange
1 1 PR-4275 4” sanitary ferrule
2 1 PR-9201 2.5” sanitary clamp
2 1 PR-9270 4” sanitary clamp
3 1 PR-9202 2.5” sanitary gasket EPDM
3 1 PR-9203 2.5” sanitary gasket NBR
3 1 PR-9204 2.5” sanitary gasket Teflon®
3 1 PR-9243 MT4 DN25/1T APV gasket EPDM
3 1 PR-9272 4” 3A sanitary gasket EPDM
3 1 PR-9273 4” 3A sanitary gasket NBR
3 1 PR-9274 4” 3A sanitary gasket Teflon®
4 1 PR-10008 PR-23-P-TSS head
4 1 PR-10006 PR-23-P-PSS head
4 1 PR-10007 PR-23-P-RSS head
5 1 PR-10048 68x3 O-ring
6 1 Alignment pin
7 1 PR-10005 PR-23 base
8 6 Screw M5x12
6 Locking spacer M5
9 1 PR-9011 Thermal conductor
Item Pcs. Part No. Descripon
* 1 PR-9010 Disc spring set
10 2 Disc spring
11 1 Disc spring holder
12 1 PR-10103 Sensor processor card
13 8 Screw M3x6 DIN 912 A2
14 1 PR-10300 Bus terminator card
15 1 O-ring seal 24x2
16 1 PR-9108 Dryer package
17 1 O-ring seal 89.5x3
18 1 PR-10000 PR-23 cover
19 1 Screw M4x30 DIN 912 A4
20 1 PR-10002 O-ring seal 83x3
21 1 PR-23-A nameplate
22 4 Screw M4x8 DIN 964 A4
23 1 Cable gland M16x1.5
24 1 PR-10022 PR-23-P core
