11 Safe-Drive™
163
11.7 Blinding the SD system
             
2
1.1
1.2
6
3
4
5
Use teflon tape
ITEM NO. PART NUMBER
SPARE PART
DESCRIPTION QTY.
1
1203003
PR-9336
Tapered connector
, DN10
1
2
1202303
Conical hat, DN10
1
3
3825
PR-9335
PR-23-SD-PG 1
4 - O-ring 1
5 DIN985, A4, M10 Stainless nylon insert lock nut 4
6 DIN933 Hexagonal bolt DIN933 x 35 A4 4

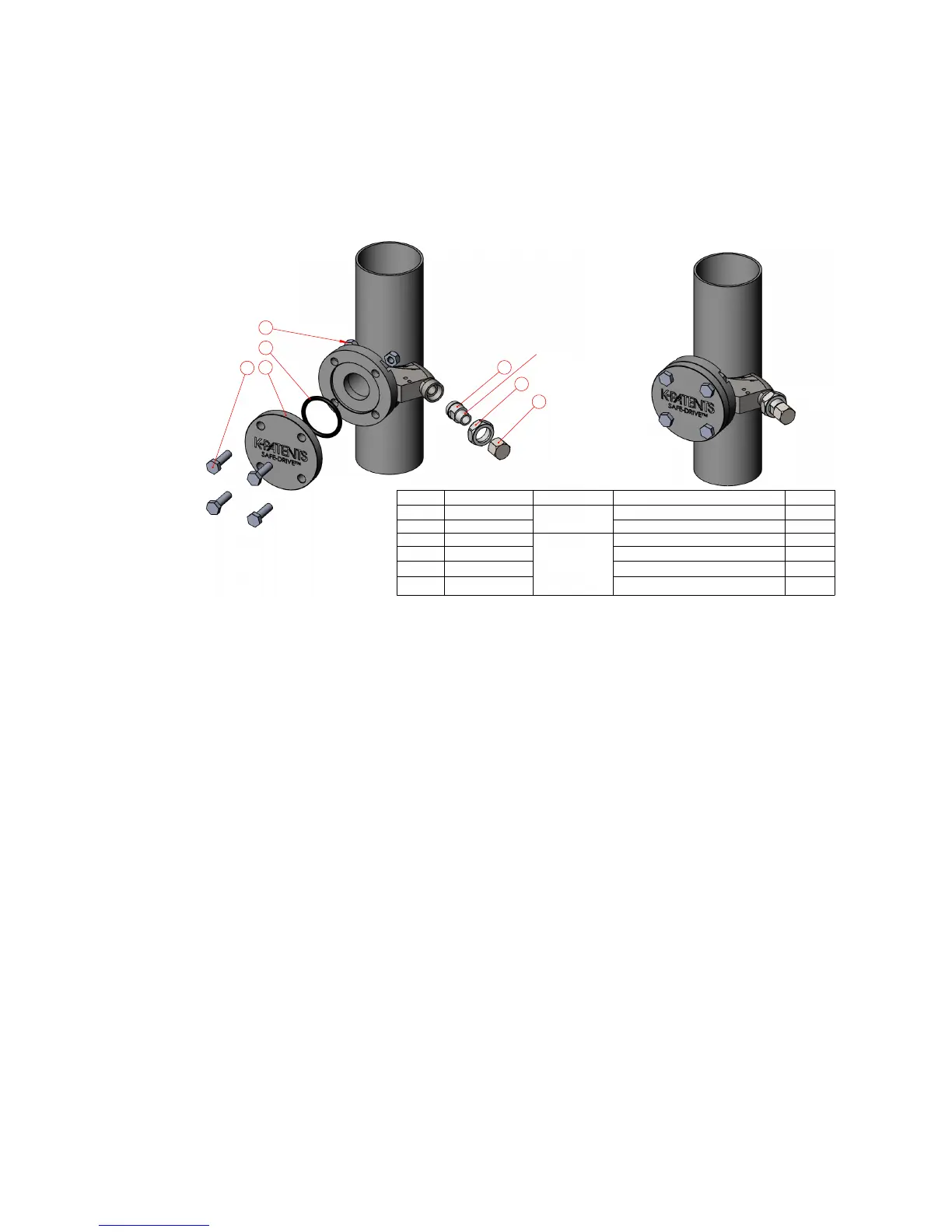

Figure 11.13 SDI mounng flange plug system
