PR-23 instrucon manual

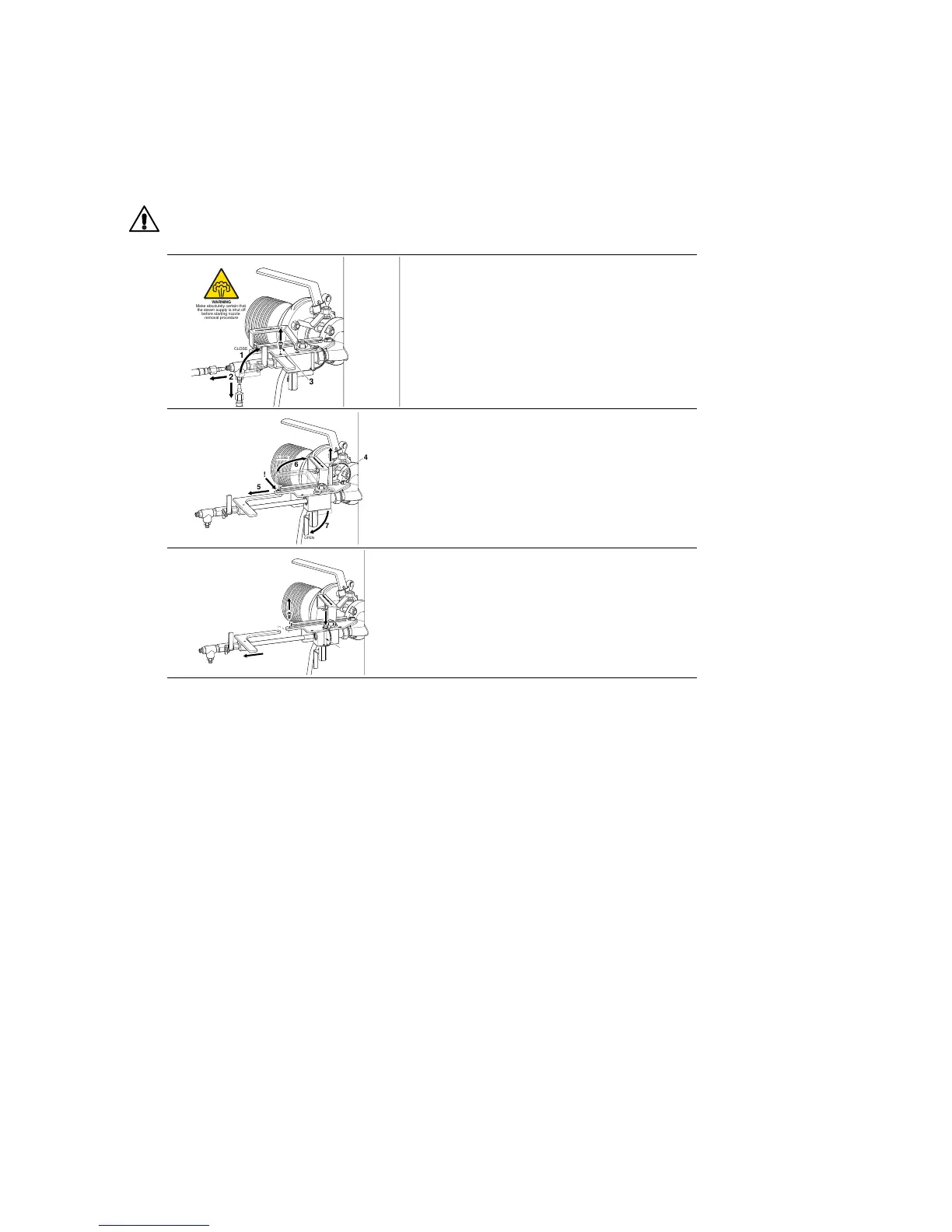

11.6.2 Wash nozzle removal
             

1
CLOSE
WARNING
Make absolutely certain that
the steam supply is shut off
before starting nozzle
removal procedure
1
3
2
1 Close the steam line supply valve (1).
2 Remove the steam supply line (2) and the
sensor flush flexible line (2) from the nozzle
T-piece.
Remove the nozzle guide locking screw (3). Be
careful, process pressure will try to push the
nozzle out from the process!
2
6
4
7
5
!
OPEN
CLOSE
4 Remove the safety pin (4).
5 Slide the nozzle out from the process (5)
unl the guide plate stops it.
6 Close the nozzle isolaon valve (6) by
turning the handle clockwise.
7 Open the 1/4’’ check port valve under the
nozzle isolaon valve (7).
3
1
2
3
1 Lock the isolaon valve handle with the
safety pin (1).
2 Remove the guide plate screw (2).
3 Remove the nozzle from the isolaon valve
completely (3).
