K-Patents PR-23-GP - 11.5.2 Sensor removal

148
PR-23 instrucon manual
A
Installation guide sticker (1:1)
A
Assembly/disassembly of isolation valve
Bolt torque 17Nm (13 ft lb)
Large bayonet
always on top
Valve handle
always on top
DIN 985 Stainless Nylon Insert Lock Nuts
50(2.0)
25 (1.0)
A
Welding
Material SAF2205
a3
a3
DETAIL A
SCALE 1 : 2
Ensure correct torque! 50Nm (37ft lb) Lower nut
Drill 50mm(2") and 25mm (1")
holes and cut between

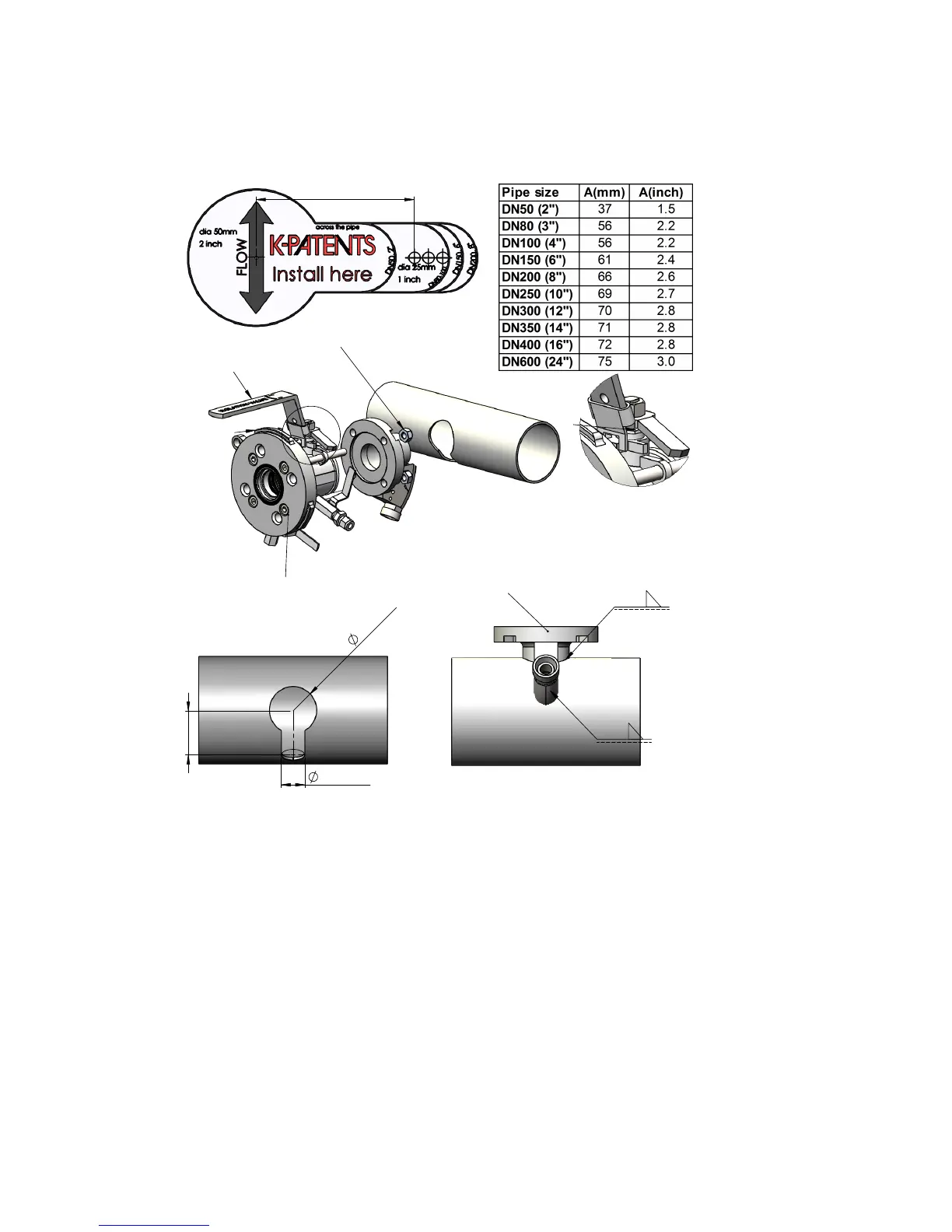

Figure 11.7 Welding the Safe-Drive™ isolaon valve to a horizontal pipe
