with the current probe.

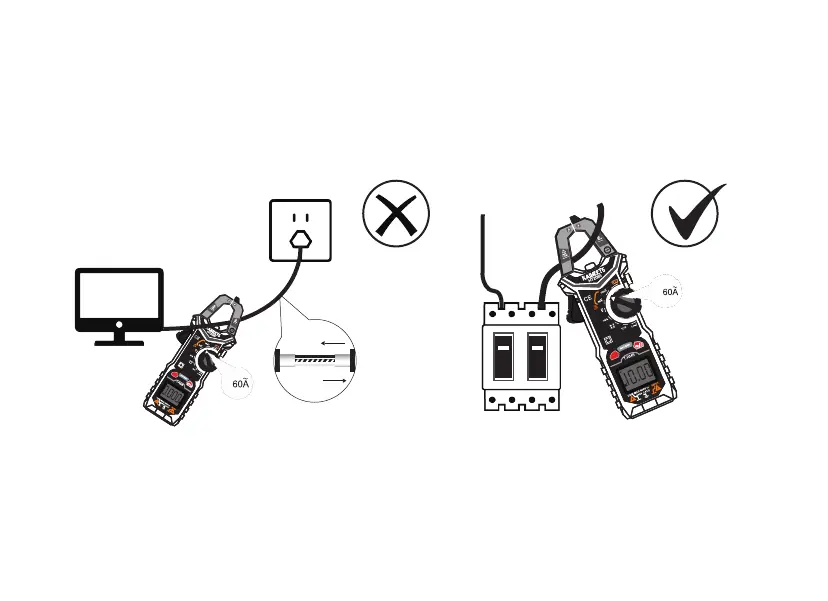

► If several supply conductors (e.g. L1 and L2) are measured, the currents add up.
► Center the conductor through the current clamp (above the markings)
► Hold your fingers behind the tactile barrier.
4. The measured current is shown on the display. If current> 3A, the orange display lights up.
5. During AC current measurement, press "FUNC.” to display the frequency value or the LPF function
measurement.
12
AC CLAMP METER
FUNC.
B
A
L
AC CLAMP MET ER
FUNC.
B
A
L
N
6/
6/
6/
6/
6/
