Resistance measurement Ω
Do not enter a voltage above 10 V! Make sure that the power supply to the circuit is
disconnected and all capacitors are discharged.

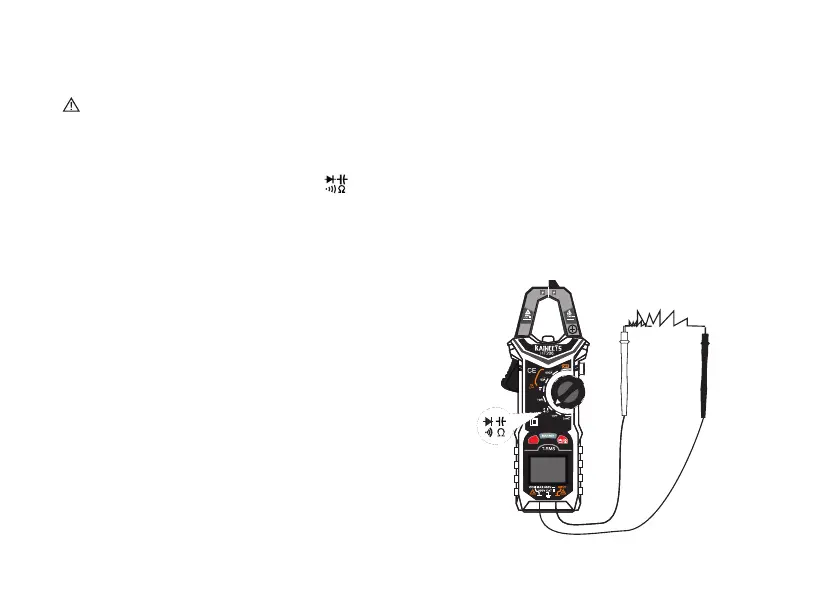

1. Turn the rotary function switch to for resistance measurement. It displays "MΩ” on screen.
2. Turn off the circuit under test.
3. Plug the black test lead into the COM socket and the red test lead into the INPUT socket.
4. Then place the test probes in contact with the points at which the resistance must be measured.
5. Read the result on the display.
Note: When measuring resistance on a circuit, the
measured value can be influenced by other circuits.
