Continuity test
Do not enter a voltage above 10 V! Make sure that the power supply to the circuit is disconnected and all
capacitors are discharged.

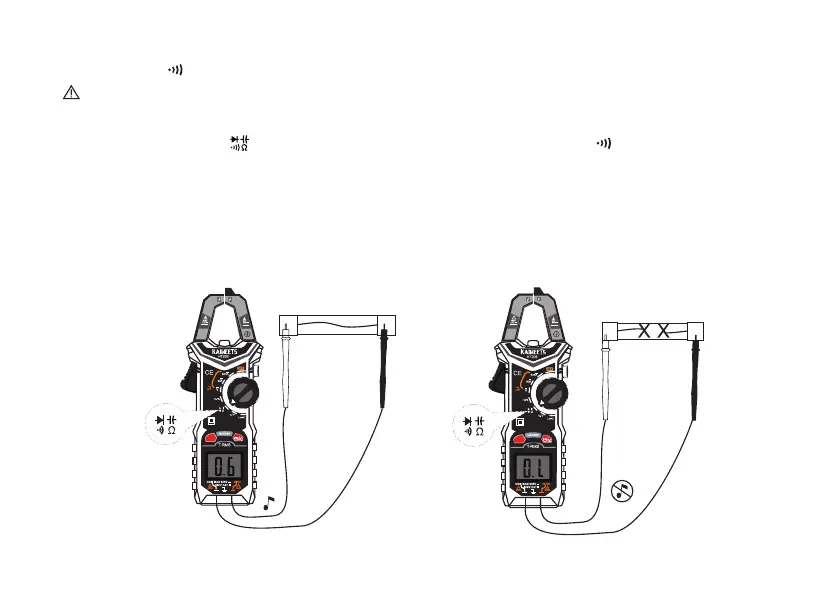

1. Turn the rotary switch to and press the "FUNC." key several times until appears on the display.
The endurance test is now active.
2. Plug the red test lead into the INPUT socket and the black test lead into the COM socket.
3. Connect the probes to the circuit or component under test.
4. If the resistance is <30 Ω, an acoustic signal sounds continuously and the orange backlight lights up.
Note: When measuring resistance on a circuit, the measured value can be influenced by other circuits.
