Bladder Volume Tester User’s Manual V1.02
- 3 -
Chapter Three System Outline
3.1 Structure composition of the instrument
BVT01 bladder volume tester is composed of main unit, probe, etc.
3.2 Components name

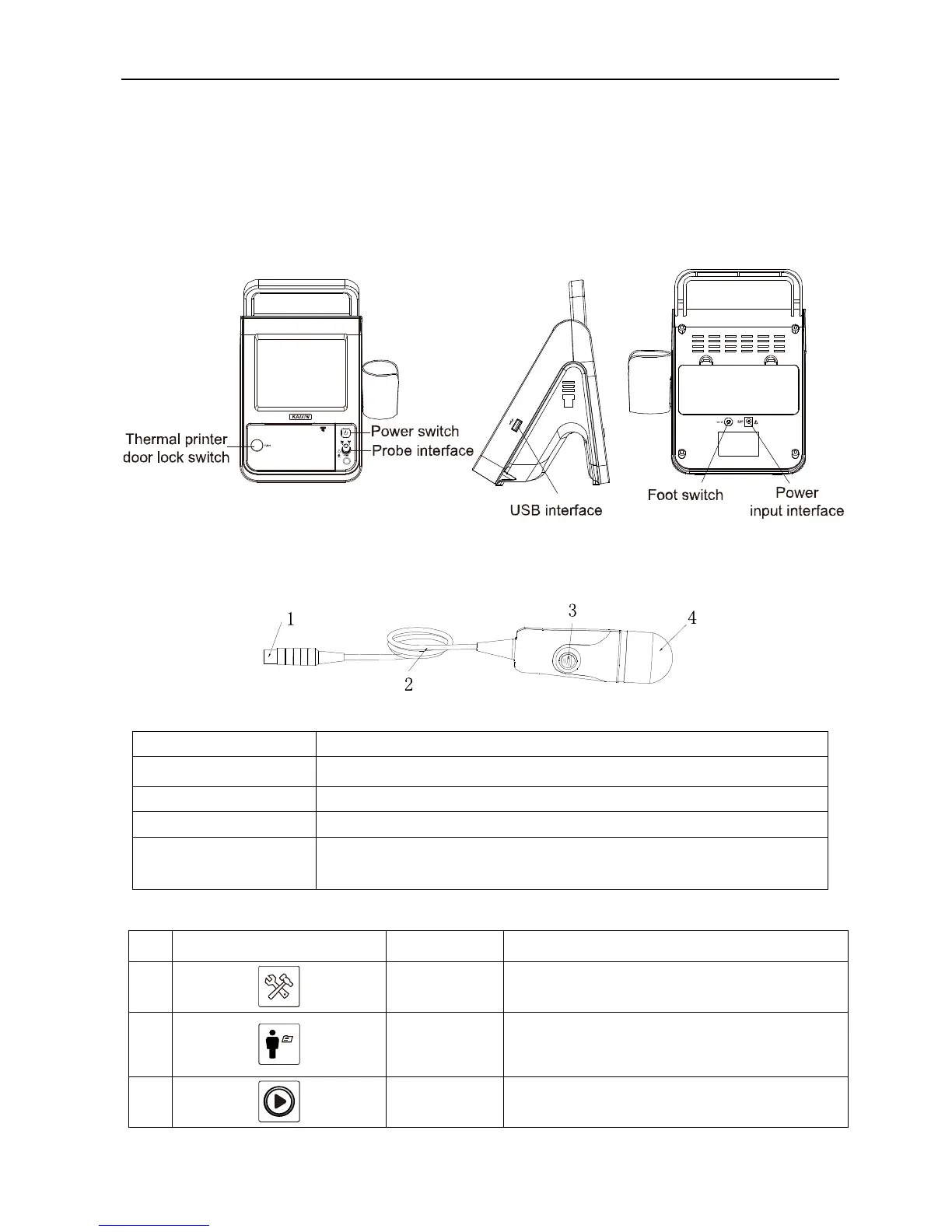

Fig. BVT01 sketch map
3.3 Parts of the probe
Fig. Parts name of 2.5MHz probe
Name Function
(1) Probe connector To connect the probe to ultrasonic diagnostic system.
(2) Cable To connect the probe to the probe connector.
(3) Scan key Press this key to start urine volume measurement.
(4) Acoustic lens
Use mechanical methods so that the sound beam transmitted by the
transducer can sector scanning for a certain angle.
3.4 Function keys description
SN.
Key symbol Key name Key function
1
System preset Touch the key to enter system setting interface;
2 New patient
·Access to the new patient module;
·Input the information and data for a new
patient;
3
Scan
Touch the key to start urine volume
measurement;
