4.8 Analogue Outputs (80-87)
MAXICAL
®
III can be supplied with a combination analogue and
relay module.

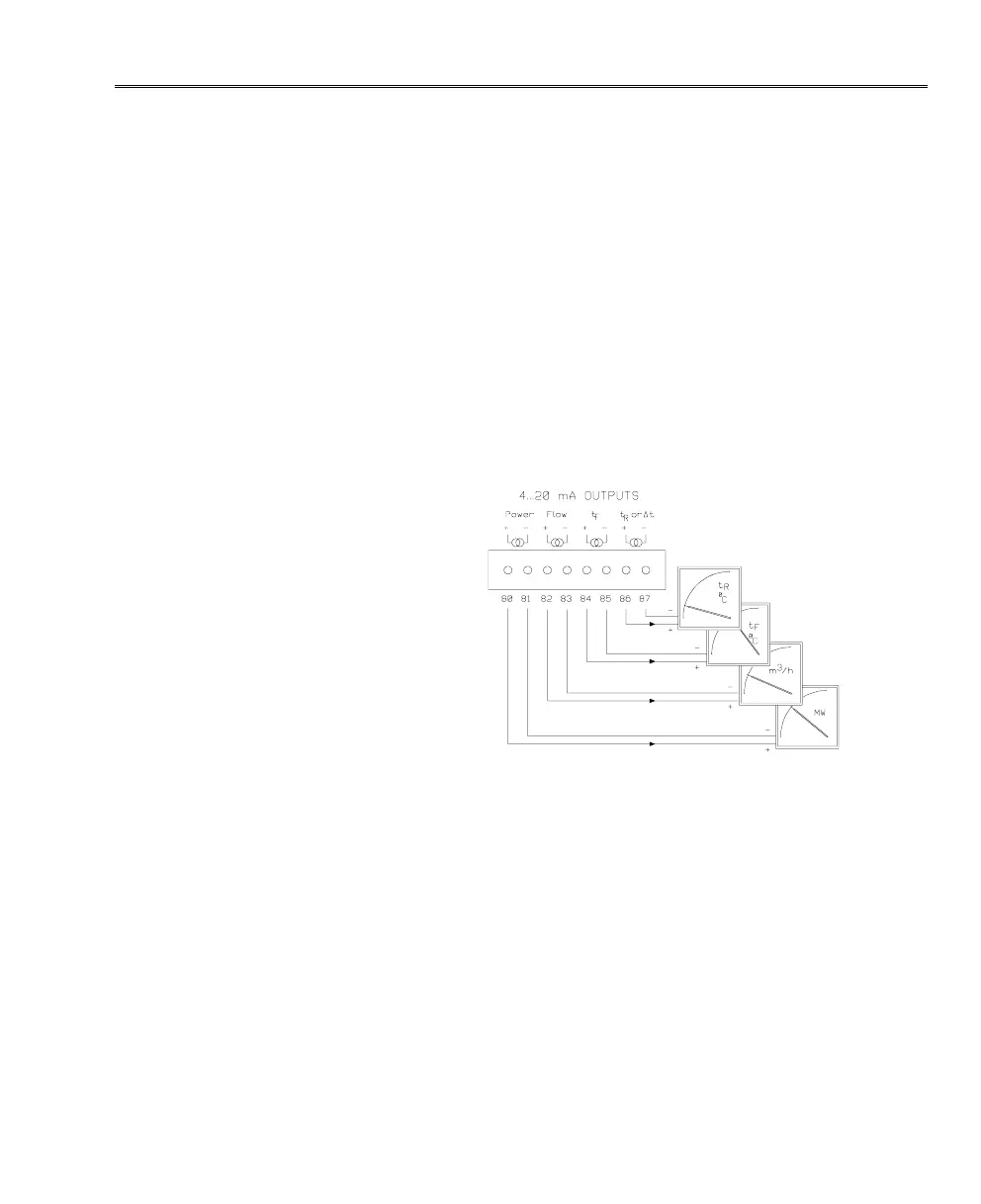

The four analogue outputs are active with a 4...20 mA output
signal and can bear a load of 0...500W . They are typically used for
remote display and registration.
When programming MAXICAL
®
III, select the fourth output
(terminal 86-87) as either return line or differential temperature.
All outputs have 4 mA, corresponding to zero. However, the
measuring range can be programmed using computer software,
type no. 66-99-210.
All outputs should - in consideration of EMC - be laid as a
complete cable - or couples via isolation amplifiers (please refer
to Kamstrup Proces’ data sheet P50 749 - Loop Isolator).
