MAXICAL
®
III 5511-229 GB/98.06/Rev. B1
22

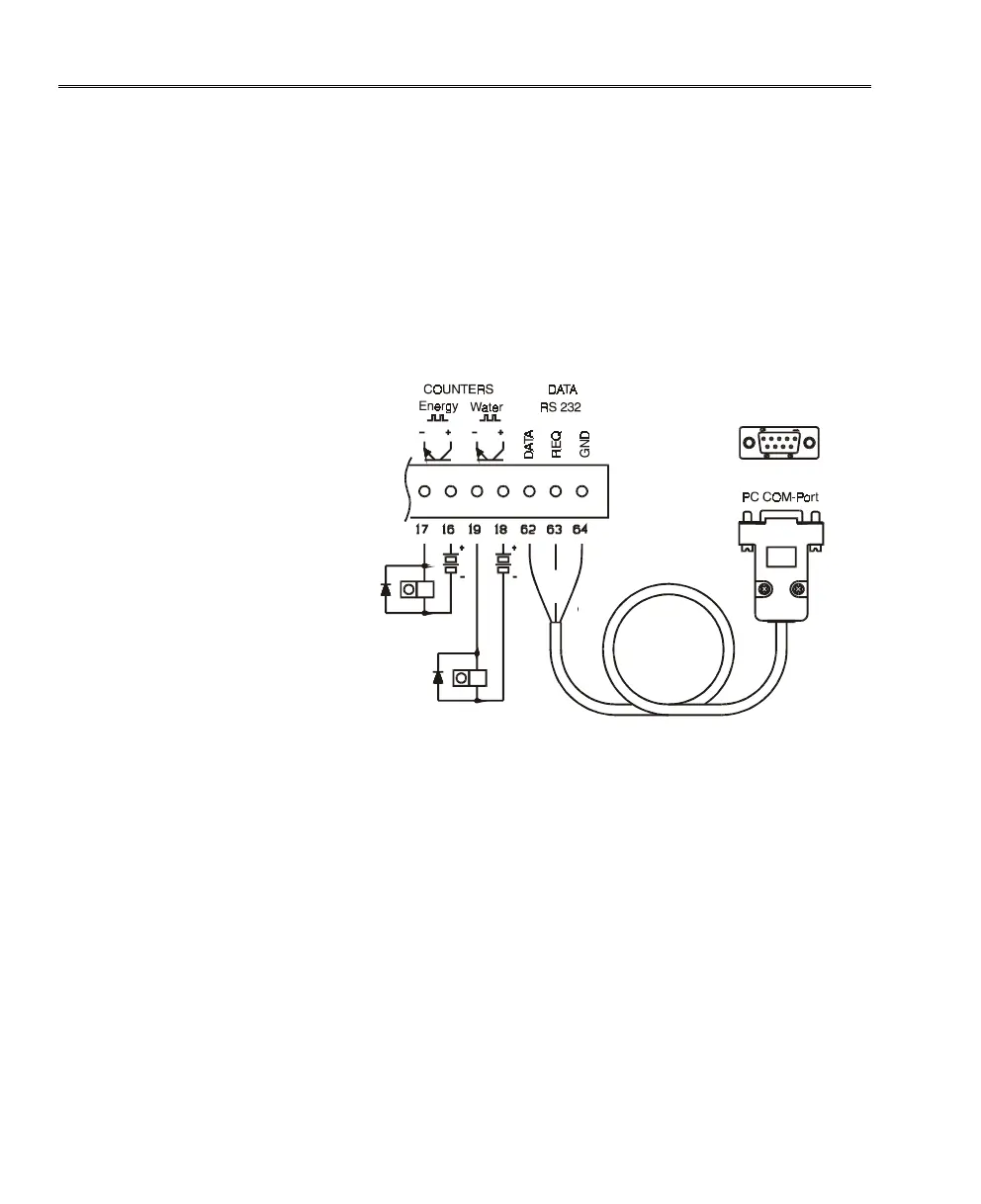

4.7 Pulse and Data Outputs (16-19) (62-64)
The pulse outputs for energy and water, on terminals 16-19,
normally emit one pulse for each display count, e.g. 0.01 MWh
and 0.1 m³ (please refer to the CCC tables in chapter 6).
Furthermore a 10:1 divider can be programmed (see chapter 6.8)
N.B: If an electromechanical meter is used a diode has to be
connected in parallel above the coil. We recommend the type
1N4007 or similar.
Brown
White
Green
Data outputs on terminals 62-64 are used for reading days data,
target date, verification data etc. The data output can also be used
for programming and configuring the meter - in the same way as
described for the optical eye.
The output communicates passively/in serial with 1200 Baud and
can be connected to the COM-port on a computer by means of a
data cable (type no. 66-99-106 - which includes the necessary RS-
232 adapter).
