MAXICAL
®
III 5511-229 GB/98.06/Rev. B1
6

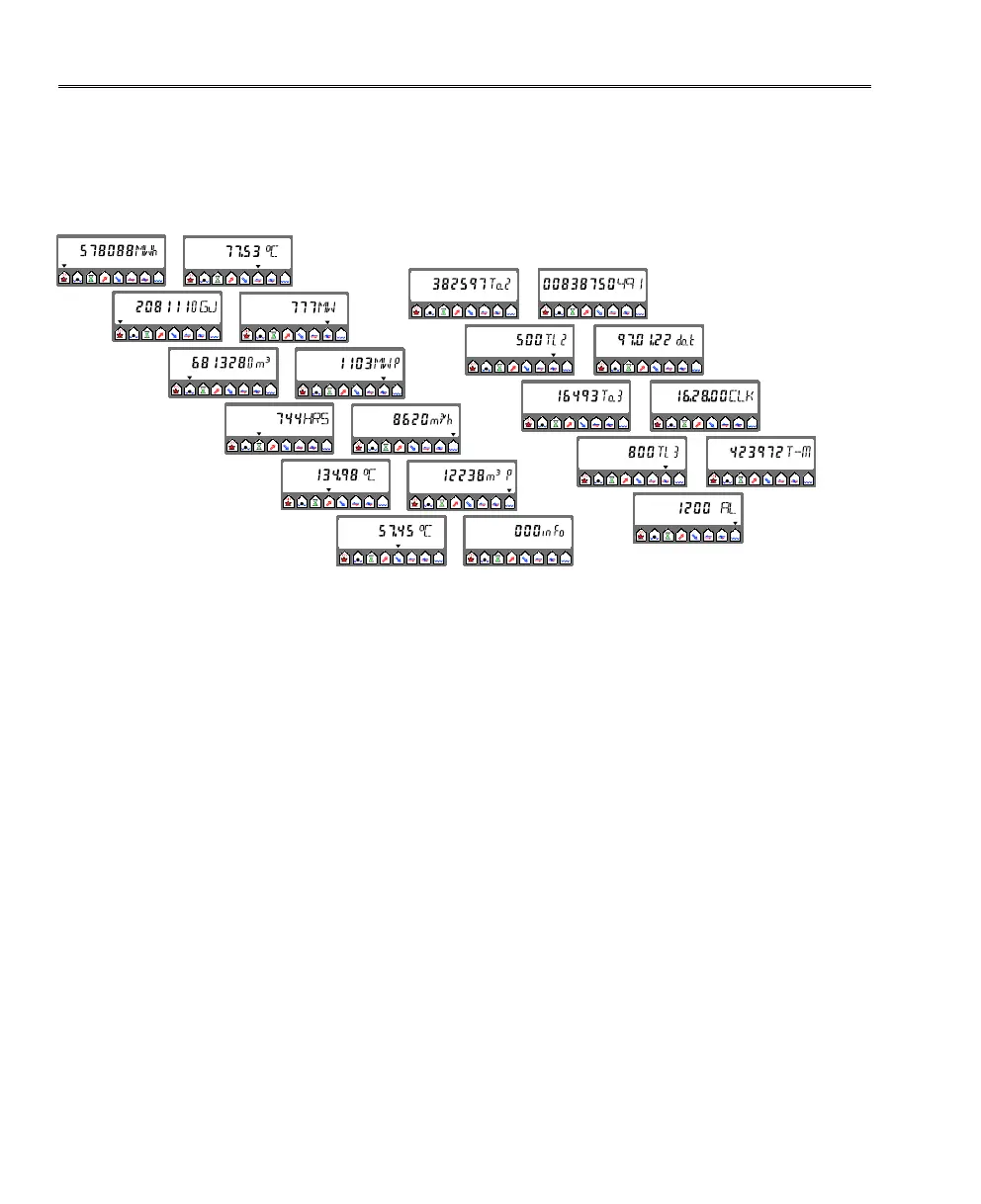

Press the right or left key, as appropriate, to move from one
displayed value to another. Note that only values selected during
configuration can be displayed [DD].
1) The peak value displayed is the highest average of 1...120
minutes actual values recorded over the last 24 hour period.
The average period can be programmed. Depending on the
programming, either peak power or peak flow will be dis-
played.
2) The tariff or alarm type selected will be indicated by an
arrow at t
F
, t
R
, Dt, power or flow as appropriate.
N.B.:
The display will revert automatically to showing accumulated
energy consumption approx. 8 minutes after the key has been
depressed.
