Kamstrup MULTICAL 402 - 4.2 Mounting of flow sensor

4.2 Mounting of MULTICAL® 402
90° 90°

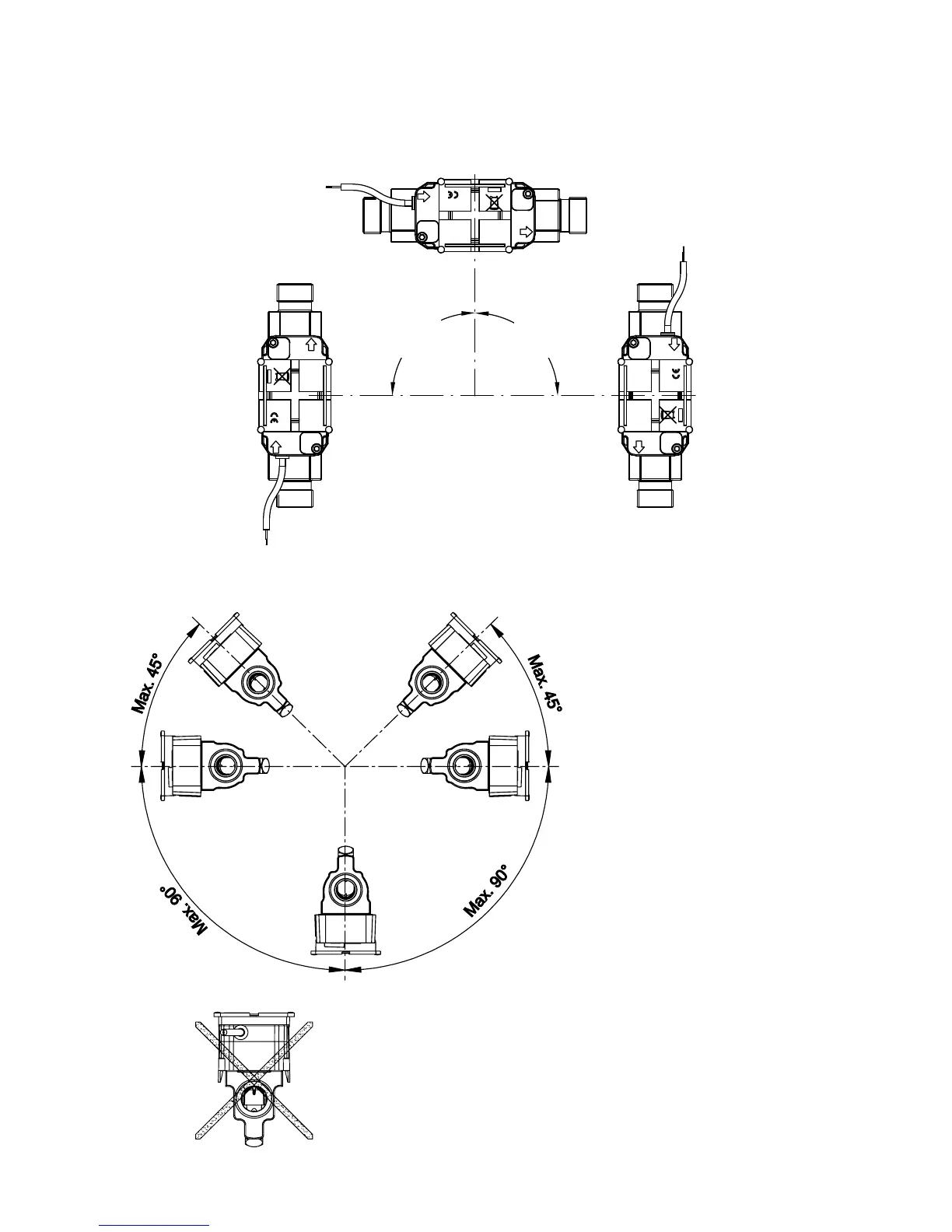

MULTICAL® 402 can be mounted
vertically, horizontally or at an angle
MULTICAL® 402 must not be mounted
with the plastic box pointing upwards
MULTICAL® 402
may be turned up
to max. 45° and
downwards for max.
90° in relation to the
pipe axis.
10
