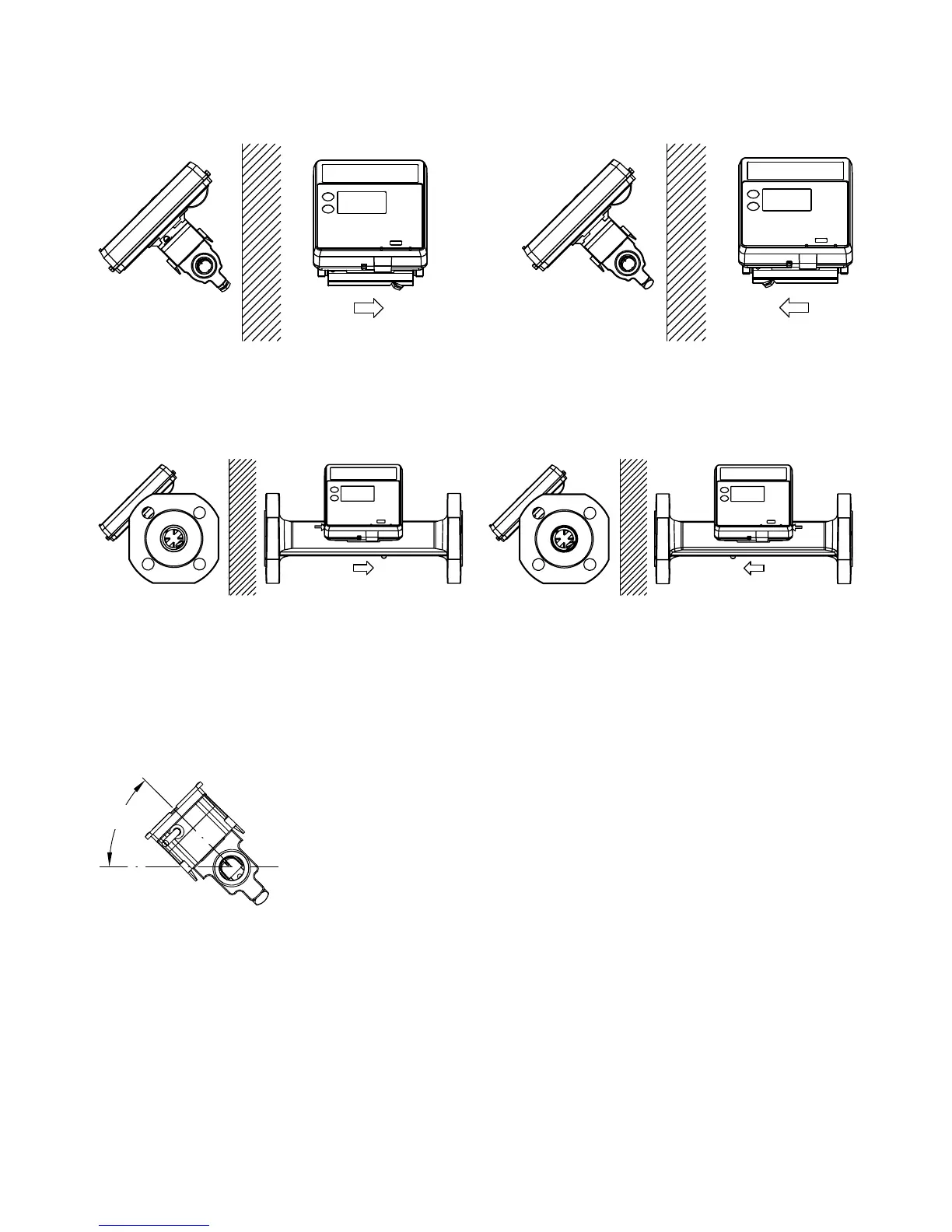

4.3 Installation examples
Threaded meter:
Flange meter:
4.3.1 Humidity and condensation
If MULTICAL® 402 is installed in moist environments, it must be turned
45° relative to the pipe axis as shown in the drawing below.
Flow from the left
Flow from the right
Flow from the left
Flow from the right
45°
If there is risk of condensation,
e.g. in cooling systems, a condensation protected
MULTICAL® 402 must be used.
