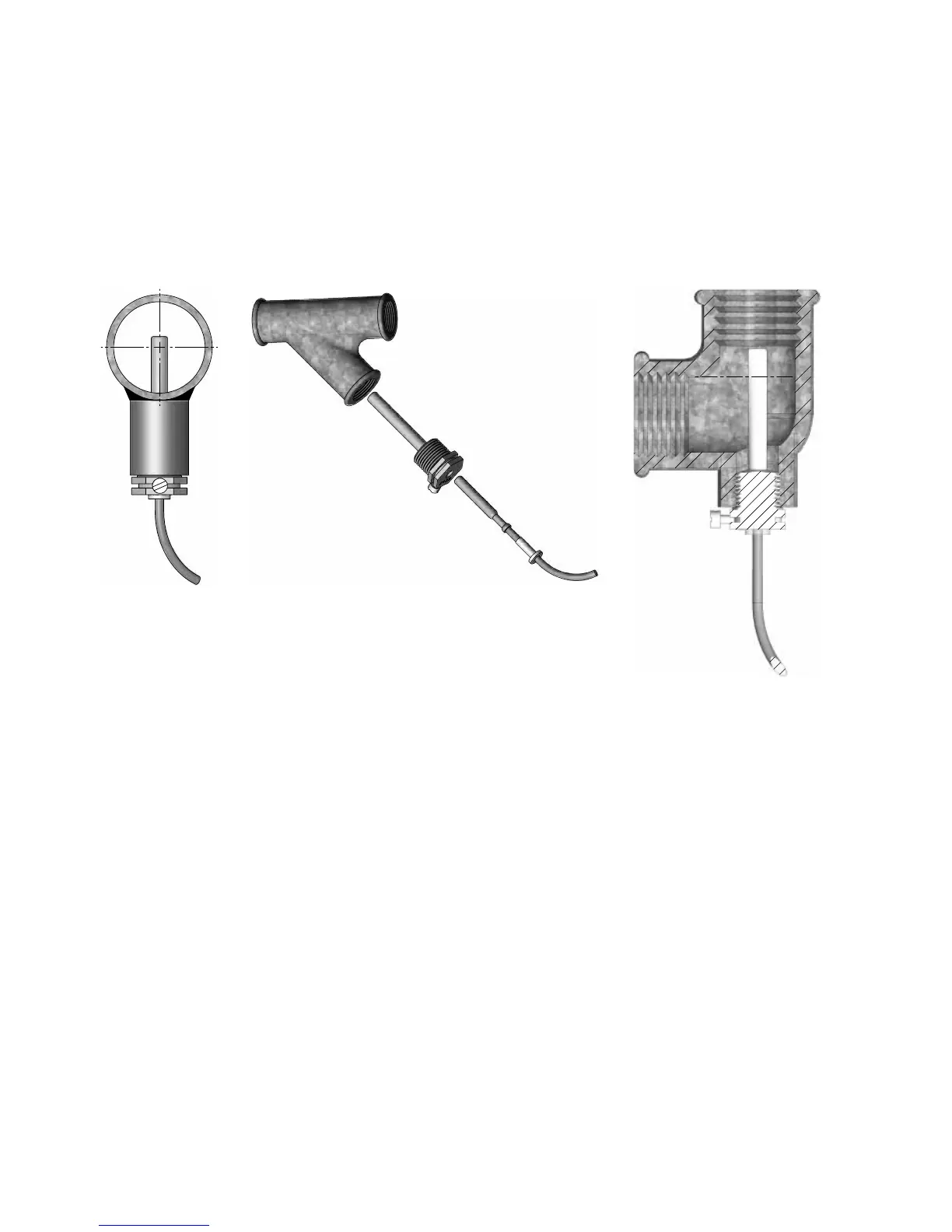

2.2 Pocket sensor (PL)
The sensor pockes cn be mouned in e.g.  welding sleeve or in  45° lerl Y-piece. The ip
of he sensor pocke mus be plced in he middle of he flow. Push he emperure sensors s
deep s possible ino he pockes. If  shor response ime is required, “non-hrdening” hermlly
conducive pse cn be used. Push he plsic sleeve on he sensor cble ino he sensor pocke
nd secure he cble by mens of he enclosed M4 seling screw. Fsen he screw wih your
fingers only. Sel he pockes using sel nd locking wire.
A
A
B
B
B
B
SECTION
B-B
SCALE
1 : 1

Kamstrup MULTICAL 403 Specifications

General

Type	Ultrasonic Heat Meter
Flow Sensor	Ultrasonic
Pressure Rating	PN16
Battery Life	Up to 16 years
Approval	MID Class 2
Display	LCD
Communication	M-Bus, Wireless M-Bus, Modbus, BACnet
Power Supply	Battery
Accuracy	Class 2
Protection Class	IP54
Housing Material	Composite
Flow Rate Range	0.6 m3/h to 15 m3/h
