KANEXPRO MX-HDBASE4x4-4k
14 | P a g e
can control far-end output displayer via its IR remote from local.
In that case, the IR signal is transferred via twisted pair. Only the corresponding IR
OUT port can emit control signals to the remote display.

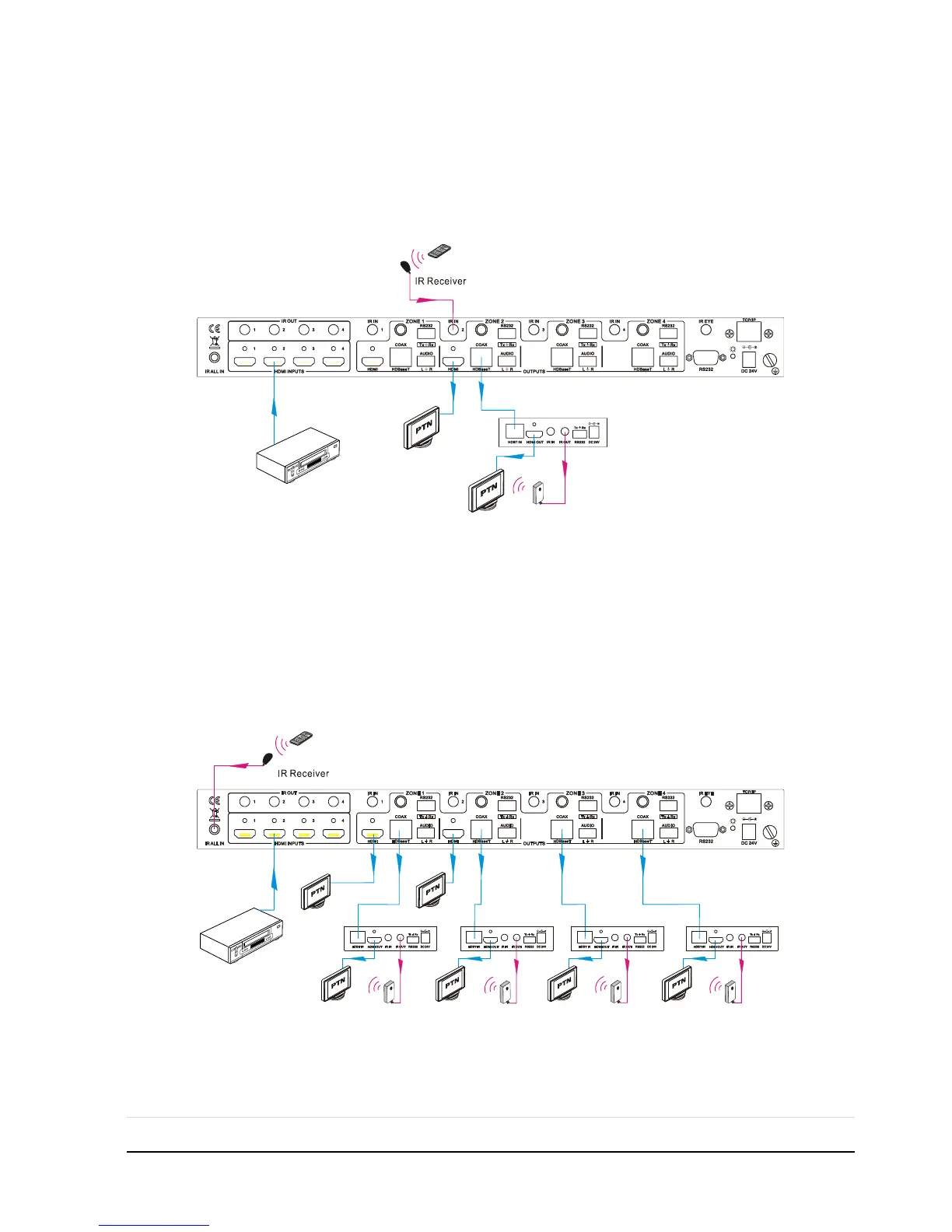

See the figure below:
Control far-end device from Local
Note: The IR receiver connected to IR IN must be with IR carrier
1 to All: (through IR ALL IN)
Connect an IR receiver to the IR ALL IN port of MX-HDBASE4X4-4K, the IR signal
received from IR ALL IN port will be transmitted to all the 4 connected far-end HDBT
receivers. See as below:
Control far-end device through IR ALL IN port
Note: Send command “%0901.” to enter infrared carrier enforcing mode if the IR
Receiver connected to IR ALL IN is not with carrier.
