Control the switcher& 3rd-party Device through 9 pin female RS232 port
Control the switcher: send RS232 commands directly
Control 3
rd
party: send command: “/+[Y]/[X]:******.” (Refer to for detailed
information.)
4.3.3 Control through 3-pin RS232 port
Control 3rd party device from local
Connect the RS232 (3-pin pluggable terminal block) port in any zone to PC, and
connect the controlled RS232 device (3rd party device) to the corresponding (same
zone as PC) receiver, see below:

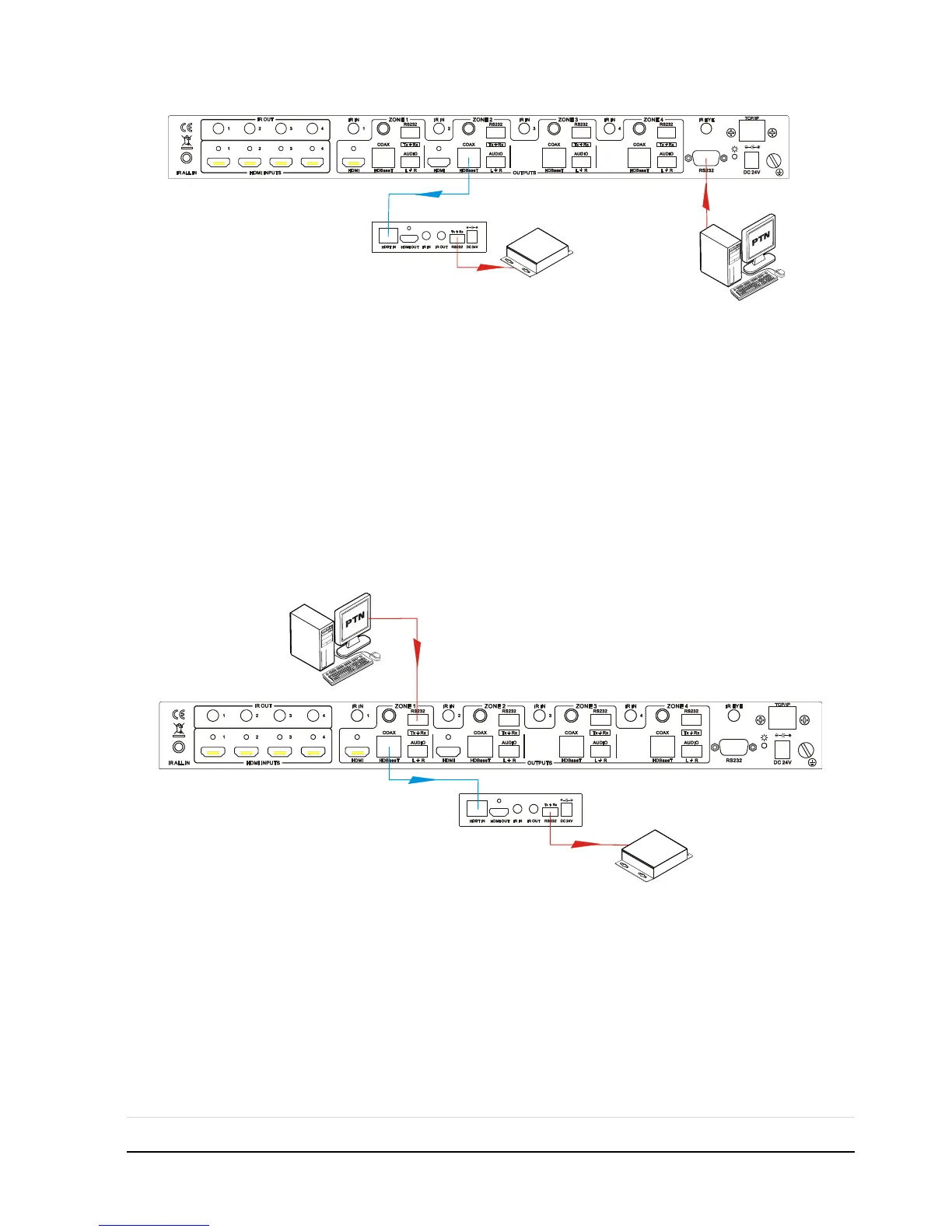

Control 3rd party device from local
Control 3rd party device from remote
Connect the RS232 (3-pin pluggable terminal block) port in any zone to controlled
device (3rd party device), and connect PC to the corresponding (same zone as
controlled device) receiver, see below:
