INSTALLATION MANUAL OPERATION MANUAL INSPECTION LOG
KANNAD 406 AF-COMPACT
PAGE: 3
FEB 01/2008
2. KANNAD 406 ELTs Presentation
The KANNAD 406 AF-COMPACT belongs to the AF type of ELTs which are
permanently attached to an aircraft. The KANNAD 406 AF-COMPACT is
designed to be installed on fixed wing aircraft or helicopters.
The KANNAD 406 AF-COMPACT Pack is composed of:
1. a transmitter (P/N S1840501-01);
2. a mounting bracket (P/N S1840502-01);
3. an RC200 remote control panel (P/N S1820513-11);
4. a DIN-12 connector (P/N S1820514-03);
5. a SUB D 9 Pts Female connector (P/N S1840506-01).
The approved outside whip (P/N 0141013) or rod (P/N 0124220) antennas are
purchased separately.
The transmitter and bracket are installed in the aircraft near the tail. The outside
antenna is mounted on the fuselage near the tail. The remote control panel is
installed in the cockpit and connected to the ELT with a 3-wire bundle (not
supplied).

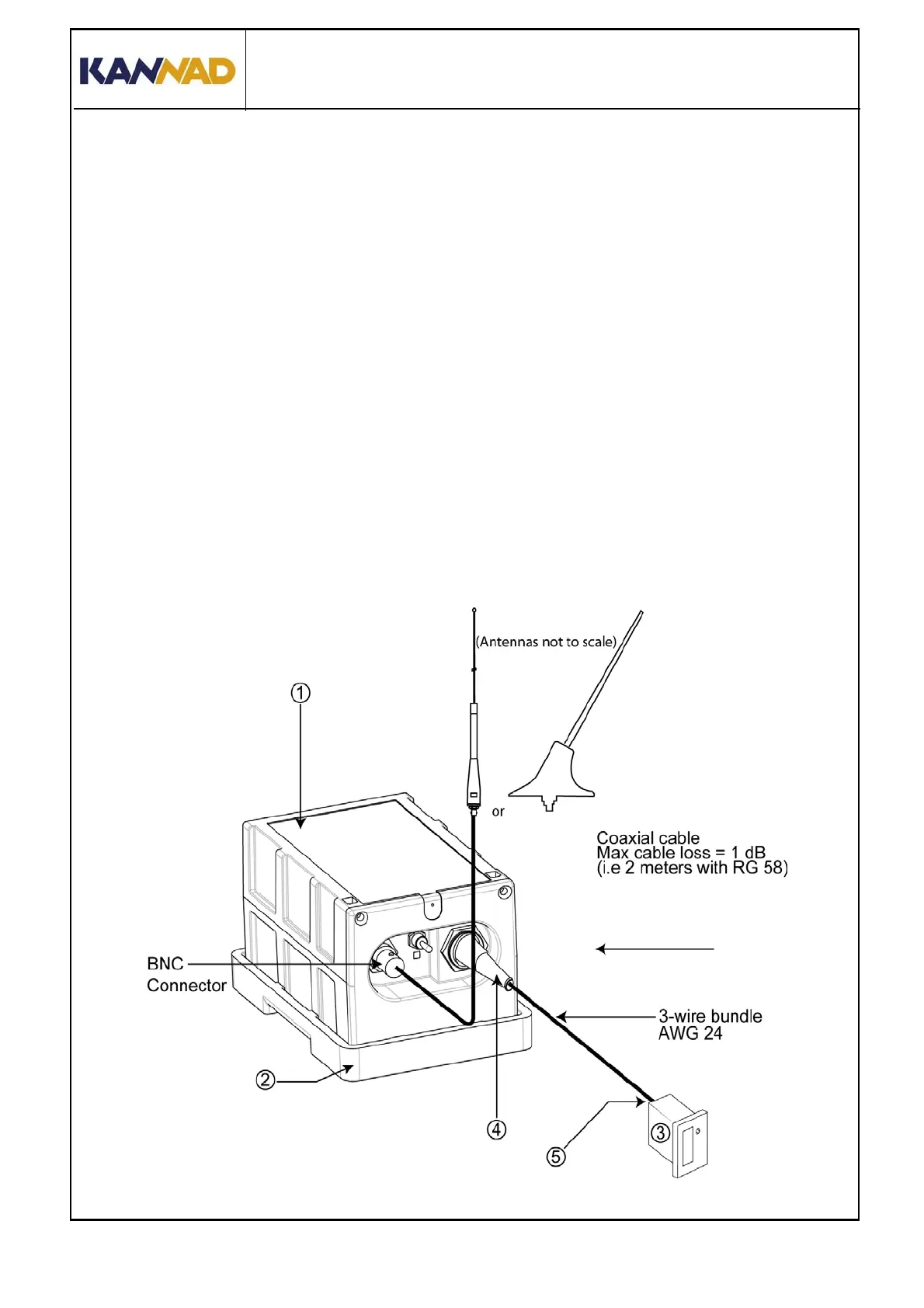

Figure 2: ELT system description
