INSTALLATION MANUAL OPERATION MANUAL INSPECTION LOG
KANNAD 406 AF-COMPACT
PAGE: 6
FEB 01/2008
D. Outside antenna
The outside antenna can be either of whip (ANT200, P/N 0141013) or rod
(ANT300, P/N 0124220) type according to aircraft speed.
Connection to the ELT will be carried out with a 50 Ohm coaxial cable (RG58
for example) ended with a male BNC connector.
IMPORTANT NOTICE: KANNAD recommends a cable with radio electric
properties similar to those of a RG58 cable.
Note: the 50 Ohm coaxial cable and the male BNC connector are not supplied.

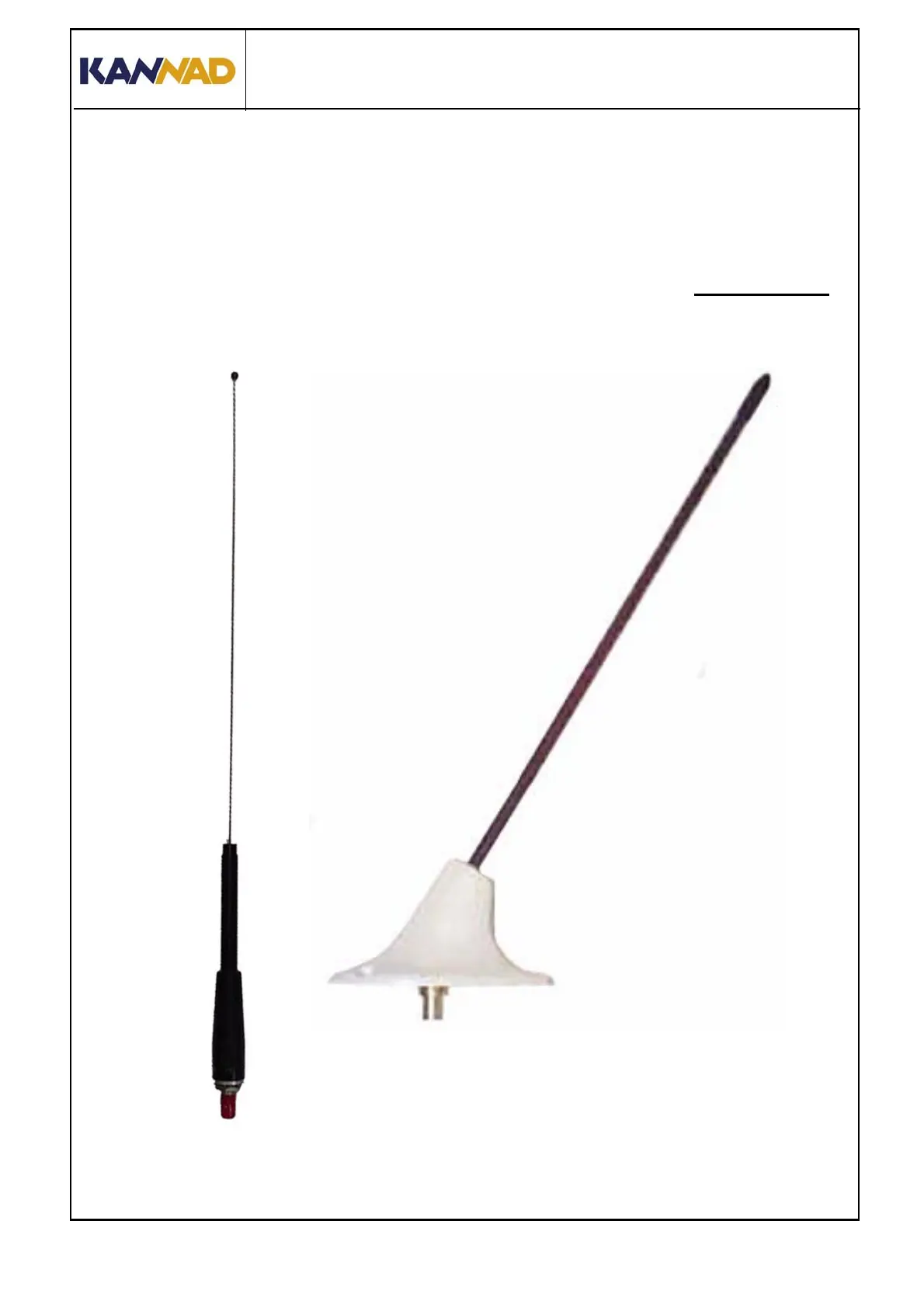

Figure 6: Whip and rod antennas
ANT300, Rod Antenna
ANT200, Whip Antenna
