2. Remote Control Panel RC200 Functional Description
A. General
The RC200 Remote Control Panel is designed to be installed in the cockpit to
enable the pilots to control the ELT onboard.
The RC200 enables the remote control of the primary functions of the KANNAD
Emergency Locator Transmitters (Manual activation, Reset, Test) as well as
visual monitoring.
B. RC200 Controls and Connector
The following elements are to be found on the RC200 Remote Control Panel:
1. On / Armed / Reset-Test, a 3-position switch.
2. Red led annunciator.
3. J1, single male 9-pin D-SUB connector.
4. Warning stating: FOR AVIATION EMERGENCY USE ONLY.
UNAUTHORIZED OPERATION PROHIBITED.

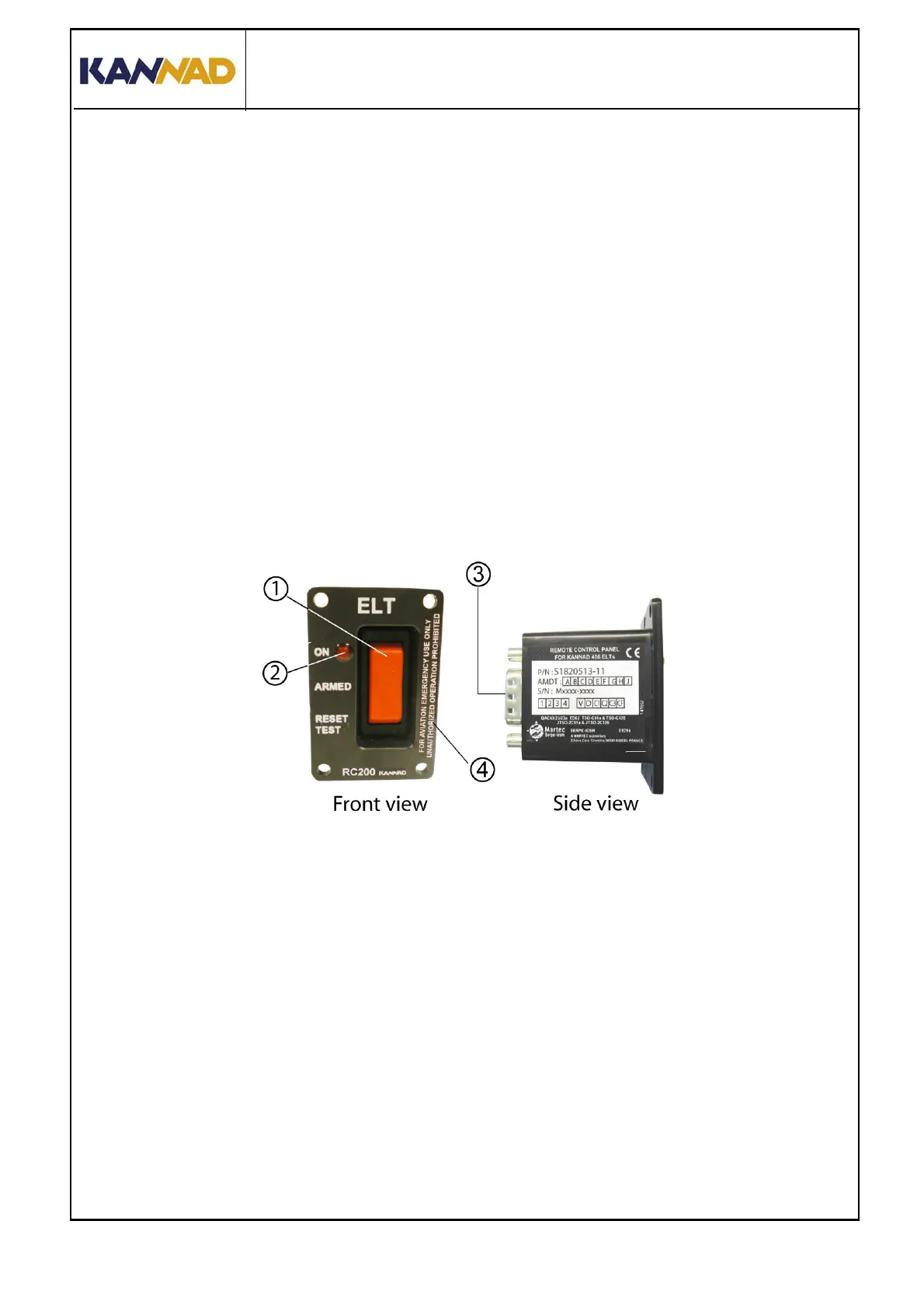

Figure 102: RC200, Controls and Connectors
