INSTALLATION MANUAL OPERATION MANUAL INSPECTION LOG
KANNAD 406 AF-COMPACT
PAGE: 214
FEB 01/2008
8. Removal
1. Switch the ELT to OFF.
2. Disconnect the outside antenna from the BNC connector of the ELT.
3. Disconnect the DIN 12 Connector of Remote Control Panel 3-wire
bundle from the DIN12 socket of the ELT.
4. Unfasten the self-stripping strap.
5. Remove the transmitter from the bracket.

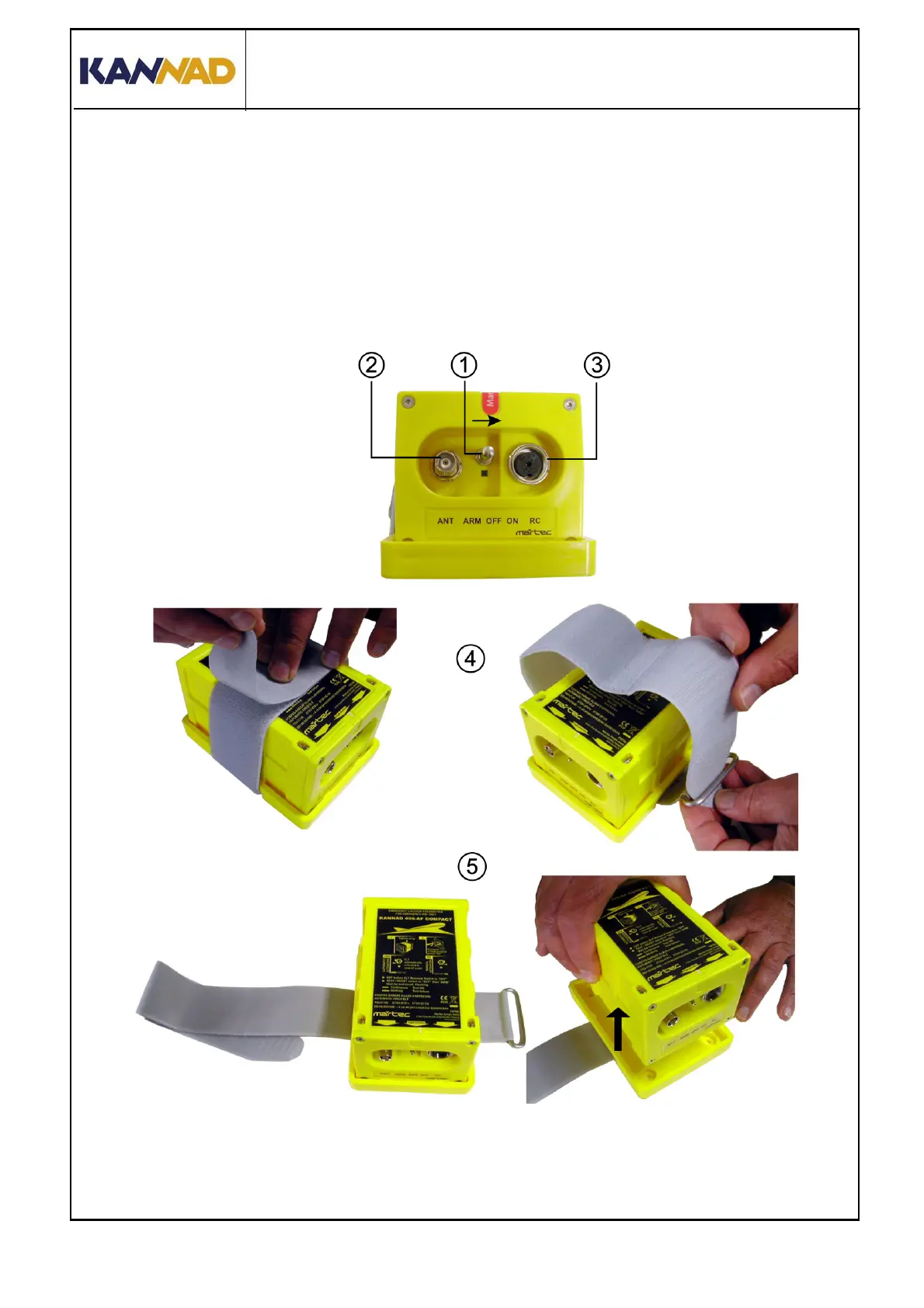

Figure 209: Removing the transmitter
