Operating Instructions | KBL 4800 alpha
22

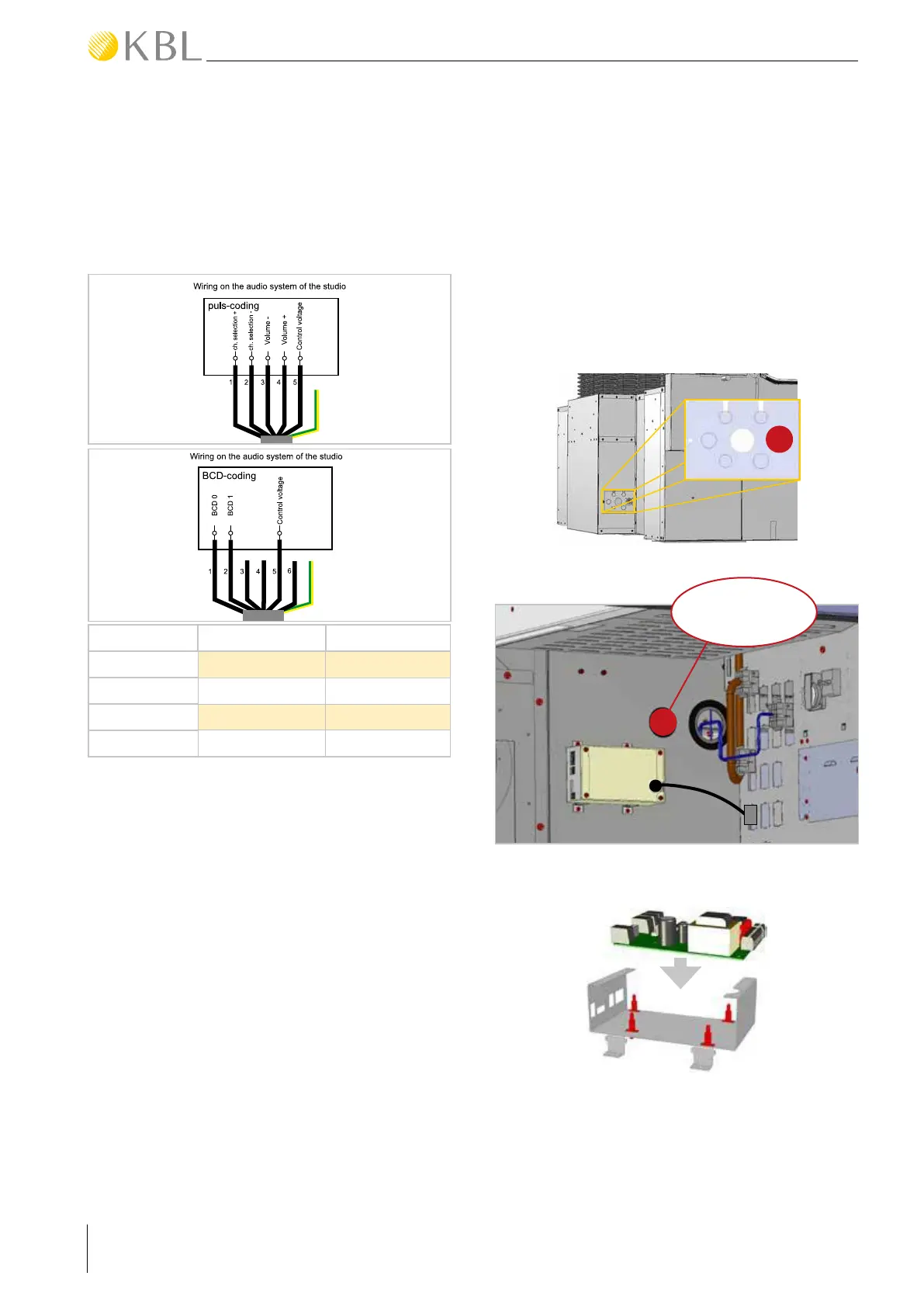

5.9 Connecting the channel
selection
The following diagrams show the wiring of the chan-
nel selection on the audio equipment’s side, for pulse
coding as well as for BCD coding.
CHANNEL BCD 0 BCD 1
1 0 0
2 1 0
3 0 1
4 1 1
5.10 Connecting the external
timer
Pass both, the connector cable of the T-Max timer
and the leads of the tanning device, from the main
port through the cable entry in the rear wall to the
T-Max Box.
T-MAX CABLE ENTRY AT THE MAIN PLUG
(EXTERNAL CONNECTOR CABLE)
POSITION T-MAX BOX
Cable entry for
external connector
cable
T-MAX BOX
• Remove the cover from the T-Max Box.
• Insert the T-Max board to the socket pins of the
box.
