10.11 Interior unit lighting
The decorative lighting of the tanning device consists
of the following components.
• In addition to the UV tubes in the canopy, a decora-
tive fluorescent tube is affixed.
• In the canopy (eyes) are two fluorescent tubes
installed.
• Additionally, a fluorescent tube is affixed in the
front side of the bed.
A
B
C
A
Fluorescent tube in the tanning room.
B
Fluorescent tubes in the canopy (eyes
lighting).
C
Fluorescent tube in the bed.
If a defect, please change the decorative fuorescent
tubes according to the following instructions:

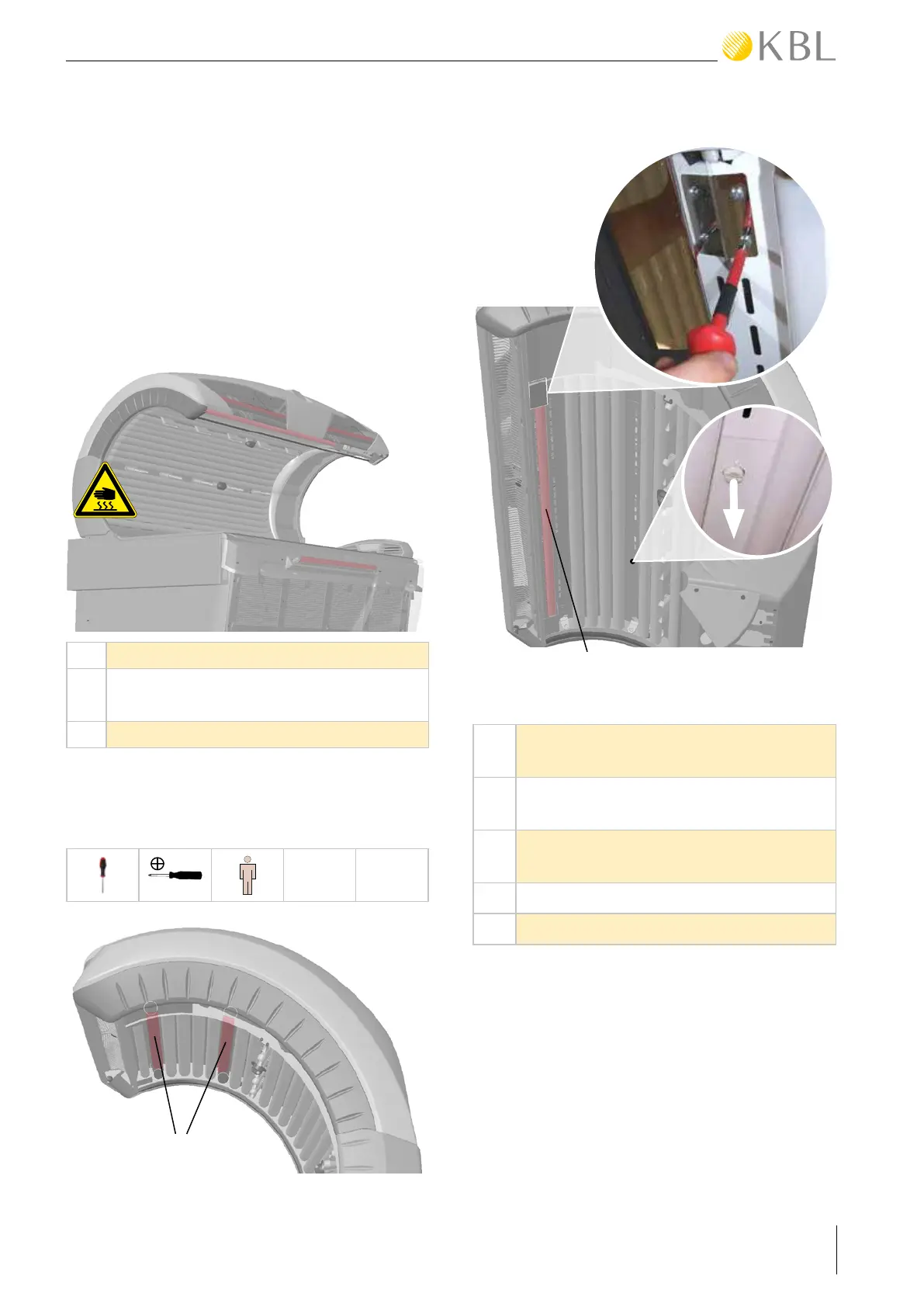

A FLUORESCENT TUBE IN THE TANNING ROOM
4
PH2
↵
⑱
⑲
㉑
⑳
⇒
Tilt the canopy pane down.
⑱
Unscrew the first and sixth UV tube.
⑲
Remove one of the panels of the tube.
⑳
Replace the fluorescent tube.
㉑
Replace the starter.
