Operating Instructions | KBL 4800 alpha
46

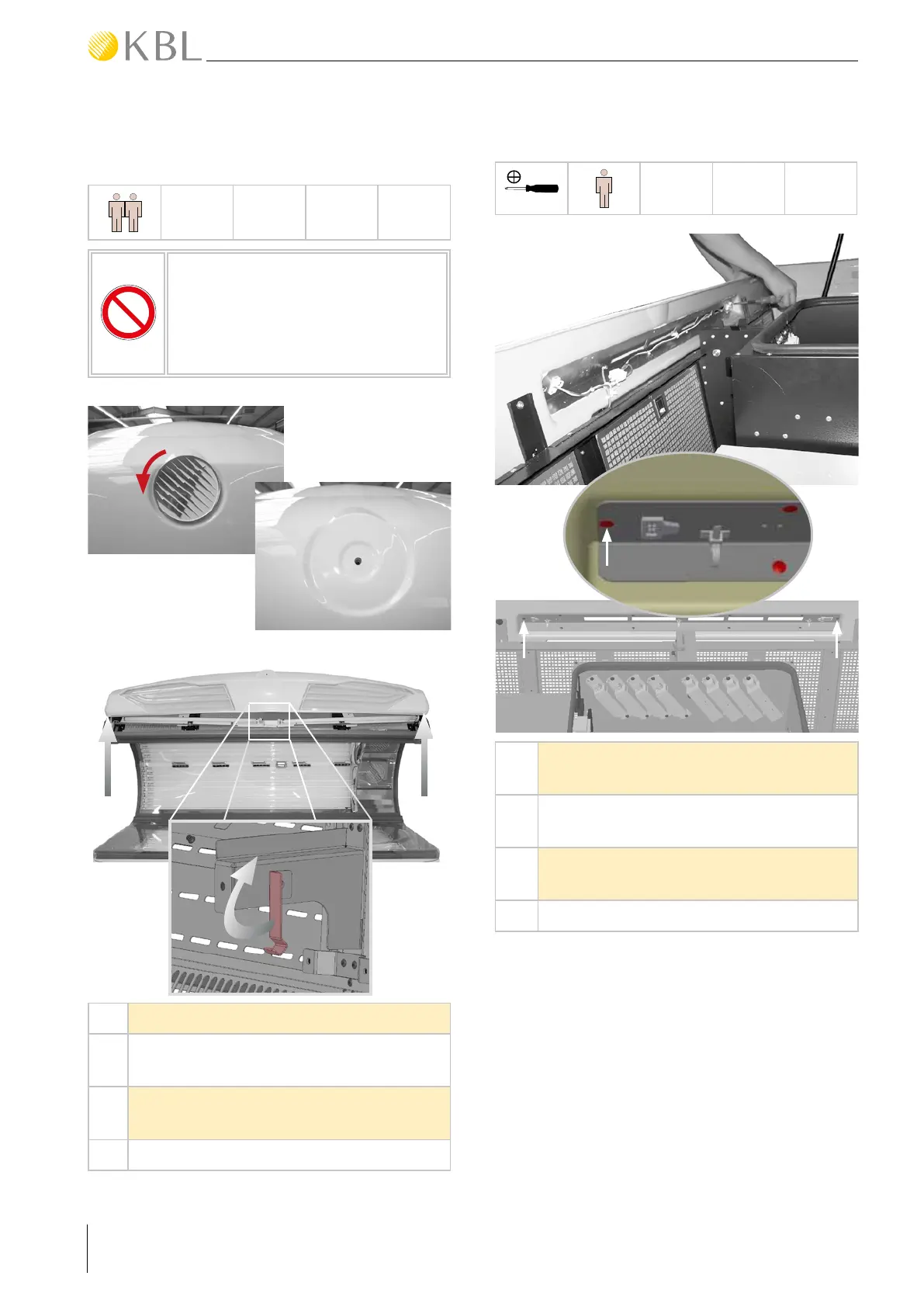

B FLUORESCENT TUBES IN THE CANOPY
(EYES LIGHTING)
↵
Risk of destruction
On your device, the manufacturer‘s
logo is screwed not glued. Before
removing the ceiling panel first the logo
must be removed.
㉒
㉓㉓
㉔
㉒
Unscrew the manufacturer's logo.
㉓
With the help of a second person, carefully lift
the canopy cover at the fornt angles.
㉔
Secure the canopy cover with the integrated
spacer.
⇒
Replace tubes and starters.
C FLUORESCENT TUBE IN THE BED
PH2
↵
㉕
㉕ ㉕
⇒
Open the bed pane.
㉕
Remove two phillips screws on the outer
tube mounting strip.
⇒
Pull tube mounting strip out of the front
panel.
⇒
Replace tube and starter.
