Operating Instructions | KBL 4800 alpha
40
Close
Open
⑤
⑤

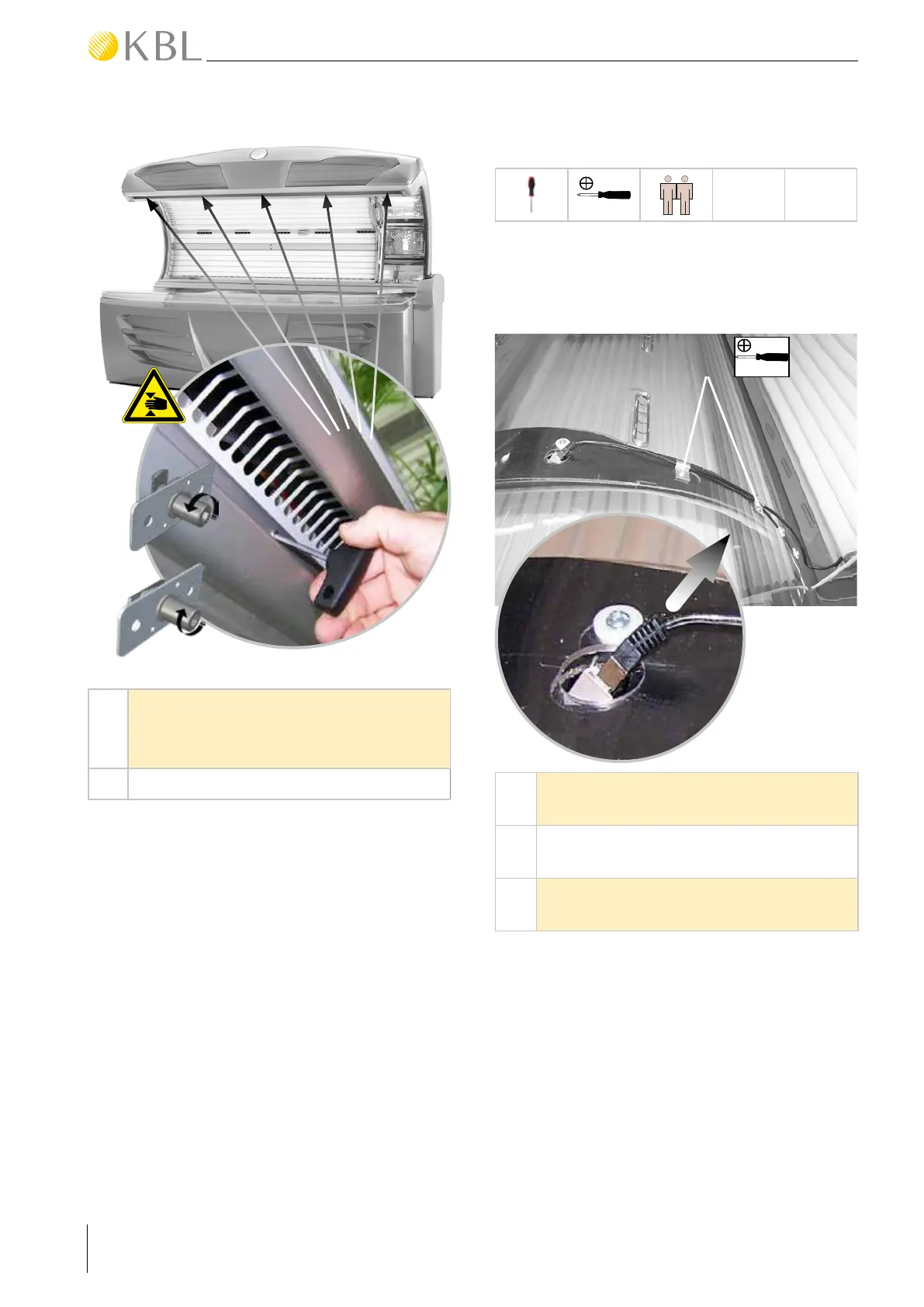

Open the 5 locking spigots by using the hex-
agon socket screwdriver supplied. Observe
the order!
⇒
Tilt the pane down.
REMOVING THE CANOPY PANE
4
PH2
↵
It is not usually necessary to remove the canopy pane
for maintenance and cleaning operations. Should
you prefer to work with the canopy pane removed,
though, please proceed as follows:
⑥
⑦
⑦
PH2
⇒
Tilt the canopy pane down.
⑥
Remove the strain relief of the interior control
panel cable (Phillips screw M4).
⑦
Detach the interior control panel cable.
