KE2 Compressor Sequencer OEM pn 21768
Quick Start Guide
If no Aux Relay Boards are being utilized, and Compressor
Conguration is set to Single Group, relays can be designated
from the Setpoints page of Group 1.
Otherwise, relays and any additional inputs are designated
from the Aux Relay Board interface.
Single Group - Main Board Only

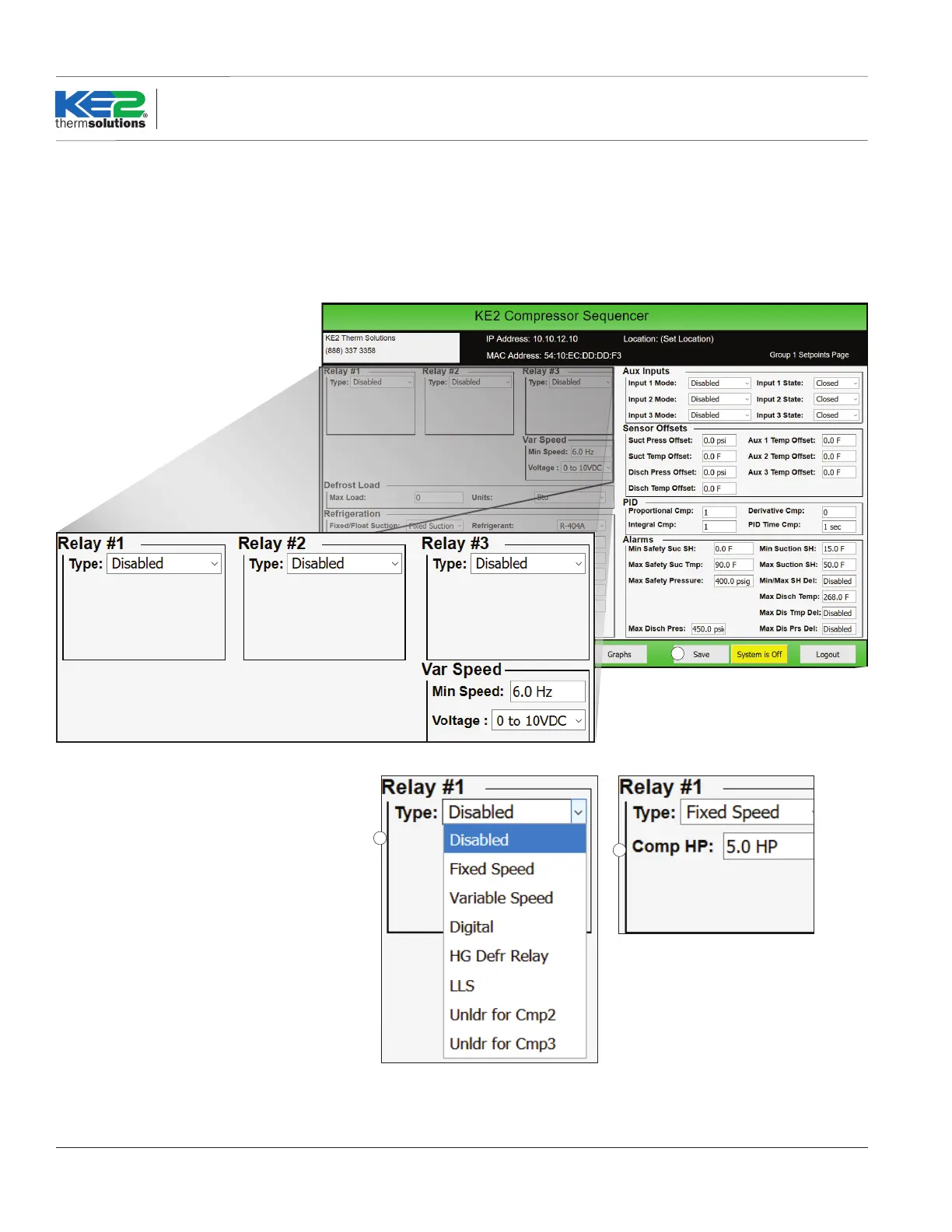

❶ Select the function of each relay,
 then click the Save button at the bottom of
the page.
❸ Once saved, Comp HP will appear below any
relays selected as a compressor. Enter the
correct horsepower for each compressor,
then click the Save button again.
Designang Relay Funcon:
Compressors, Unloaders, LLS (Liquid Line Solenoid) or Hot Gas

❶
❸
