KE2 Compressor Sequencer OEM - Aux Relay Interface for Relay Designation

Q.2.60 March 2019
Page 17
© Copyright 2019 KE2 Therm Solutions, Inc., Washington, Missouri 63090
KE2 Compressor Sequencer OEM pn 21768
Quick Start Guide
Single Group/ Dual Group + Aux Boards
When using Aux Relay Boards, the relays and
any additional inputs can be assigned in the in-
terface for the Aux Relay Board.
❶

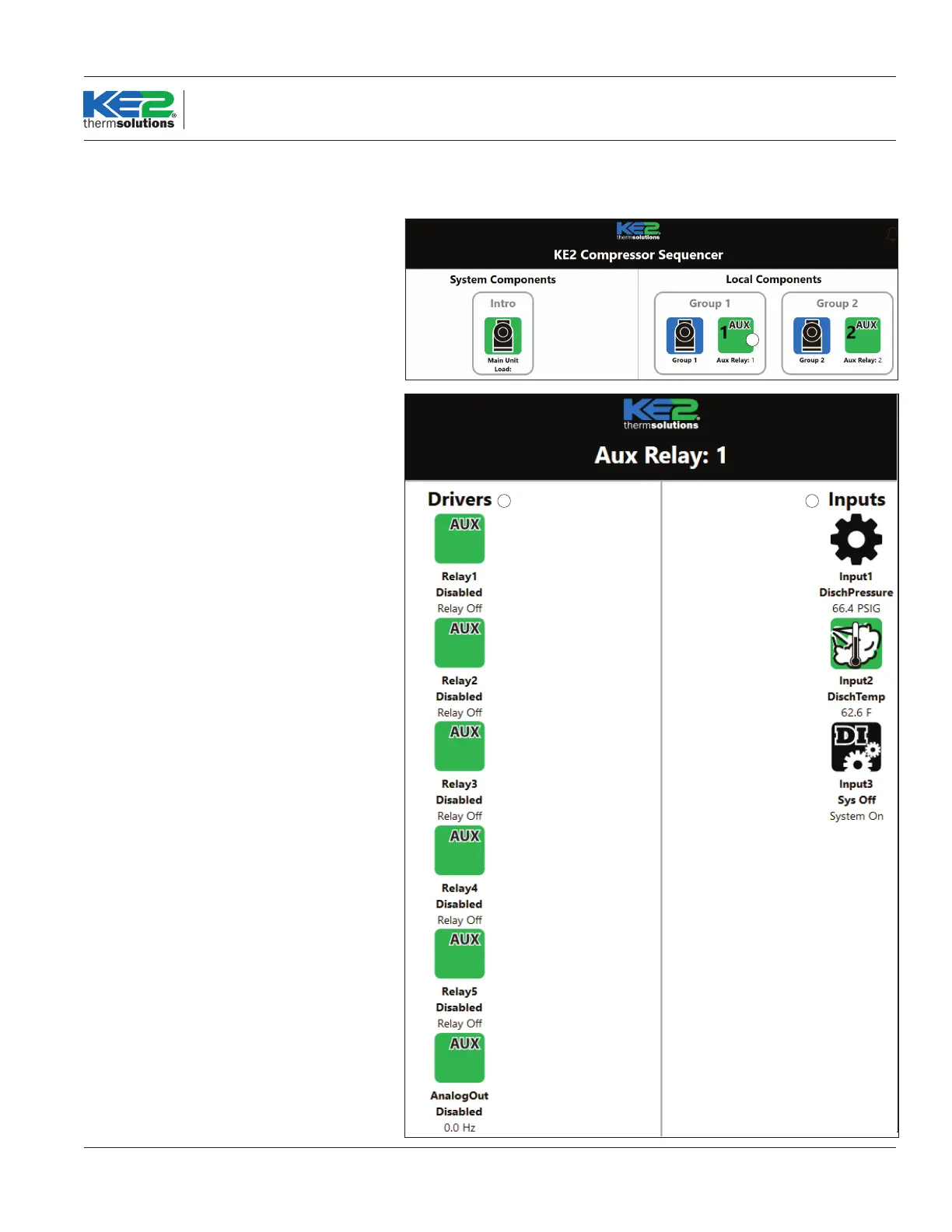

From the Home Page click on the icon for the Aux
Board:
❶
❷ On the Aux Relay interface, Drivers (relays) are listed
to the left.
❸ Inputs are listed to the right.
❷ ❸
