KE2 Compressor Sequencer OEM pn 21768
Quick Start Guide

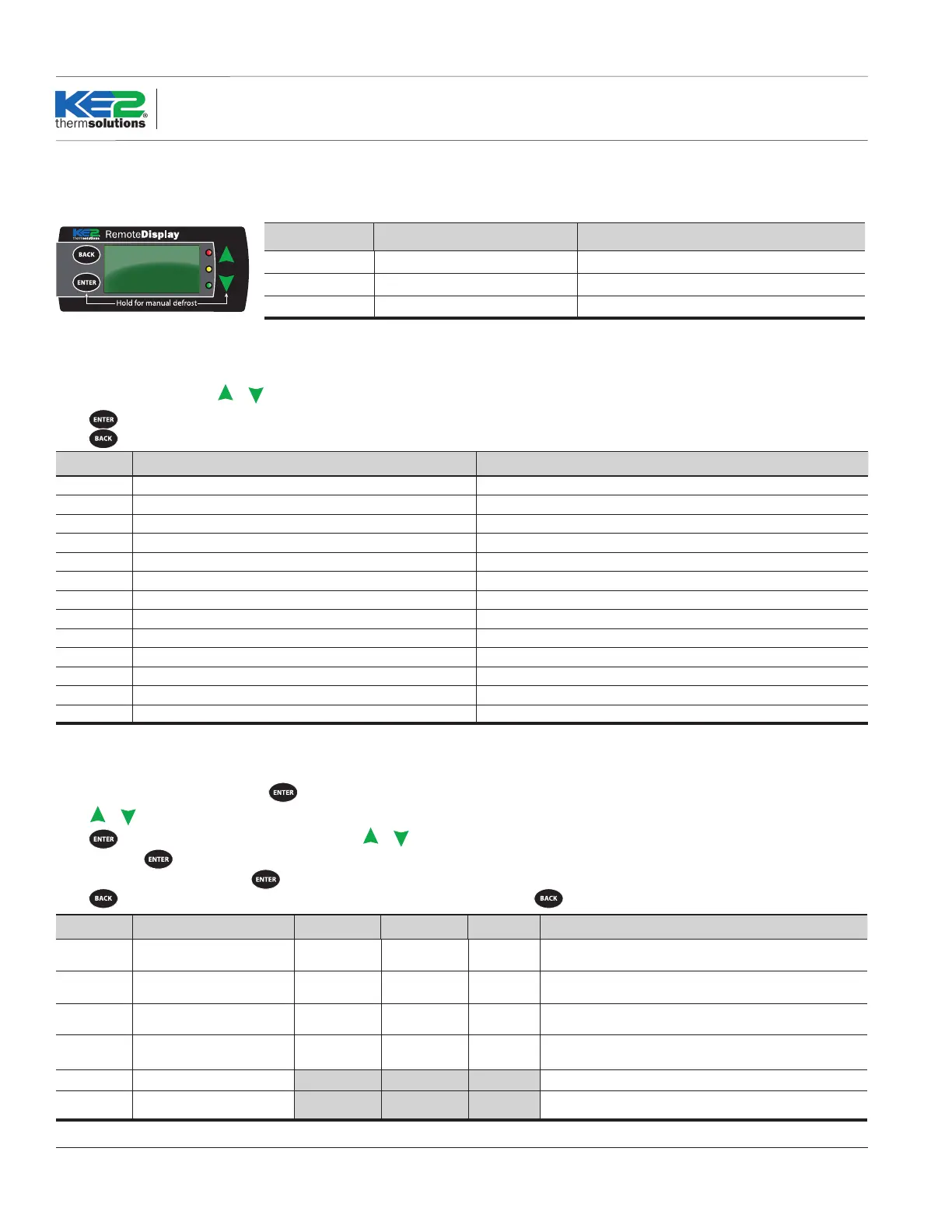

Remote Display - Variables Menu - Single Group
When not in a menu, press or to go through the Variables abbreviations.
Press to view a Variable in real time.
Press
to return to the previous screen.
Abbrev. Full Name Descripon
Prs  Sucon Pressure as read by the controller.
SUt  Sucon Temperature as read by the controller.
SAt  Saturated Sucon Temperature as calculated by the controller.
SHt SUPERHEAT Sucon Superheat as calculated by the controller.
dPr  Discharge Pressure as read by the controller.
dSt  Discharge Temperature as read by the controller.
dSA  Discharge Saturaon Temperature as calculated by the controller.
dSH  Discharge Superheat as calculated by the controller.
iP1  First three digits of the IP address.
iP2  Second three digits of the IP address.
iP3  Third three digits of the IP address.
iP4  Fourth three digits of the IP address.
FiR  Current rmware version on the controller.
Remote Display - Setpoints Menu - Single Group
When not in a menu, press and hold until SA is shown.
Press
or to go through the setpoint abbreviations.
Press
to view the current setpoint value. Press or to change the setpoint.
Press and hold to save.
For numerical setpoints, pressing once will change the digit that is being modied.
Press
to return to the previous screen. When viewing a setpoint value, press to return to the previous screen without saving.
Abbrev. Full Name Min Max Default Descripon
SA KE2 SMART ACCESS diS EnA diS
Turn KE2 Smart Access on or o: EnA to enable / diS to
disable KE2 Smart Access.
dHC  diS EnA diS
Turn DHCP mode on or o: EnA to enable / diS to disable
DHCP mode.
SyS  oFF on oFF
Allow rack to run or put into system o: on to run / oFF to
pump down rack and put into system o.
PSP

PRESSURE
0.0 psig 150.0 psig① 25.0 psig② Sucon pressure the controller will work to maintain.
CLA CLEAR ALARMS Press and hold ENTER to clear all acve alarms.
PAS  Press and hold ENTER to reset browser password.
①
R-410A = 300.0 psig, R-744 = 500.0 psig. ② R-744 =250.0 psig
Remote Display - Menus and Parameters
When not in alarm or off, displays Group 1 Suction Pressure.
Abbreviaon Full Name Descripon
oFF System Off All groups are in System Off mode.
oF1 System Off – Group 1 Group 1 is in System Off mode.
oF2 System Off – Group 2 Group 2 is in System Off mode.
