1.3 Model number information
Part Number
General
15.F5.A1G-RL02
2 = software/function V1.72 / CPU v4.3
Unit identifi cation 3 = peak power unit
0 = none installed at the factory

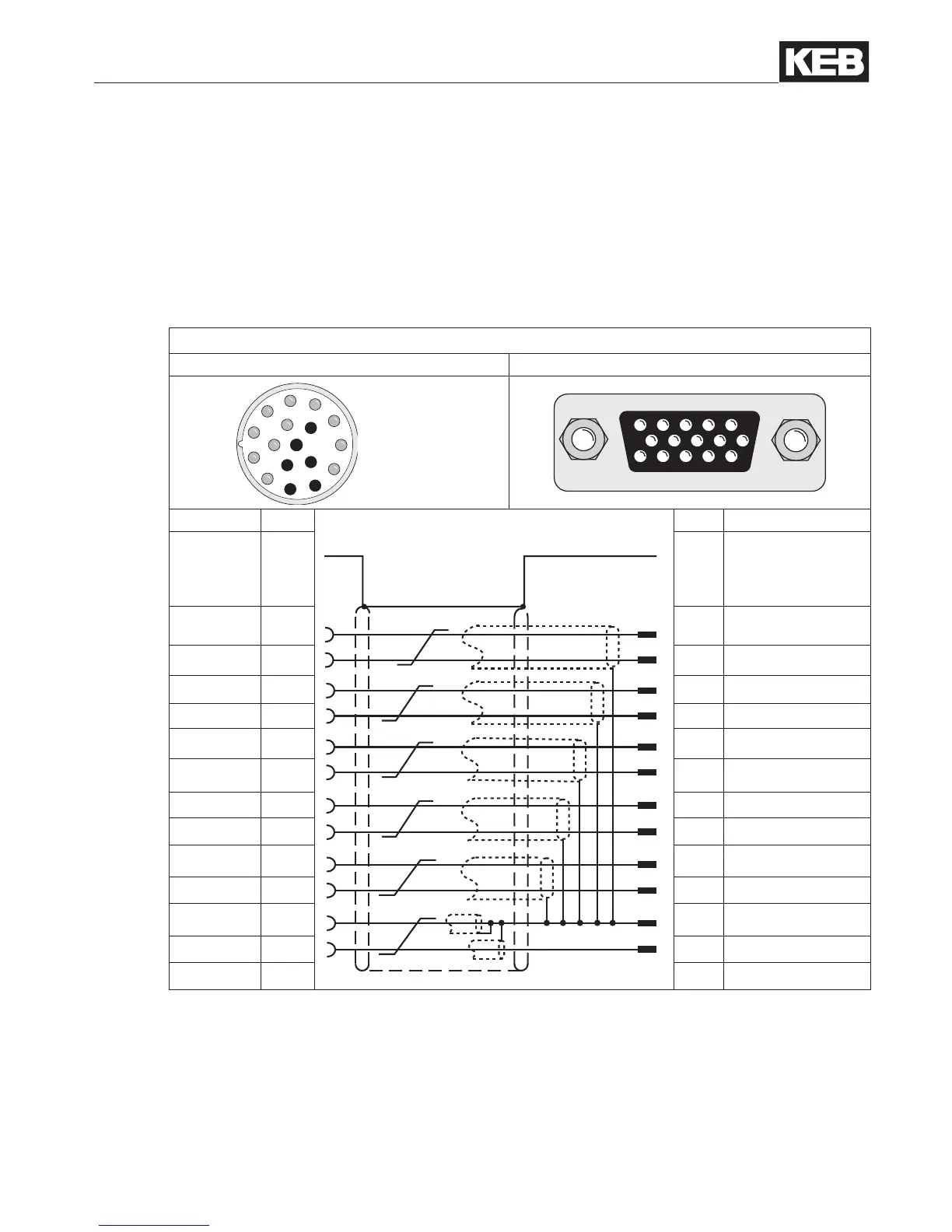

Feedback Card J = HTL input, TTL output
M = SINCOS, TTL output
F = HIPERFACE, TTL output
P = ENDAT, TTL output
V = Sin/Cos-SSI, TTL input
Z = UVW, TTL input
9 = UVW encoder, TTL output
Voltage ident. R = 460V 3 Phase
P = 230V 3 Phase
Housing type E, G, H, R, U,
Accessories 1 = Braking transistor (standard)
3 = Braking transistor and EMI fi lter
Control stage A = Appl- supports all motors in closed
loop speed, torque or position control.
Additionally can operate open-loop
induction motors
Unit Type F5
Unit size 14 = 10 hp 19 = 40 hp 24 = 125 hp
15 = 15 hp 20 = 50 hp 26 = 175 hp
16 = 20 hp 21 = 60 hp
17 = 25 hp 22 = 75 hp
18 = 30 hp 23 = 100 hp
