KEB ACOMBIVERT F5 X3A - 2 Product Description; General; Material Number; Scope of Delivery (Option or Replacement Delivery)

SIN/COS at Channel 1
GB -6
2. Product description

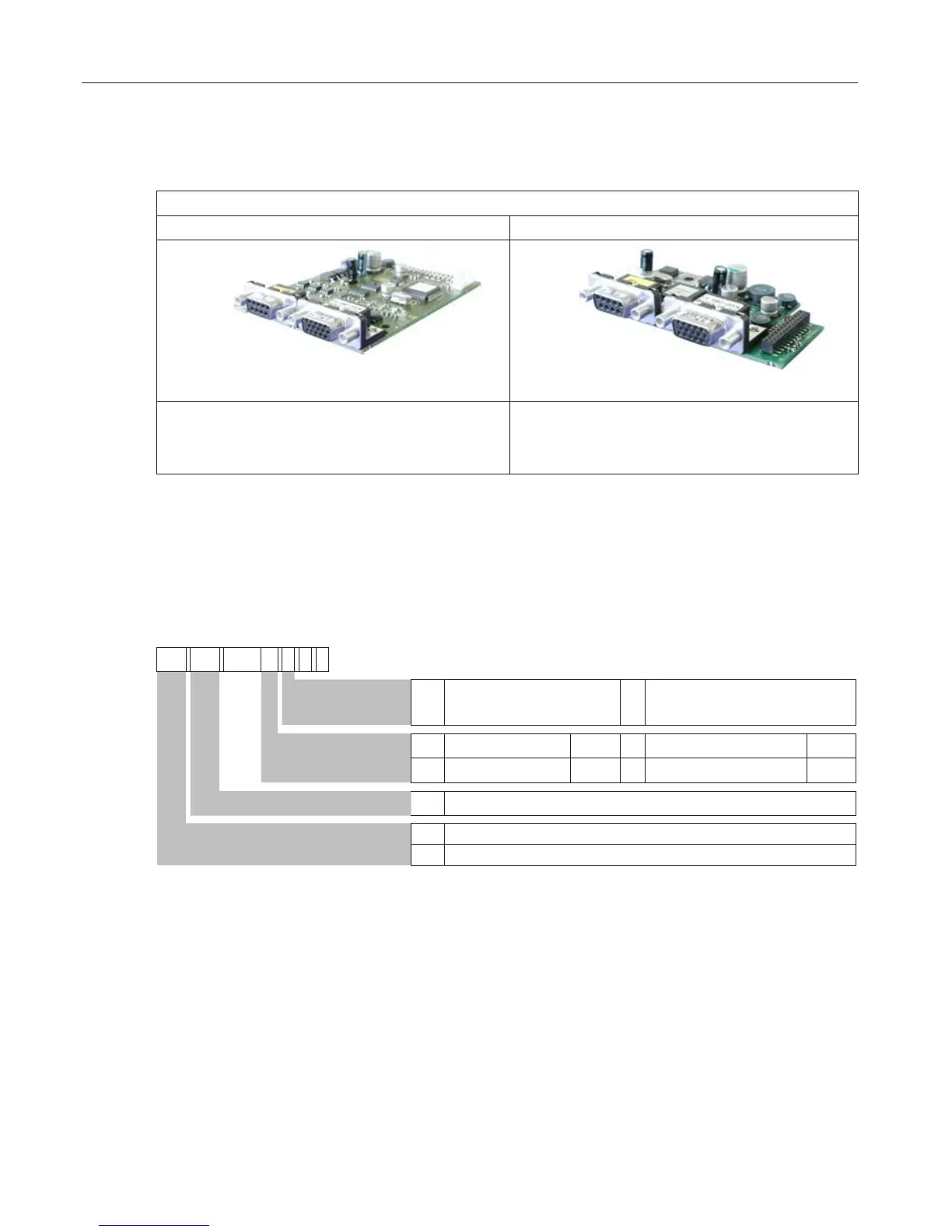

Figure 1: SIN/COS at Channel 1
For housing size G…U For housing size D and E
X3A
Channel 1
X3B
Channel 2
X3A
Channel 1
X3B
Channel 2
X3B X3A
Channel 2 Channel 1
see material number SIN/COS
2.1 General
Each of the interface cards delivered by KEB include two interfaces. As there are numerous
different combinations available each interface will be described by means of separate in-
structions. The instruction comprises the installation of the interface card, the connection
as well as the start-up of a suitable encoder. Further information and the parameter adjust-
ments are described in the application manual for the inverter/servo.
2.2 Material number
xM F5 K8G X X X X
Term of deli-
very
0 installed Z Option, spare part
Interface
X3A
M TTL output 2036 N TTL input 2035
1 SSI-input 2021
F5 Series
applicable for housing size
1M D, E (circuit board 1M.F5.280-xxxx see above)
2M G…U (circuit board 2M.F5.280-xxxx see above)
2.3 Scope of delivery (option or replacement delivery)
• Encoder interface
• two instruction manuals
• xingbolt
• packing material
