KEB COMBIVERT F5

EN - 20
Operation of the Unit
4. Operation of the Unit
4.1 Operation Accessories
4.1.1 With HSP5 cable and without operator
A special cable (part number .00F50C0.-0001) is necessary for the control of the KEB
COMBIVERT without operator. It is connected between the HSP5-interface X4A and a
serial RS232-PC-interface (COM1 or COM2). The operation takes place via the PC-pro-
gram COMBIVIS.
The HSP5-cable has an integrated level converter. The connection of a serial
standard cable would destroy the PC-interface.
4.1.2 Digital operator (part number 00F5060-1100)
As an accessory for the local operation of the KEB COMBIVERT F5 an operator is available.
To prevent malfunctions, the inverter must be brought into nOP status before connecting /
disconnecting the operator (open control release). When starting the inverter, it is always
started with the last stored values or the factory setting.

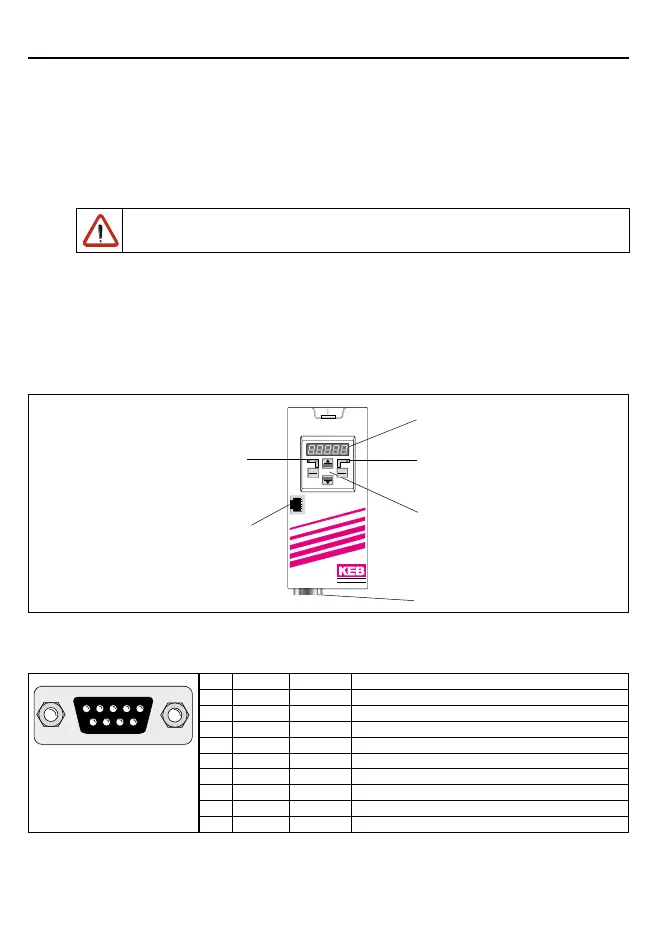

4.1.3 Interface operator (part number 00F5060-2000)
The interface operator corresponds to the functional range of the digital operator. However,
it is enhanced by a serial RS232/485-interface.
A RS232-cable is needed to connect the interface operator with the PC. The assignment
is represented on the following page.
54321
9876
5-digit LED Display
Operating-/Error display
Normal "LED on"
Error "LED blinks"
Double function keyboard
RS232/RS485
(only 00F5060-2000)
Interface control
Transmit "LED on"
(only 00F5060-2000)
START
FUNC.
SPEED
ENTER
F/R
STOP
COMBIVERT
X6C X6D
X6B
HSP5 diagnostic interface
(only 00F5060-2000)
PIN RS485 Signal Meaning
1 - - reserved
2 - TxD transmission signal RS232
3 - RxD receive signal RS232
4 A‘ RxD-A receive signal A RS485
5 B‘ RxD-B receive signal B RS485
6 - VP Voltage supply +5 V (Imax=50 mA)
7 C/C‘ DGND Data reference potential
8 A TxD-A transmission signal A RS485
9 B TxD-B transmission signal B RS485
