IMPORTANT NOTE: When adjusting the idle air mixture screw to baseline
settings DO NOT tighten screw after it “seats”. If the air mixture screw is over
tightened one of two things will occur; the tapered needle will mushroom and not
function, or the needle will break off in the carb body, ruining the slow circuit.
50cc Two Stroke Engine Carburetor
Mechanical Carb Air Cleaner Side Mechanical Carb Left Hand Side
Mechanical Carb Right Hand Side Mechanical Carb Engine Side

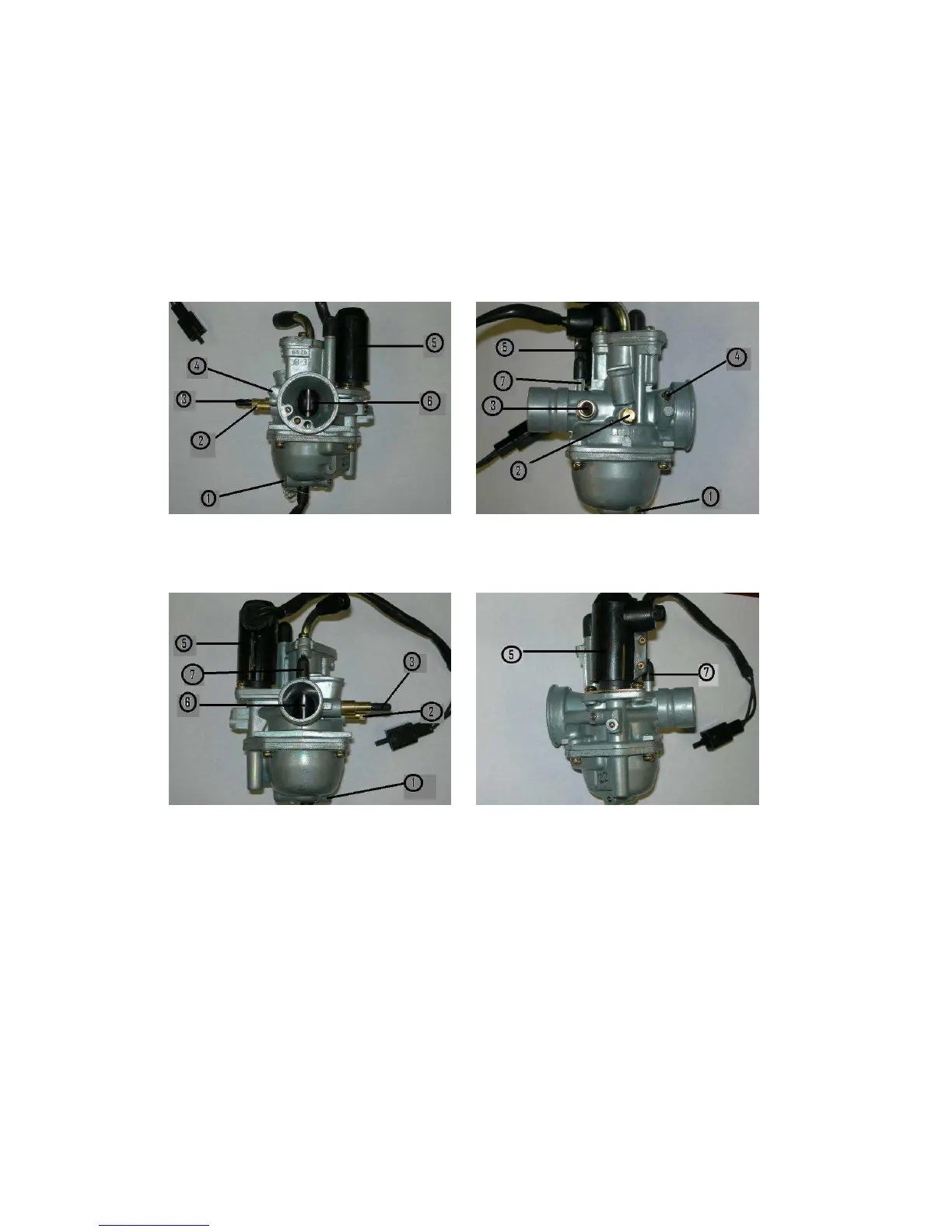

Image Number Key:
1) Float Bowl Drain Bolt
2) Idle Stop Screw
3) Oiling Port
4) Idle Air Mixture Screw
5) Enrichment Valve
6) Intake Slide
7) Vacuum Port
