KEEWAY 50cc Series - CRANKCASE ASSEMBLY

51
reference aligned with contact point at transition gear. A brake spring tool is
recommended for applying tension to kick start spring; USE CAUTION. Immediately
install retaining plate and lock bolt. Install drive belt before installing fixed face.

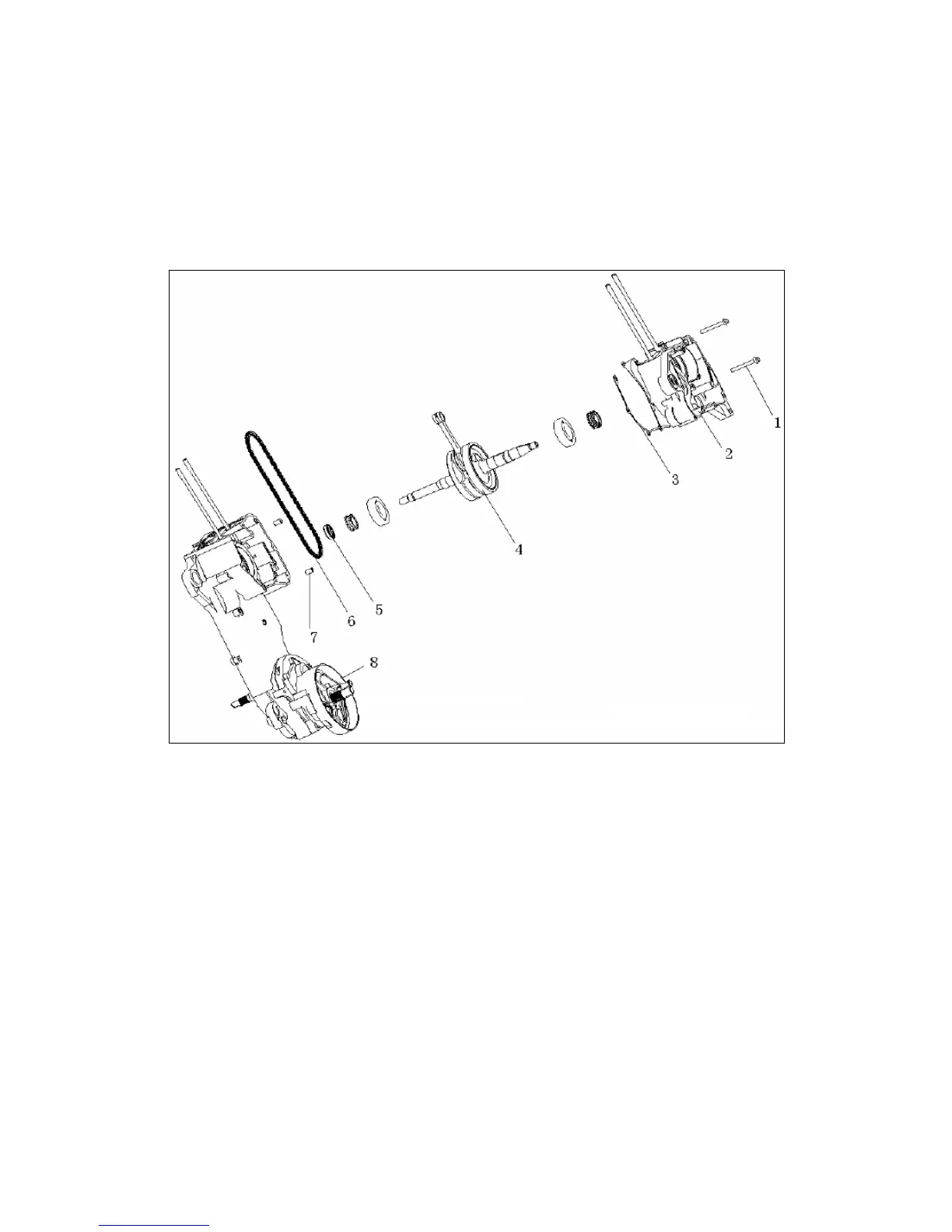

CRANKCASE ASSEMBLY
Removal (remove cylinder
head,cylinder jug, and piston assembly
prior)
Bolts (1)
RH Crankcase assembly (2)
Dowels and gasket (3 & 7)
Crankshaft assembly (4)
Camshaft timing chain (6)
LH Crankcase assembly (8)
Oil seal (5)
Installation
LH Crankcase assembly (8)
Camshaft timing chain (6)
Oil seal (5)
Crankshaft assembly (4)
Dowels and gasket (3 & 7)
RH Crankcase assembly (2)
Bolts (1) Torque: 7-8lbs-ft
