COMPONENT GUIDE

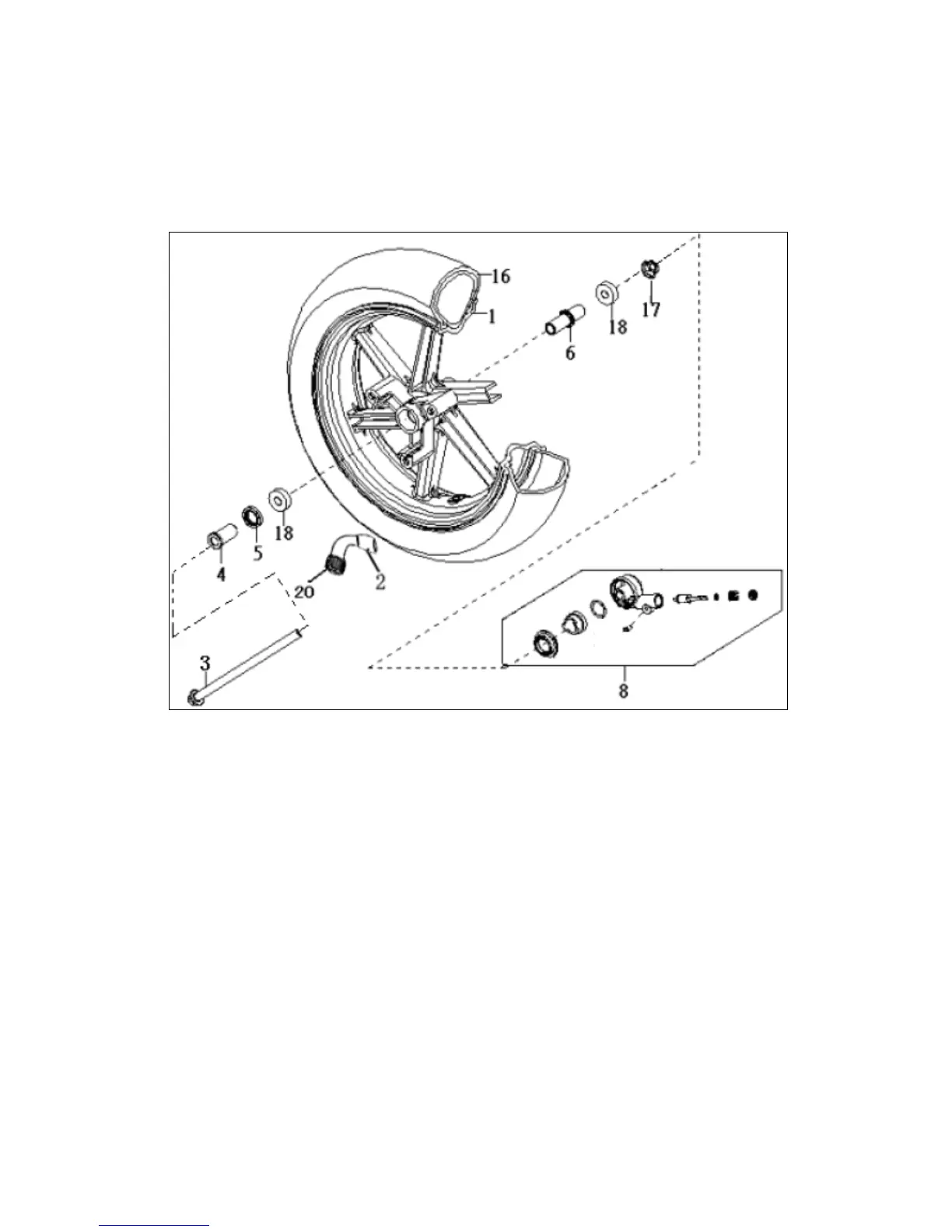

FRONT WHEEL ASSEMBLY
Removal
Axle locknut (17)
Axle (3)
LH Bushing and speedometer gear
assembly (4 & 8)
Front wheel assembly
Seal, bearings, and axle shaft bushing (5,
6, & 18)
Tire (16)
Valve stem and cap (2 & 20)
Installation procedure is reverse of removal.
