KEEWAY 50cc Series User Manual

53
NOTES: Position each bearing with number facing outward, and ensure free movement.
Lightly coat oil seal with oil when installing, and ensure proper direction and fit. Ensure
proper fit and free movement of all gears and pinions. Torque bolts in modified star
pattern to 8lbs-ft.

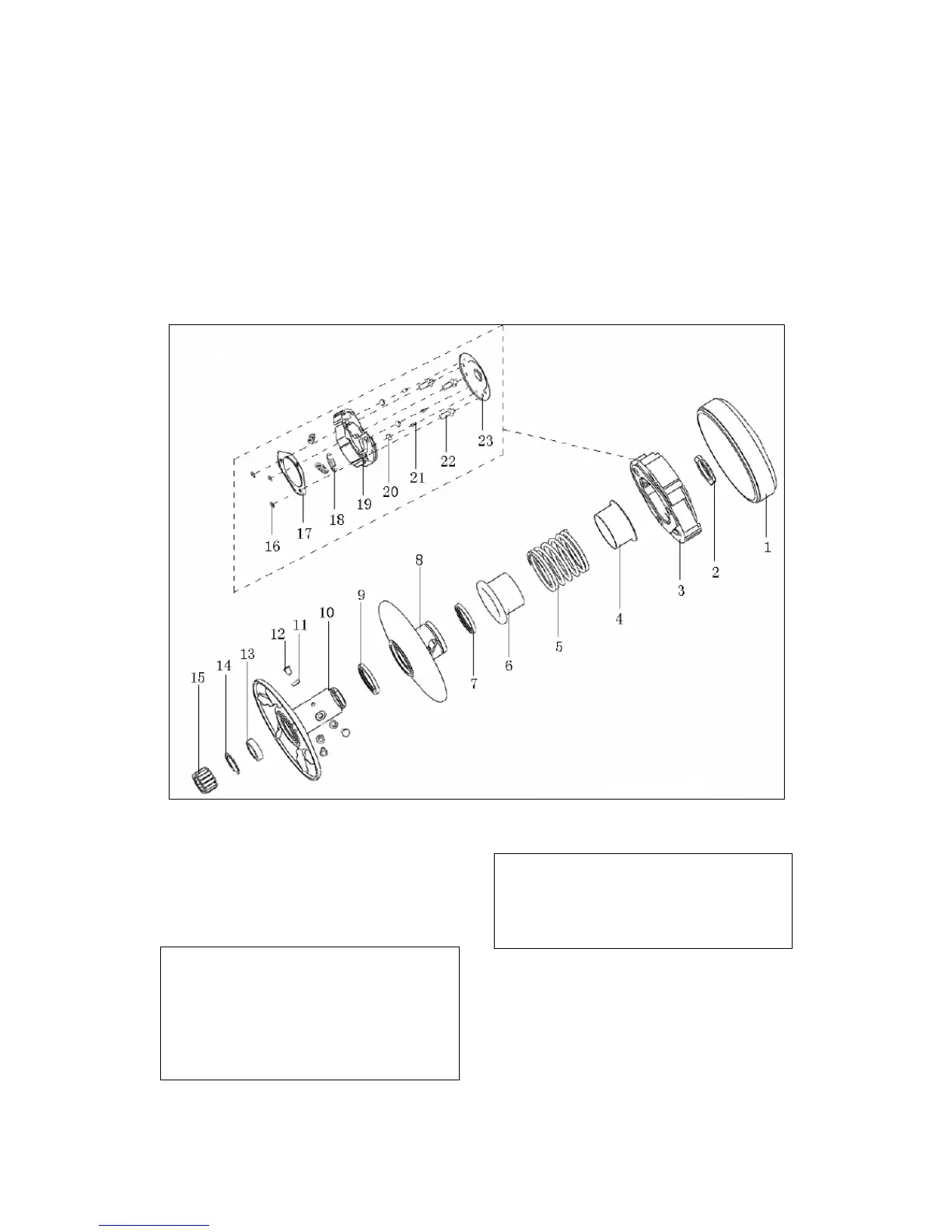

DRIVE WHEEL CLUTCH ASSEMBLY
Removal
Clutch hub, retaining pin and woodruff
key (1, 11, & 12)
Nut, washer, and disk (2, 7, & 8)
Clutch shoe assembly (3)
Clips (16)
Backing plate (17)
Springs and shoes (18 & 19)
Dampers (20)
Limiters and pins (21 & 22)
Front cover (23)
Needle bearing (15)
Spring seat, clip, and roller bearing (4,
13, & 14)
Compression spring and main disk (5 &
10)

KEEWAY 50cc Series Specifications

General

Cooling System	Air-cooled
Fuel System	Carburetor
Ignition	CDI
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Tires Front	120/70-12
Tires Rear	130/70-12
Width	700 mm
Transmission	Automatic
Engine Type	Single-cylinder, 2-stroke
