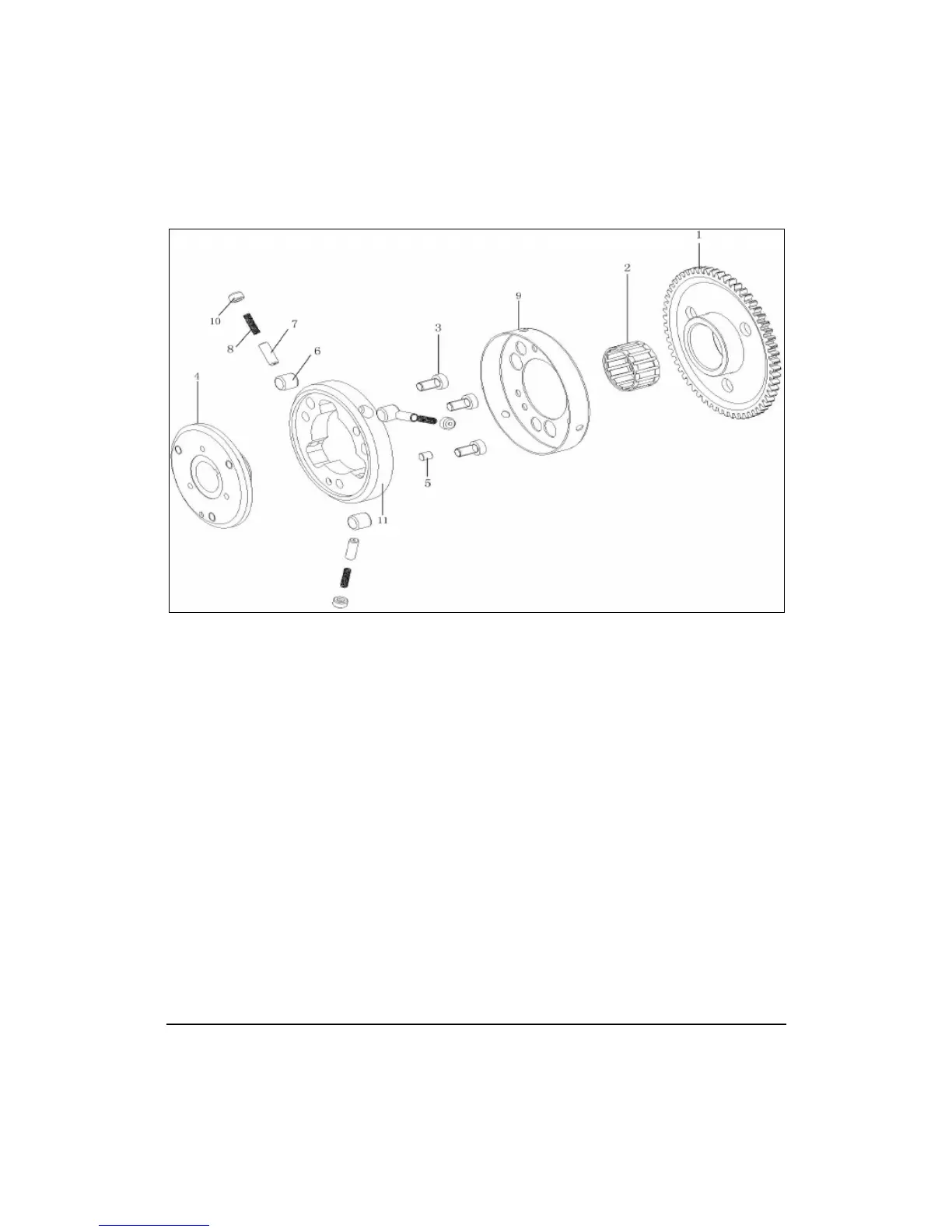

STARTER CLUTCH ASSEMBLY
Removal
Clutch gear (1)
Needle bearing (2)
M6 Screws (3)
Clutch hub (4)
Pin (5)
Rollers, spring and bushing (6, 7, & 8)
Clutch cover (9)
Spring retainer (10)
Clutch body (11)
Installation procedure is reverse of removal.
NOTES: There should be no play in clutch assembly. Ensure proper tension on bolts and
spring retainer. Clutch gears are directional.
