Keithley 2260B-30-36 Programming Manual

GETTING STARTED
13

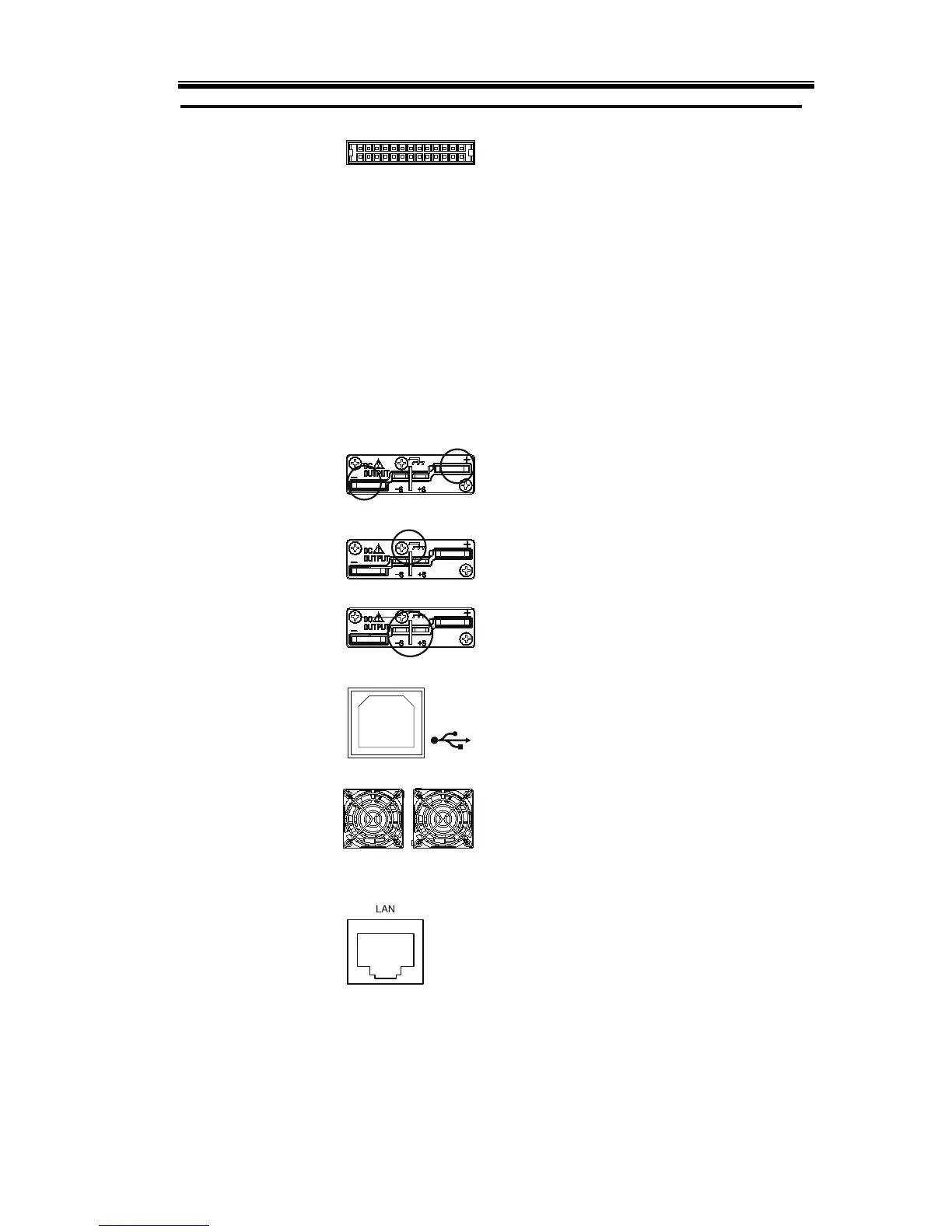

Analog Control
Connector
Standard 26 pin MIL connector
(OMRON XG4 IDC plug).
The analog control connector is
used to monitor current and voltage
output, machine status (OVP, OCP,
OTP etc.), and for analog control of
the current and voltage output.
Use an OMRON XG5 IDC socket as
the mating socket.
Output Terminals
Positive (+) and negative (-) output
terminals.
Chassis ground
Sense (-) and Sense (+) terminals.
USB B port
The USB B port is used for remote
control.
Fans
Temperature controlled fans
Ethernet Port
The Ethernet port is used for remote
control and digital monitoring from
a PC.
